APC SMART-UPS LITHIUM-ION SHORT DEPTH 500VA 120V

Name: APC SMART-UPS LITHIUM-ION SHORT DEPTH 500VA 120V
Brand: APC
SKU: JP4861
Price: 424.42 USD
Availability: InStock

APC

PCN#

JP4861

MFG#

SCL500RM1U

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$424.42

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

1U Rack
mountable
3 Hour Recharge
2.68 Minute Stand
by
120 V Input
120 V AC Output
Sine Wave
USB
LED Display
4 x NEMA 5
15R

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty Information5 year repair or replaceDirectly Connected Equipment Guarantee150000 Lifetime

Shipping Weight: 14 lbs.

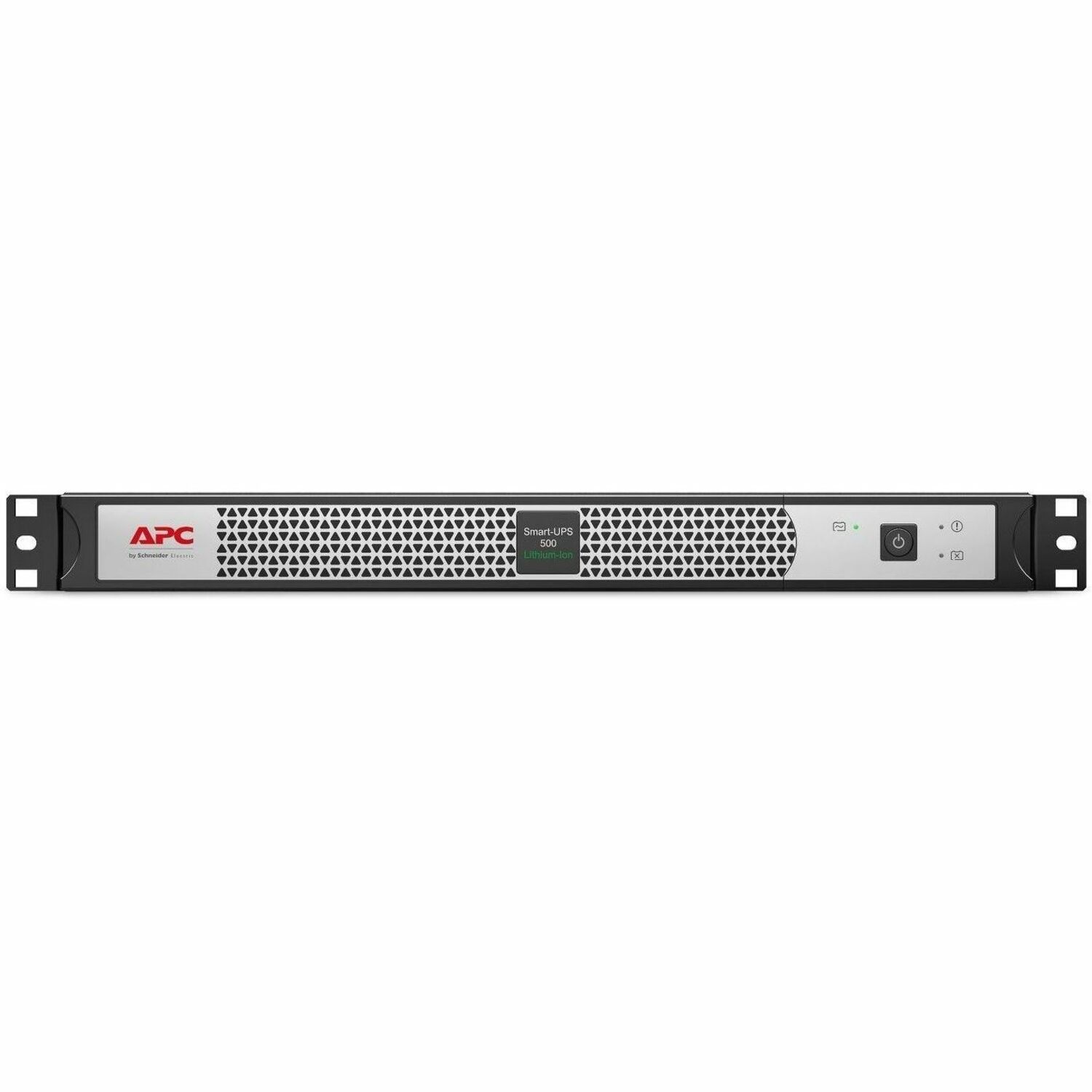

APC by Schneider Electric Smart-UPS 500VA Rack-mountable UPS

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SCL500RM1U
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS
Product Name	Smart-UPS 500VA Rack-mountable UPS
Marketing Information	This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Packaged Quantity	1
Product Type	Line-interactive UPS

Technical Information

Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15P
Receptacle Detail	4 x NEMA 5-15R
Cord Length	6 ft
Transfer Time	10 ms
Application/Usage	Server POS Router Switch Hub Network Device IT Business Critical System

Power Description

Load Capacity (VA)	500 VA
Load Capacity (Watt)	400 W
Input Voltage	120 V
Input Voltage Range	92 V AC - 139 V AC
Output Voltage	120 V AC
Input Frequency	63 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	680 J

Display & Graphics

Display

LED

Management

Alarm

On Battery
Low Battery
Configurable Delay

Controls/Indicators

Status Indicators

LED Indicators:

On Line
On Battery
Replace Battery
Building Wiring Fault

Interfaces/Ports

USB

Yes

Battery Information

Battery Chemistry	Lithium Ion (Li-Ion)
Battery Energy	108 kJ
Backup/Run Time (Full Load)	2.68 Minute
Backup/Run Time (Half Load)	6.33 Minute
Battery Life	10 Year
Typical Battery Recharge Time	3 Hour

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	6561 ft
Maximum Storage Elevation	49212 ft
Storage Relative Humidity	10% - 90%
Sound Emission (A-Weighted)	45 dB(A)

Physical Characteristics

Color Family	Dual Color
Product Color	Black Silver
Height	1.7"
Width	17"
Depth	9.1"
Rack Height	1U
Form Factor	Rack-mountable
Weight (Approximate)	9.22 lb

Miscellaneous

Package Contents	Smart-UPS 500VA Rack-mountable UPS CD with Software Documentation CD Installation Guide Rack Mounting Support Rails USB Cable
Certifications & Standards	cULus\|NOM
Software Included	Powerchute Serial Edition
Green Premium	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SCL500RM1U_ROHS_DECLARATION&p_FileName=SCL500RM1UKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557301627&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557301627&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN
REACH free of SVHC	No
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5 year repair or replace
Directly Connected Equipment Guarantee	150000 Lifetime
