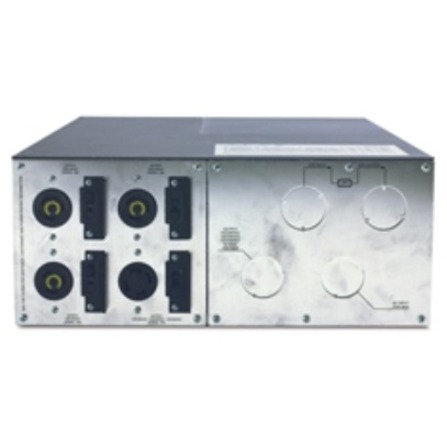

APC 19" Rack-Mountable 100A Bypass Panel

by
APC
PCN#
E40177
MFG#
SBP16KRMP4U-HW
main product photo
fotorama-image
fotorama-image
APC Authorized Dealer
$1,730.80
cps

Extended & Accidental Damage Protection Plans Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 1 x Hard Wire 3
  • wire (2PH + G), 1 x Hard Wire 4
  • wire (2PH+N+G)

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 74 lbs.
APC Service Bypass Panel 200/208/240V Symmetra LX 4-16kVA (1)L14-30R, (3)L5-20R, (1)100A Hardwire
Overview
Tech Specs
Specifications

Manufacturer

Schneider Electric SA

Manufacturer Part Number

SBP16KRMP4U-HW

Manufacturer Website Address

http://www.schneider-electric.com

Brand Name

APC

Product Name

19" Rack-Mountable 100A Bypass Panel

Marketing Information

The APC SBP16KRMP4U-HW is a 208V, 100A maintenance bypass panel designed for seamless integration with Symmetra LX and Smart-UPS systems from 4kVA to 16kVA. It allows safe, uninterrupted power transfer during UPS maintenance or replacement, ensuring continuous operation of critical equipment. The 4U rack-mountable design supports both rack and wall installation, optimizing space in your data center or network room. With hardwired input and output connections, this panel delivers reliable power distribution and easy serviceability. Built to meet industry standards, it helps maximize uptime while supporting APC's sustainibility initiatives.

Product Type

Bypass Switch
Technical Information

Plug/Connector Type

  • Hard Wire 3-wire
  • Hard Wire 4-wire

Receptacles

  • 1 x Hard Wire 3-wire (2PH + G)
  • 1 x Hard Wire 4-wire (2PH+N+G)

Protection Type

Overload
Power Description

Load Capacity (VA)

20 kW

Input Voltage

208 V AC

Output Voltage

  • 120 V AC
  • 200 V AC
  • 208 V AC

Current

100 A
Physical Characteristics

Color Family

Black

Product Color

Black

Form Factor

Rack-mountable

Mounting Location

Front

Mounting Preference

Lower

Rack Height

4U

Height

7"

Width

17"

Depth

26.5"

Weight (Approximate)

51.10 lb
Miscellaneous

For Country/Region

United States

Package Contents

  • 19" Rack-Mountable 100A Bypass Panel
  • Installation guide
  • Rack mounting brackets
  • User manual

    • Certifications & Standards

    		CSA|GOST

    Product Take Back Program

    		Yes

    RoHS Exemption Information

    		https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SBP16KRMP4U-HW_ROHS_DECLARATION&p_FileName=SBP16KRMP4U-HWKIT_ROHS_DECLARATION_US.pdf

    REACH Declaration URL

    		https://download.schneider-electric.com/files?p_Doc_Ref=SBP16KRMP4U-HW_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)

    EU RoHS Declaration URL

    		https://download.schneider-electric.com/files?p_Doc_Ref=SBP16KRMP4U-HW_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)

    WEEE Statement

    		The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

    Environmentally Friendly

    		Yes

    Environmental Compliance

    		Restriction of Hazardous Substances (RoHS)
    Warranty

    Limited Warranty

    		2 Year
