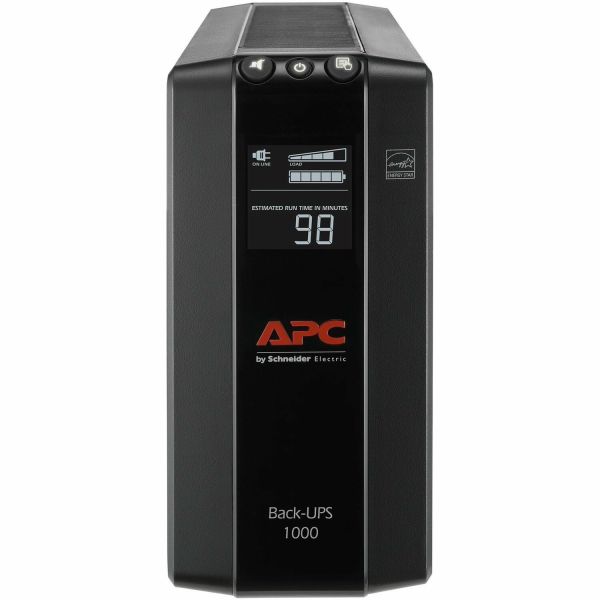

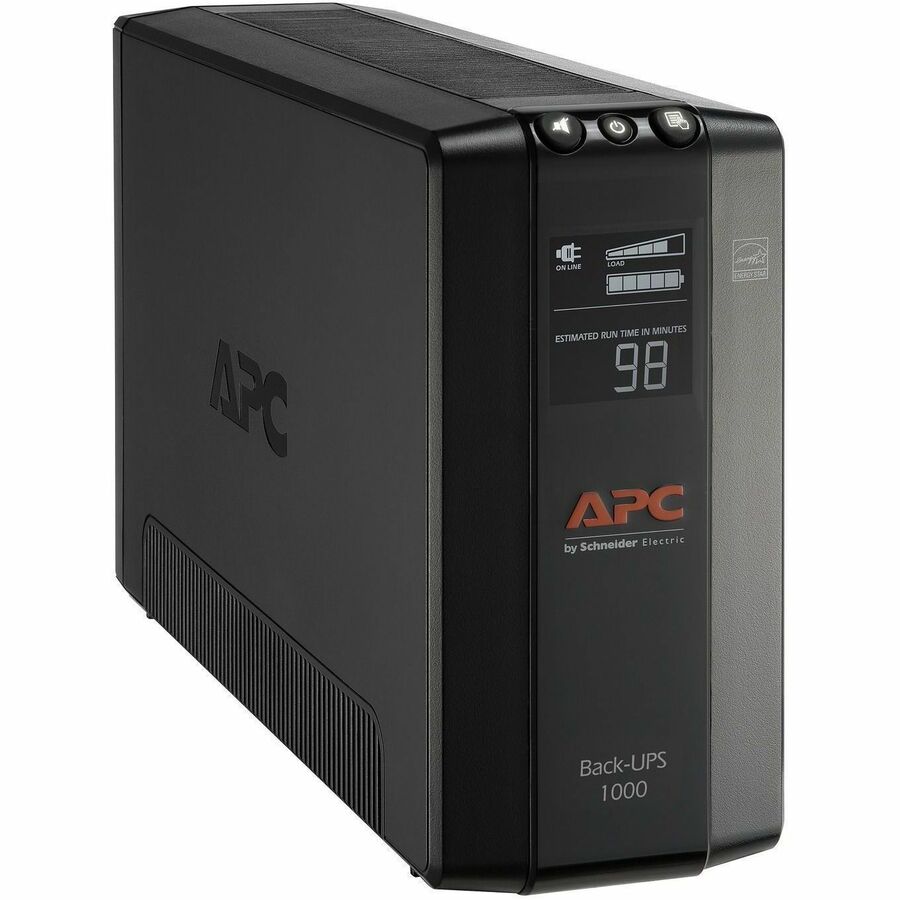

APC by Schneider Electric Back UPS Pro BX1000M, Compact Tower, 1000VA, AVR, LCD, 120V

Name: APC by Schneider Electric Back UPS Pro BX1000M, Compact Tower, 1000VA, AVR, LCD, 120V
Brand: APC
SKU: 8U9551
Price: 169.82 USD
Availability: InStock

APC

PCN#

8U9551

MFG#

BX1000M

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$169.82

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

Tower
AVR
12 Hour Recharge
4.30 Minute Stand
by
120 V Input
120 V AC Output
Stepped Approximated Sine Wave
4 x NEMA 5
15R Surge, 4 x NEMA 5
15R
8 x Battery/Surge Outlet

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information3 years repair or replaceDirectly Connected Equipment Guarantee250000 Lifetime

Shipping Weight: 18 lbs.

APC by Schneider Electric Back UPS Pro BX1000M, Compact Tower, 1000VA, AVR, LCD, 120V

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	BX1000M
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Back-UPS Pro
Product Name	Back UPS Pro BX1000M, Compact Tower, 1000VA, AVR, LCD, 120V
Marketing Information	Protect computers, wireless routers, IOT devices, and security systems with the APC Back-UPS Pro Compact 1000VA. APC Back-UPS Pro Compact provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. This compact tower UPS is designed for workstations, monitors and network devices. Automatic Voltage Regulation (AVR) instantly corrects high/low voltage fluctuations so connected devices receive consistent power. The APC compact tower UPS is significantly smaller and lighter than other tower models, allowing for convenient use and installation while still providing quality power protection. With 8 outlets, this desktop UPS (uninterruptible power supply) provides seamless battery power to connected electronics. The 600w capacity is ideal for workstations and additional electronics, keeping you connected and productive during power fluctuations. Use the three soft-touch buttons on the front to easily configure settings. Included PowerChute software is available to set up automatic graceful shutdown of a connected PC in the event of an extended power outage. Audible alarms provide notification of changing utility power and UPS conditions. Audible alarms can be muted. The LCD Display provides details concerning power-load of connected devices, battery runtime based on connected devices, the power level of the battery and more. 2 RJ-45 data ports are in the back to protect DSL, modem or fax lines from potentially harmful power surges. 2 coaxial ports are also in the back of the UPS for additional protection. This computer backup offers lifetime guaranteed surge protection with a 250,000 equipment protection policy. Package Contains UPS, USB cable and user manual
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R

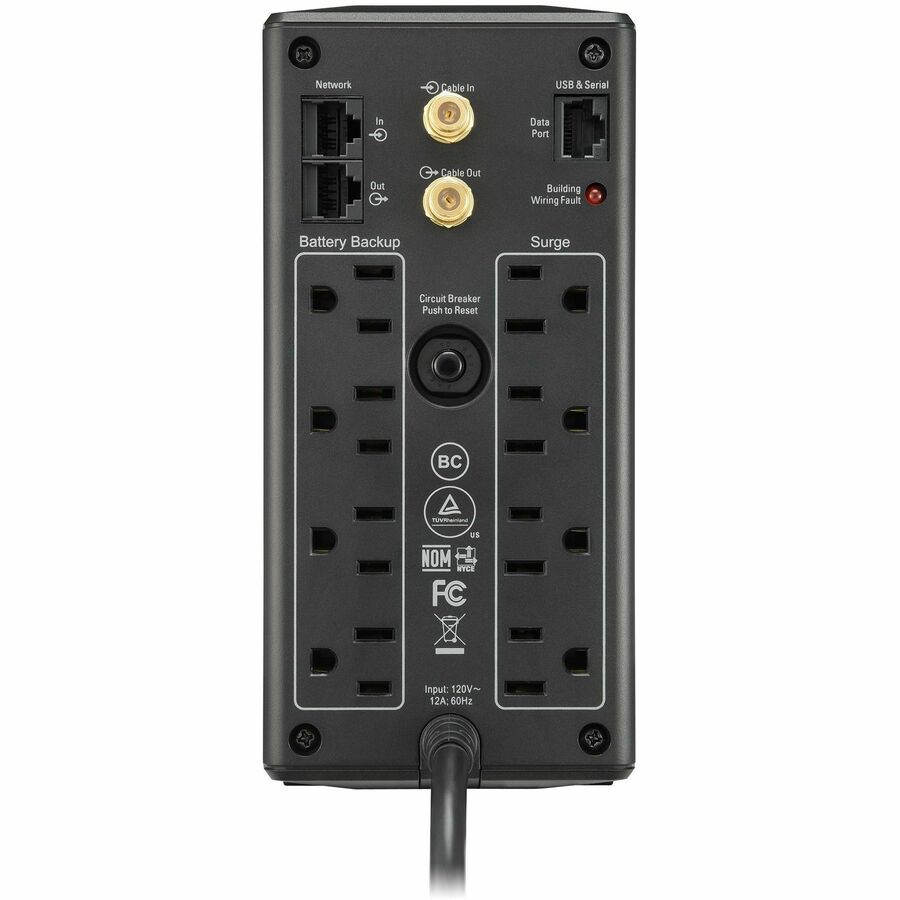

Receptacle Detail	4 x NEMA 5-15R Surge 4 x NEMA 5-15R
Number of Battery & Surge Outlets	8
Number of Surge-only Outlets	4
Dataline Protection	Coax RJ-45
Cord Length	6 ft
Transfer Time	10 ms
Application/Usage	Computer Electronic Equipment Router Modem Storage Device Gaming Console Home Business

Power Description

Load Capacity (VA)	1000 VA
Load Capacity (Watt)	600 W
Input Voltage	120 V
Input Voltage Range	88 V AC - 139 V AC
Input Current	15 A
Output Voltage	120 V AC
Input Frequency	60 Hz
Output Frequency	60 Hz
Waveform Type	Stepped Approximated Sine Wave
Surge Energy Rating	1103 J

Management

Alarm

On Battery
Low Battery
Overload

Controls/Indicators

Status Indicators

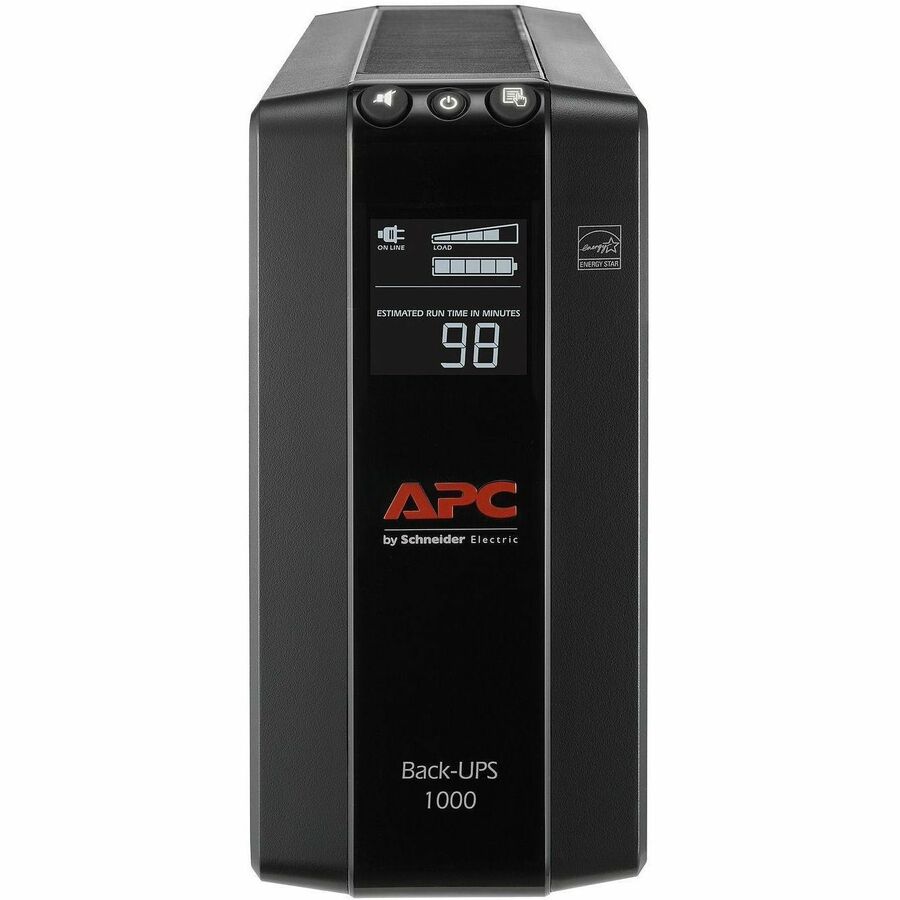

LCD Status Display:

UPS status
Load and battery bar graphs

Interfaces/Ports

USB (HID Compliant) Port

Yes

Battery Information

Number of Batteries	1
Battery Characteristics	Maintenance-free, Sealed, Leak-proof
Battery Chemistry	Lead Acid
Battery Energy	504 kJ
Backup/Run Time (Full Load)	4.30 Minute
Backup/Run Time (Half Load)	13.50 Minute
Typical Battery Recharge Time	12 Hour
Hot Swappable	Yes
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Operating Humidity	0% - 95%
Storage Relative Humidity	0% - 95%
Sound Emission (A-Weighted)	45 dB(A)
Thermal Dissipation	14.21 W

Physical Characteristics

Color Family	Black
Product Color	Black

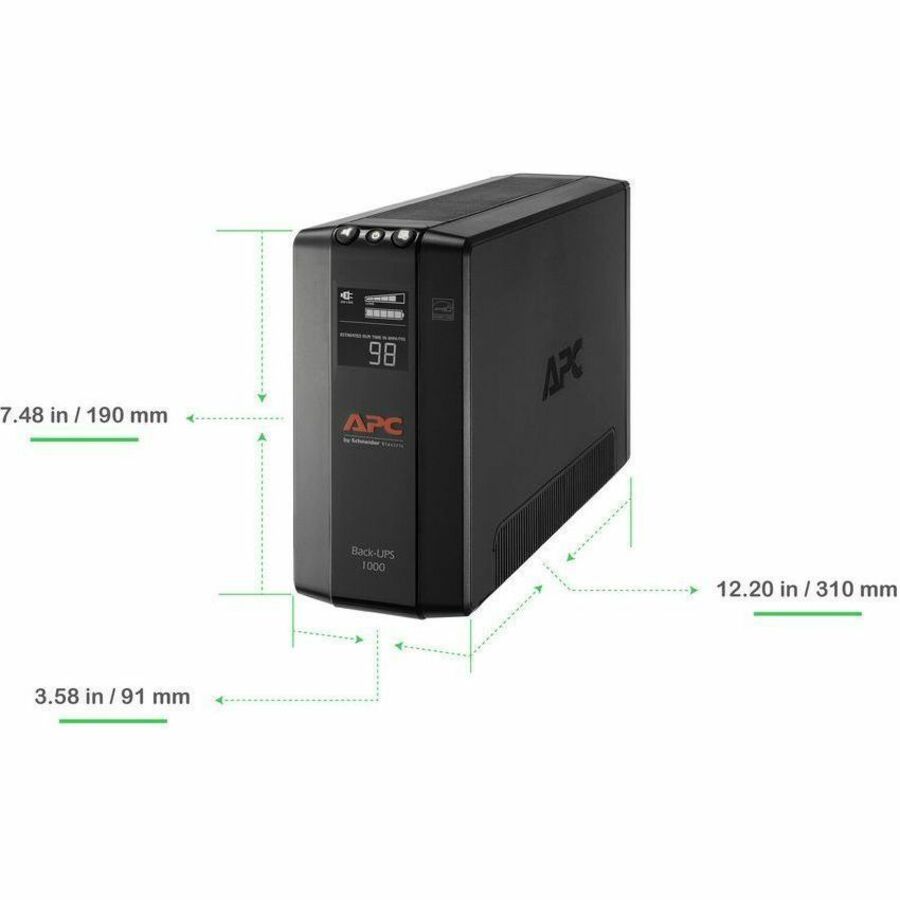

Height	7.5"
Width	3.6"
Depth	12.2"
Form Factor	Tower
Weight (Approximate)	15.87 lb

Miscellaneous

Package Contents	Back UPS Pro BX1000M, Compact Tower, 1000VA, AVR, LCD, 120V USB cable User manual
Certifications & Standards	California (CEC) Battery Charger\|ENERGY STAR V2.0 (USA)\|TUV C-US certified
Energy Star	Yes
Green Premium	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=BX1000M_ROHS_DECLARATION&p_FileName=BX1000MKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465936684&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465936684&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712010_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712010_EN
California Proposition 65 Warning	"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
Energy Star URL	https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC	No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace
Directly Connected Equipment Guarantee	250000 Lifetime
