APC by Schneider Electric Rack PDU 9000 Switched, ZeroU, 16A, 230V, (21) C13 & (3) C19, IEC309 Cord

Name: APC by Schneider Electric Rack PDU 9000 Switched, ZeroU, 16A, 230V, (21) C13 & (3) C19, IEC309 Cord
Brand: APC
SKU: 8RP380
Price: 1323.62 USD
Availability: InStock

APC

PCN#

8RP380

MFG#

APDU9959EU3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,323.62

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Switched
IEC 60309 (2P+E) 16A
21 x IEC 60320 C13, 3 x IEC 60320 C19
230 V AC
0U
Horizontal/Vertical/Toolless
Rack
mountable
Tower

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 19 lbs.

APC by Schneider Electric Rack PDU 9000 Switched, ZeroU, 16A, 230V, (21) C13 & (3) C19, IEC309 Cord

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	APDU9959EU3
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	NetShelter
Product Series	Switched
Product Name	Rack PDU 9000 Switched, ZeroU, 16A, 230V, (21) C13 & (3) C19, IEC309 Cord

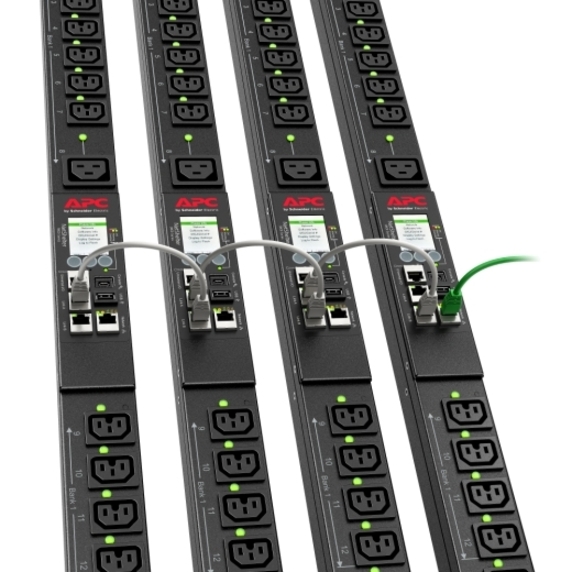

Marketing Information	With Industry leading reliability, manageability, and security, APC Switched Rack PDU's provide advanced load management plus on/off outlet level power cycling and sequencing control. Switched Rack PDUs enable advanced, customizable power control and active monitoring for datacenter and edge environments. Remote outlet level control allows on/off power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets to reduce downtime. Outlet power sequencing and grouping allow users to specify the order of device power up or down to avoid circuit overload due to inrush current and/or load shed to conserve energy. Power metering provides real-time remote monitoring of connected loads with alarms to warn of potential overloads. Users can access, configure, and control Switched Rack PDUs through secure Web or SNMP and are fully compatible with EcoStruxure IT. New 9000 series Switched Rack PDUs include Gigabit ethernet, 1% Metering accuracy, 60C Operating temperature (select models) with new C13/C15 and C19/C21 hybrid outlets, ability to share 1 network port across 32 PDUs, and enhanced cybersecurity.
Product Type	PDU

Technical Information

PDU Type	Switched
Plug/Connector Type	IEC 60309 (2P+E) 16A
Plug/Connector Detail	1 x IEC 60309 (2P+E) 16A
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	21 x IEC 60320 C13 3 x IEC 60320 C19
Protection Type	Overload Protection Circuit Protection
Locking Receptacles	Cord Retention Bracket

Power Description

Input Voltage	230 V AC
Input Voltage Range	220 V AC - 240 V AC
Output Voltage	230 V AC
Power Rating (VA)	3700 VA
Input Current	16 A

Management

Web
SNMP
Telnet

Physical Characteristics

Mounting Orientation	Horizontal/Vertical/Toolless
Mount Type	Rack-mountable
Form Factor	Tower
Rack Height	0U
Height	70.6"
Width	2.2"
Depth	1.8"
Weight (Approximate)	12.37 lb

Miscellaneous

Package Contents	Rack PDU 9000 Switched, ZeroU, 16A, 230V, (21) C13 & (3) C19, IEC309 Cord Installation guide Locking input power cord Rack mounting brackets Safety guide
Country of Origin	India

Warranty

Limited Warranty

2 Year
