APC by Schneider Electric NetShelter 9000 24-Outlet PDU

Name: APC by Schneider Electric NetShelter 9000 24-Outlet PDU
Brand: APC
SKU: 8RP378
Price: 1291.78 USD
Availability: InStock

APC

PCN#

8RP378

MFG#

APDU9941

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,291.78

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Switched
NEMA L6
30P
21 x IEC 60320 C13/C15, 3 x IEC 60320 C19/C21
200 V, 208 V
Overload Protection
Network (RJ
45)
10 ft Cord Length
0U
Rack
mountable
Tower

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information3 years repair or replace

Shipping Weight: 22 lbs.

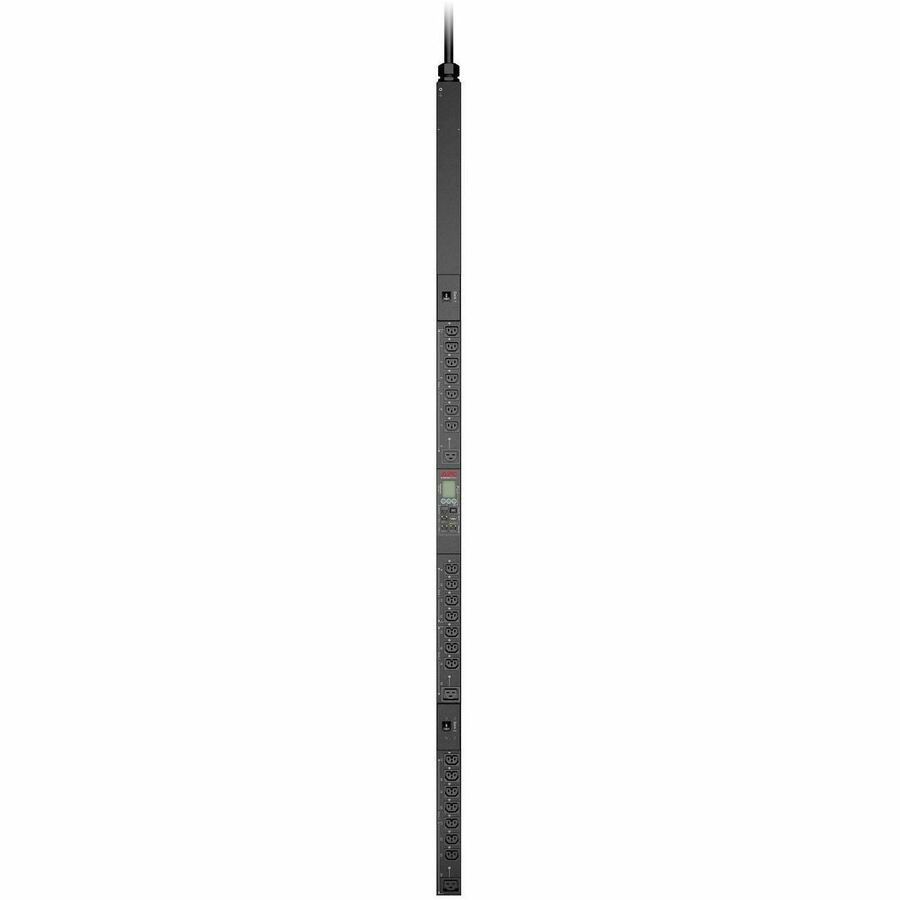

APC by Schneider Electric NetShelter 9000 24-Outlet PDU

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	APDU9941
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Series	9000
Product Name	NetShelter 9000 24-Outlet PDU

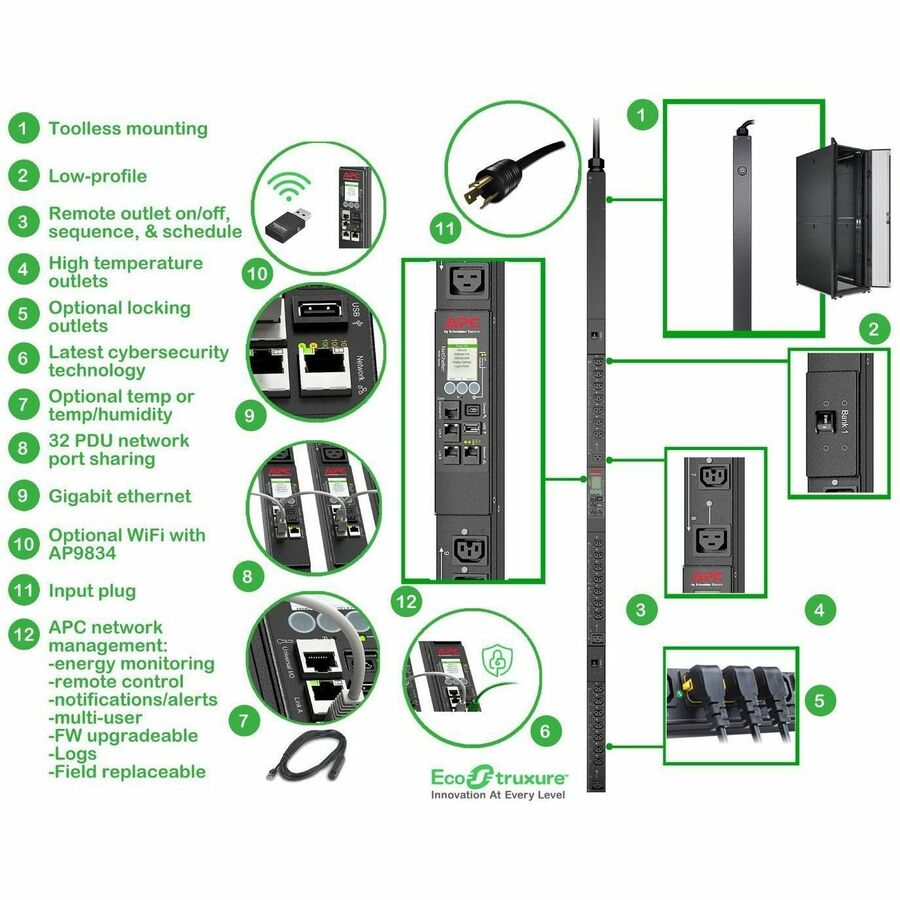

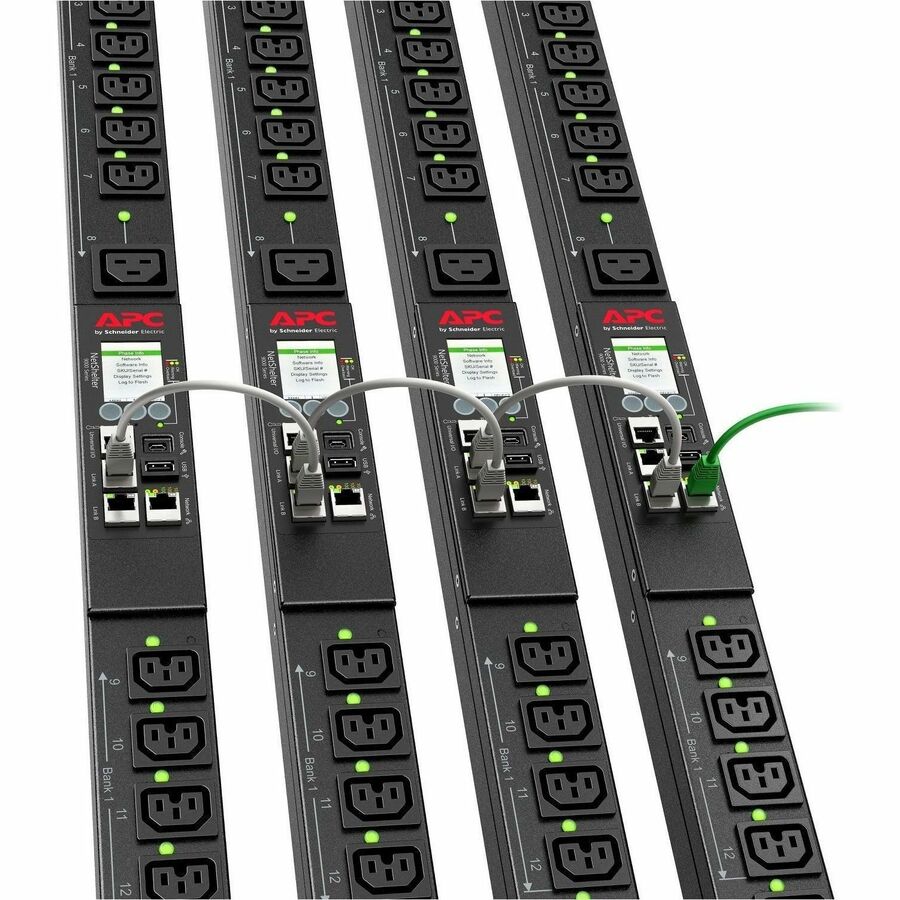

Marketing Information	The APC Switched Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The APDU9941 offers advanced load management combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management The 0U PDU includes a NEMA L6-30P input plug with 3 05m (10 ft) cord, (21) IEC 60320 C13/C15 and (3) IEC 60320 C19/C21 hybrid outlet receptacles The hybrid outlets allow 60°C operating temperature at full load, are compatible with standard C14 and C20 power cords, and are future-proofed for new C16 and C21 power cords required for higher temperature rated devices The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through Network Management Card and can be accessed, configured, and managed remotely via Web, SNMP and Command Line Interface Color user-interactive LCD interface details current, real power, voltage, and energy measurements for local user access The outlet level control allows power on/off functionality for power recycling/reboot of remote equipment and restricts unauthorized use of individual outlets The Switched Rack PDU includes a temperature/humidity sensor port, locking IEC outlets when used with locking power cords, low-profile circuit breakers and USB port for local Firmware updates The rack PDU supports daisy-chain of up to 32 PDUs on a single IP address, thereby reducing networking cost The rack PDU comes with a standard three-year warranty
Product Type	PDU

Technical Information

PDU Type	Switched

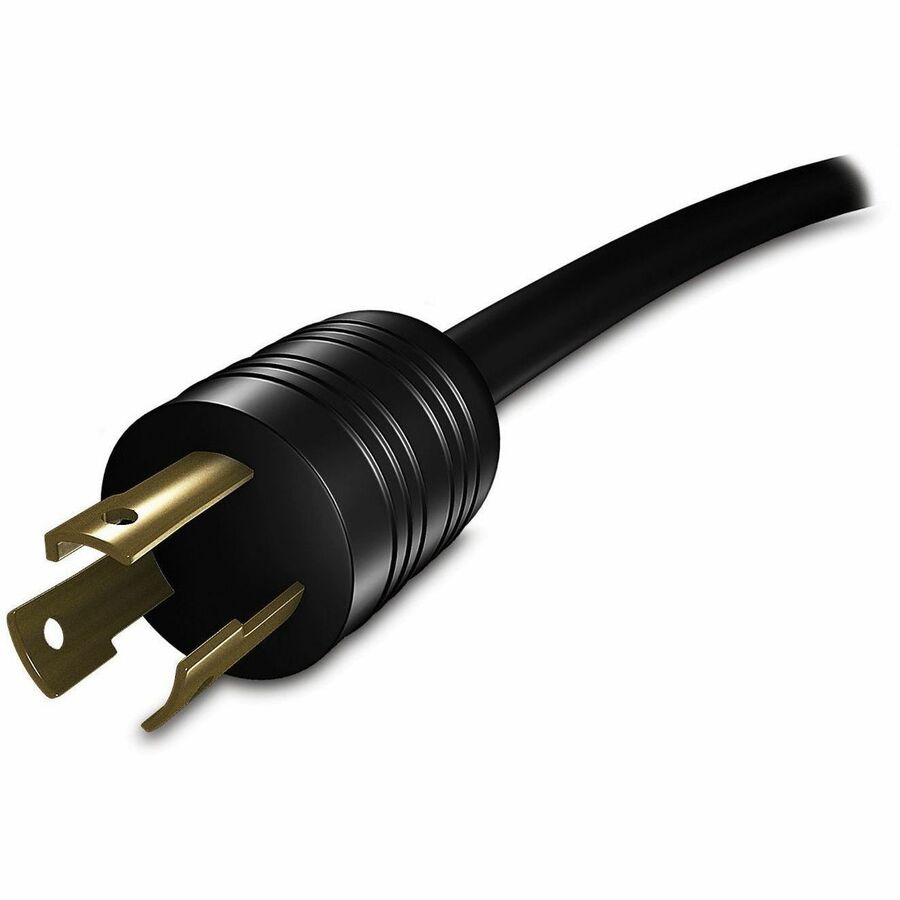

Plug/Connector Type	NEMA L6-30P
Receptacle Type	IEC 60320 C19/C21 IEC 60320 C13/C15
Receptacle Detail	21 x IEC 60320 C13/C15 3 x IEC 60320 C19/C21
Protection Type	Overload Protection

Power Description

Input Voltage	200 V 208 V
Input Voltage Range	200 V AC - 240 V AC
Output Voltage	200 V AC 208 V AC
Power Rating (VA)	4992 VA
Power Rating (Watt)	5000 W
Input Current	30 A

Management

Web
SNMP
Telnet

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Mount Type	Rack-mountable
Form Factor	Tower
Rack Height	0U
Cord Length	10 ft
Height	72"
Width	2.2"
Depth	1.8"
Weight (Approximate)	18.74 lb

Miscellaneous

Package Contents	NetShelter 9000 24-Outlet PDU Installation guide Rack mounting brackets Safety guide
Certifications & Standards	cUL Listed\|FCC part 15 class A\|PSE
Green Premium	Yes
REACH free of SVHC	No
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU9941_ROHS_DECLARATION&p_FileName=APDU9941KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557330941&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557330941&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin	India
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace
