APC by Schneider Electric Switched Rack 32-Outlet PDU

by
APC
PCN#
6D3549
MFG#
AP8966

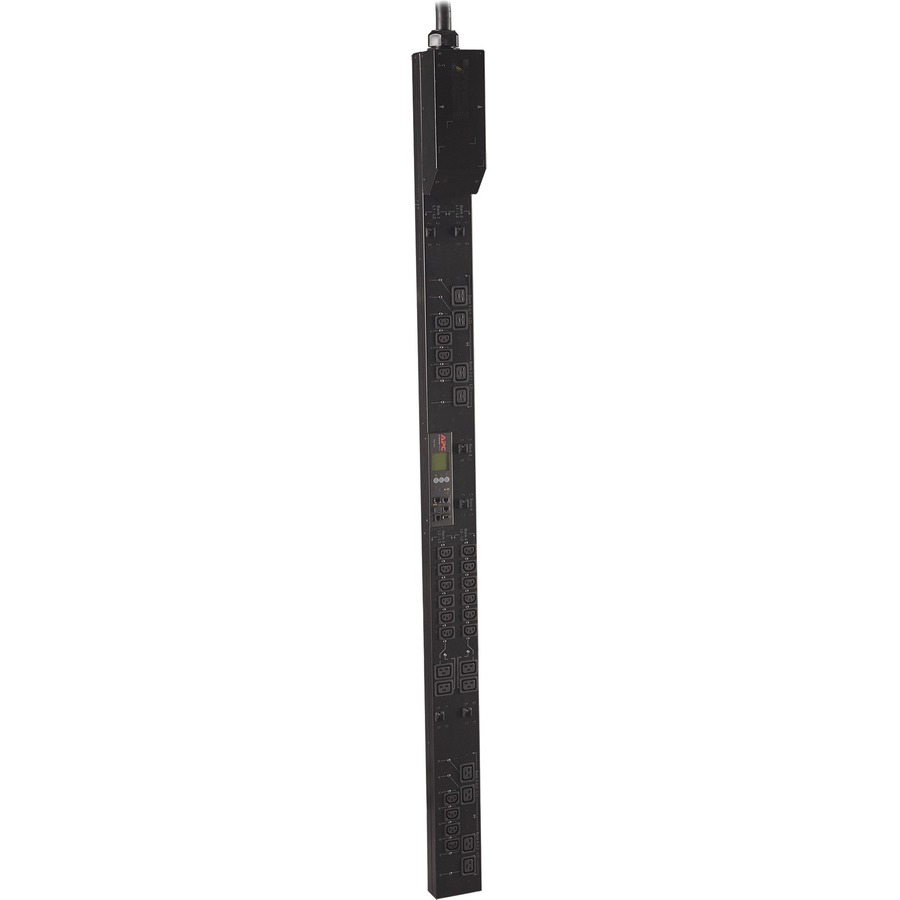

main product photo
fotorama-image
fotorama-image
fotorama-image
fotorama-image
APC Authorized Dealer
$3,053.72
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Switched
  • IEC 60309 3P+PE 60A
  • 20 x IEC 60320 C13, 12 x IEC 60320 C19

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 44 lbs.
APC by Schneider Electric Switched Rack 32-Outlet PDU
Overview
Tech Specs
Specifications

Manufacturer

Schneider Electric SA

Manufacturer Part Number

AP8966

Manufacturer Website Address

http://www.schneider-electric.com

Brand Name

APC by Schneider Electric

Product Line

Switched Rack

Product Name

Switched Rack 32-Outlet PDU

Marketing Information

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.

Product Type

PDU
Technical Information

PDU Type

Switched

Plug/Connector Type

IEC 60309 3P+PE 60A

Plug/Connector Detail

1 x IEC 60309 3P+PE 60A

Receptacle Type

  • IEC 60320 C13
  • IEC 60320 C19

Receptacle Detail

  • 20 x IEC 60320 C13
  • 12 x IEC 60320 C19

Protection Type

Overload Protection
Power Description

Input Voltage

230 V AC

Output Voltage

208 V AC

Power Rating (VA)

17.30 kVA

Input Current

60 A
Management

Management

  • SNMP
  • Telnet
Physical Characteristics

Mount Type

Rack-mountable

Rack Height

0U

Height

72"

Width

2.2"

Depth

2"

Weight (Approximate)

35 lb
Miscellaneous

Package Contents

  • Switched Rack 32-Outlet PDU
  • Installation guide
  • Rack mounting brackets
  • Safety guide
  • Serial configuration cable

    • Environmentally Friendly

    		Yes
    Warranty

    Limited Warranty

    		2 Year
