APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.3kW, 240V, (30) C13 & (12) C19

Name: APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.3kW, 240V, (30) C13 & (12) C19
Brand: APC
SKU: PR7224
Price: 2206.74 USD
Availability: InStock

APC

PCN#

PR7224

MFG#

AP8887

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,206.74

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

Metered
IEC 60309 30A 3P+N+E
30 x IEC 60320 C13, 12 x IEC 60320 C19
400 V
17.30 kW
Overload Protection
5.97 ft Cord Length
0U
Vertical
Rack
mountable
Tower

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 15 lbs.

APC NetShelter Metered Rack PDU, 2G, 0U, 17.3kW, 240V, 30 C13 and 12 C19 outlets

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AP8887
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	Metered Rack
Product Name	Rack PDU 2G, Metered, ZeroU, 17.3kW, 240V, (30) C13 & (12) C19
Marketing Information	APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency
Packaged Quantity	1 Each
Product Type	PDU

Technical Information

PDU Type	Metered

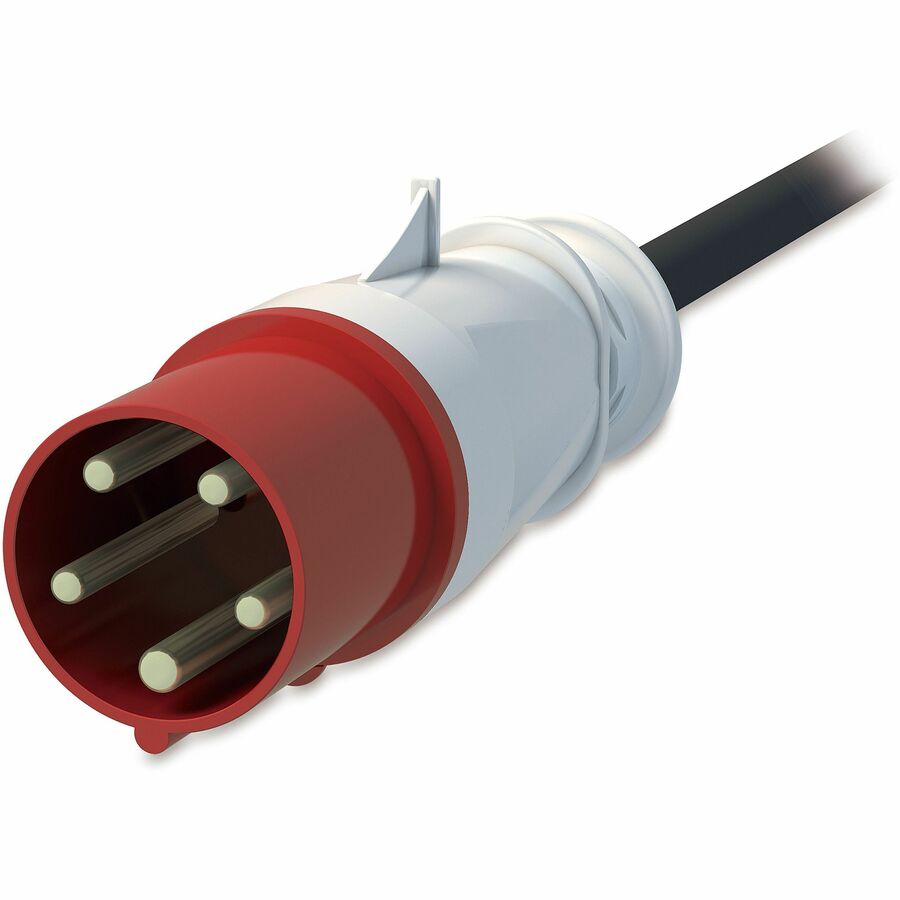

Plug/Connector Type	IEC 60309 30A 3P+N+E
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	30 x IEC 60320 C13 12 x IEC 60320 C19
Protection Type	Overload Protection

Power Description

Input Voltage	400 V
Output Voltage	240 V AC
Power Rating (VA)	17.30 kVA

Management

Protocols:

SNMP
Telnet
Web

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Vertical
Mounting Preference	No Preference
Mount Type	Rack-mountable
Placement	Side
Form Factor	Tower
Rack Height	0U
Number of Cord/Cable	1
Cord Length	5.97 ft
Height	72"
Width	2.2"
Depth	2"
Weight (Approximate)	21.16 lb

Miscellaneous

For Country/Region	United States
Package Contents	Rack PDU 2G, Metered, ZeroU, 17.3kW, 240V, (30) C13 & (12) C19 Installation guide Rack mounting brackets Safety guide Serial configuration cable
Additional Information	Input Connections: IEC 309 30A 3P+N+E
Certifications & Standards	cUL Listed\|UL Listed\|VCCI Class A
Product Take Back Program	No
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8887_ROHS_DECLARATION&p_FileName=AP8887KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP8887_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP8887_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1712014EN&p_File_name=ENVPEP1712014_V2.pdf
End of Life Manual Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1712014_EN&p_File_name=ENVEOLI1712014_EN.pdf
Country of Origin	India
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
Reach Compliance Date	12/10/2025
Halogen Content Performance	Product contains halogen above thresholds
Sustainable Packaging	No
Packaging Contains Recycled Cardboard	Yes
Minimum Percentage of Recycled Metal Content	0
Product Contributes Saved Avoided Emissions	No

Warranty

Limited Warranty

2 Year
