APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13

Name: APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13
Brand: APC
SKU: PR7222
Price: 3064.25 USD
Availability: InStock

APC

PCN#

PR7222

MFG#

AP8867

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$3,064.25

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

Metered
IEC 60309 60A 3P+PE
30 x IEC 60320 C13
208 V
17.20 kW
Overload Protection
5.97 ft Cord Length
0U
Vertical
Rack
mountable
Tower

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 31 lbs.

APC NetShelter Metered Rack PDU, 0U, 17.3kW, 208V, 3 phase, 60A, 30 C13 outlets

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AP8867
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	Metered Rack
Product Name	Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13

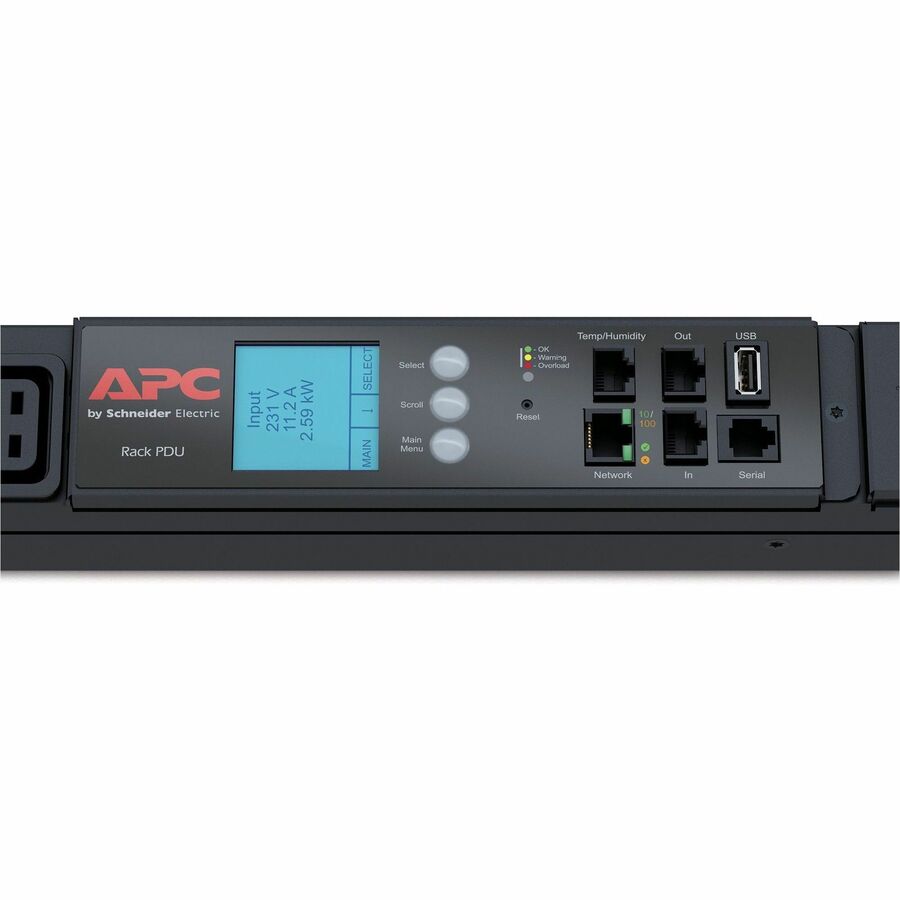

Marketing Information	The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8867 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a IEC 60309 60A 3P + PE input plug with 1 83m (6ft) cord and (30) IEC 60320 C13 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty
Packaged Quantity	1 Each
Product Type	PDU

Technical Information

PDU Type	Metered

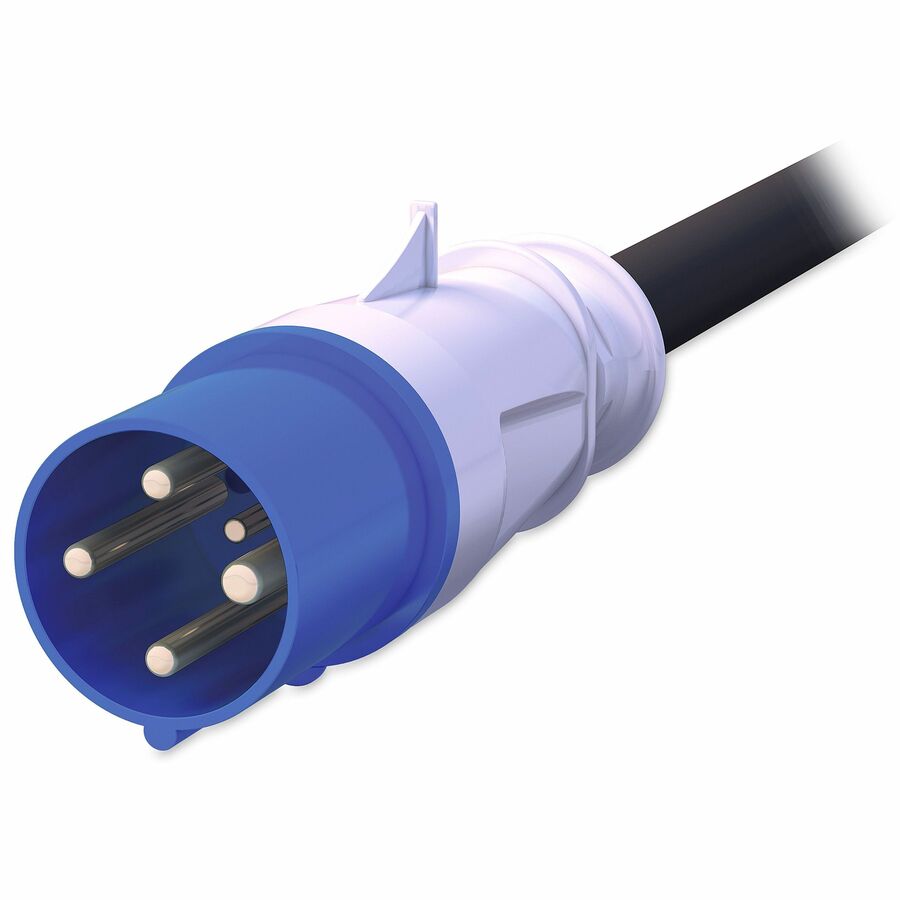

Plug/Connector Type	IEC 60309 60A 3P+PE
Receptacle Type	IEC 60320 C13
Receptacle Detail	30 x IEC 60320 C13
Protection Type	Overload Protection

Power Description

Input Voltage	208 V
Output Voltage	208 V AC
Power Rating (VA)	17.20 kVA

Management

Protocols:

SNMP
Telnet
Web

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Vertical
Mounting Preference	No Preference
Mount Type	Rack-mountable
Placement	Side
Form Factor	Tower
Rack Height	0U
Number of Cord/Cable	1
Cord Length	5.97 ft
Height	72"
Width	2.2"
Depth	2"
Weight (Approximate)	22.49 lb

Miscellaneous

For Country/Region	United States
Package Contents	Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13 Installation guide Rack mounting brackets Safety guide Serial configuration cable
Additional Information	Input Connections: IEC 309 60A 3P+PE
Certifications & Standards	cUL Listed\|UL Listed\|VCCI Class A
Product Take Back Program	No
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8867_ROHS_DECLARATION&p_FileName=AP8867KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP8867_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP8867_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1712014EN&p_File_name=ENVPEP1712014_V2.pdf
End of Life Manual Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1712014_EN&p_File_name=ENVEOLI1712014_EN.pdf
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin	India
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
Reach Compliance Date	12/10/2025
Halogen Content Performance	Product contains halogen above thresholds
Sustainable Packaging	No
Packaging Contains Recycled Cardboard	Yes

Warranty

Limited Warranty

2 Year
