APC by Schneider Electric Metered Rack AP8861 44-Outlets 5.7kW PDU

Name: APC by Schneider Electric Metered Rack AP8861 44-Outlets 5.7kW PDU
Brand: APC
SKU: DM0355
Price: 781.74 USD
Availability: InStock

APC

PCN#

DM0355

MFG#

AP8861

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$781.74

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

Metered
NEMA L21
20P
208 V
6 ft Cord Length
0U
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty2 YearAdditional Warranty Information2 years repair or replace

Shipping Weight: 20 lbs.

APC by Schneider Electric Metered Rack AP8861 44-Outlets 5.7kW PDU

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AP8861
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Metered Rack
Product Model	AP8861
Product Name	Metered Rack AP8861 44-Outlets 5.7kW PDU
Marketing Information	The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8861 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a NEMA L21-20P input plug with 1 83m (6ft) cord, (2) NEMA 5-20R, (36) IEC 60320 C13 and (6) IEC 60320 C19 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty
Product Type	PDU

Technical Information

PDU Type	Metered

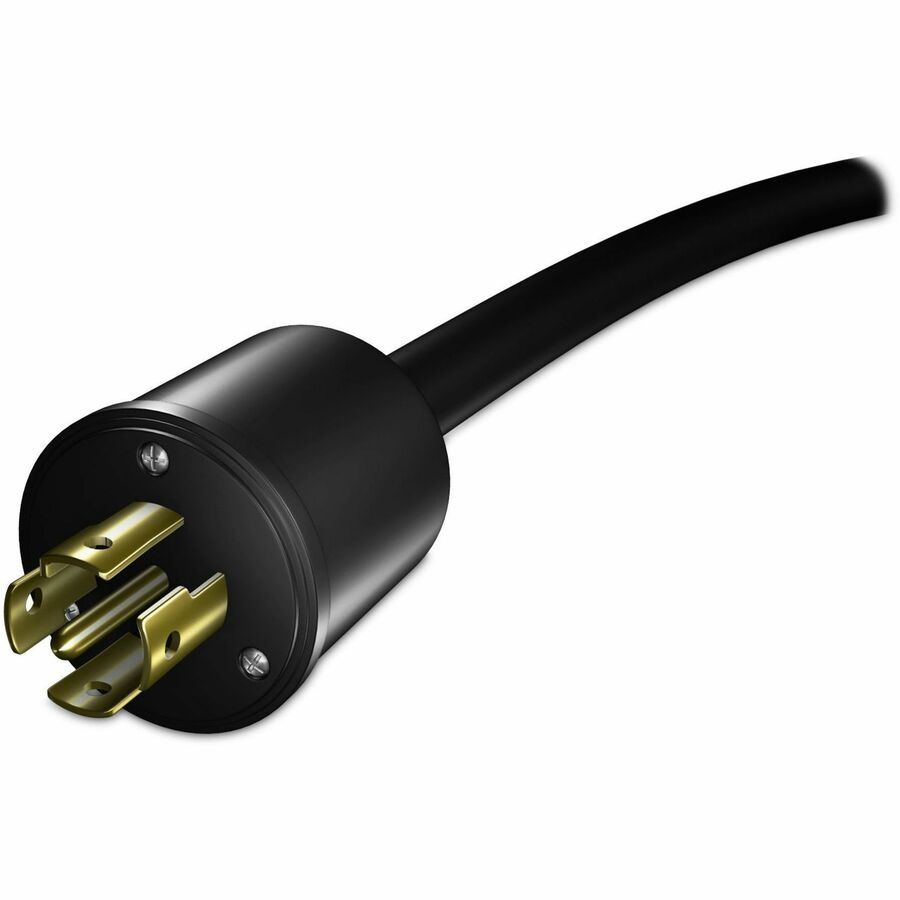

Plug/Connector Type	NEMA L21-20P

Power Description

Input Voltage	208 V
Output Voltage	120 V AC 208 V AC

Management

Protocols:

SNMP
Telnet

Physical Characteristics

Mount Type	Rack-mountable
Rack Height	0U
Cord Length	6 ft
Height	70.5"
Width	2.2"
Depth	1.7"
Weight (Approximate)	13.98 lb

Miscellaneous

Package Contents	Metered Rack AP8861 44-Outlets 5.7kW PDU Installation guide Rack mounting brackets Safety guide Serial configuration cable
Green Premium	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
REACH free of SVHC	No
Mercury Free	Yes
Lead Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8861_ROHS_DECLARATION&p_FileName=AP8861KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65033448&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65033448&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	2 Year
Additional Warranty Information	2 years repair or replace
