APC by Schneider Electric Metered Rack AP8841 42-Outlets PDU

Name: APC by Schneider Electric Metered Rack AP8841 42-Outlets PDU
Brand: APC
SKU: DM0154
Price: 702.95 USD
Availability: InStock

APC

PCN#

DM0154

MFG#

AP8841

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$702.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

Metered
NEMA L6
30P
200 V, 208 V
Overload Protection
9.84 ft Cord Length
0U
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty2 YearAdditional Warranty Information2 years repair or replace

Shipping Weight: 21 lbs.

APC by Schneider Electric Metered Rack AP8841 42-Outlets PDU

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AP8841
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Metered Rack
Product Model	AP8841
Product Name	Metered Rack AP8841 42-Outlets PDU
Marketing Information	The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8841 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface. User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty Enables a quick recovery from overload events and breakers are ultra low profile. Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable
Product Type	PDU

Technical Information

PDU Type	Metered

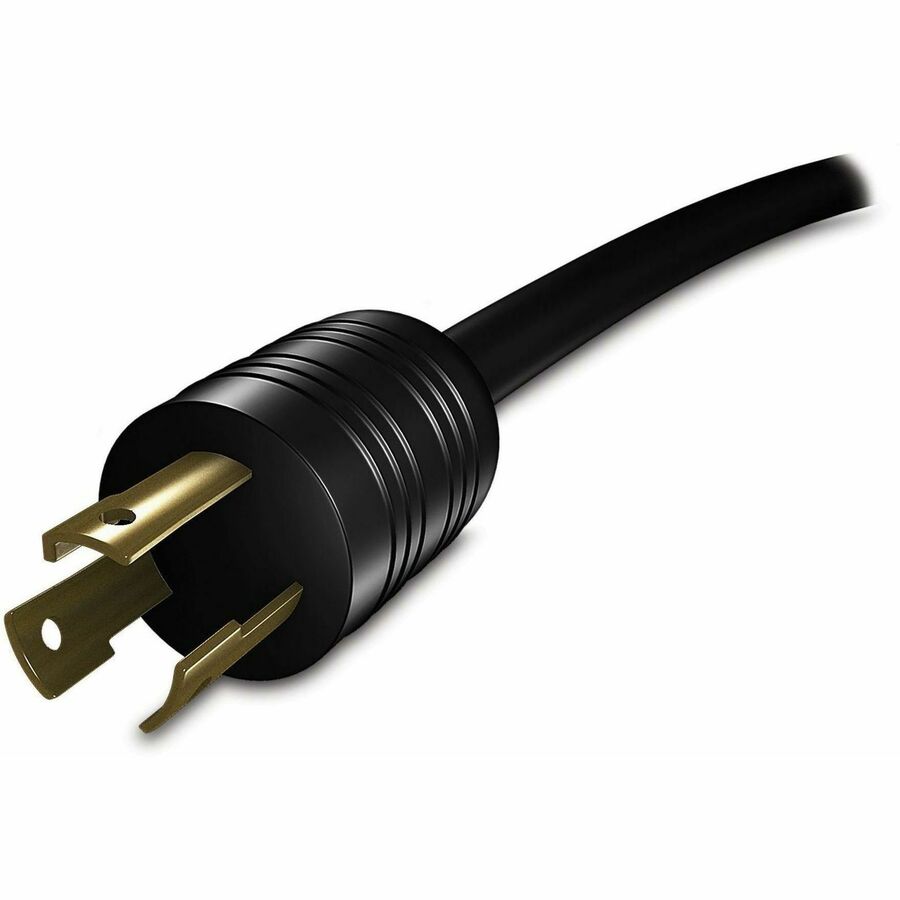

Plug/Connector Type	NEMA L6-30P
Protection Type	Overload Protection

Power Description

Input Voltage	200 V 208 V
Output Voltage	200 V AC 208 V AC

Management

Protocols:

SNMP
Telnet

Physical Characteristics

Mount Type	Rack-mountable
Rack Height	0U
Cord Length	9.84 ft
Height	70.5"
Width	2.2"
Depth	1.7"
Weight (Approximate)	15.08 lb

Miscellaneous

Package Contents	Metered Rack AP8841 42-Outlets PDU Installation guide Rack mounting brackets Safety guide Serial configuration cable
Certifications & Standards	METI Denan\|PSE\|VDE
Green Premium	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
REACH free of SVHC	No
Mercury Free	Yes
Lead Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8841_ROHS_DECLARATION&p_FileName=AP8841KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65033438&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65033438&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	2 Year
Additional Warranty Information	2 years repair or replace
