APC by Schneider Electric Metered-by-Outlet Rack 24-Outlets 11kW PDU

Name: APC by Schneider Electric Metered-by-Outlet Rack 24-Outlets 11kW PDU
Brand: APC
SKU: TU8412
Price: 2914.81 USD
Availability: InStock

APC

PCN#

TU8412

MFG#

AP8681

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,914.81

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

Metered
by
Outlet

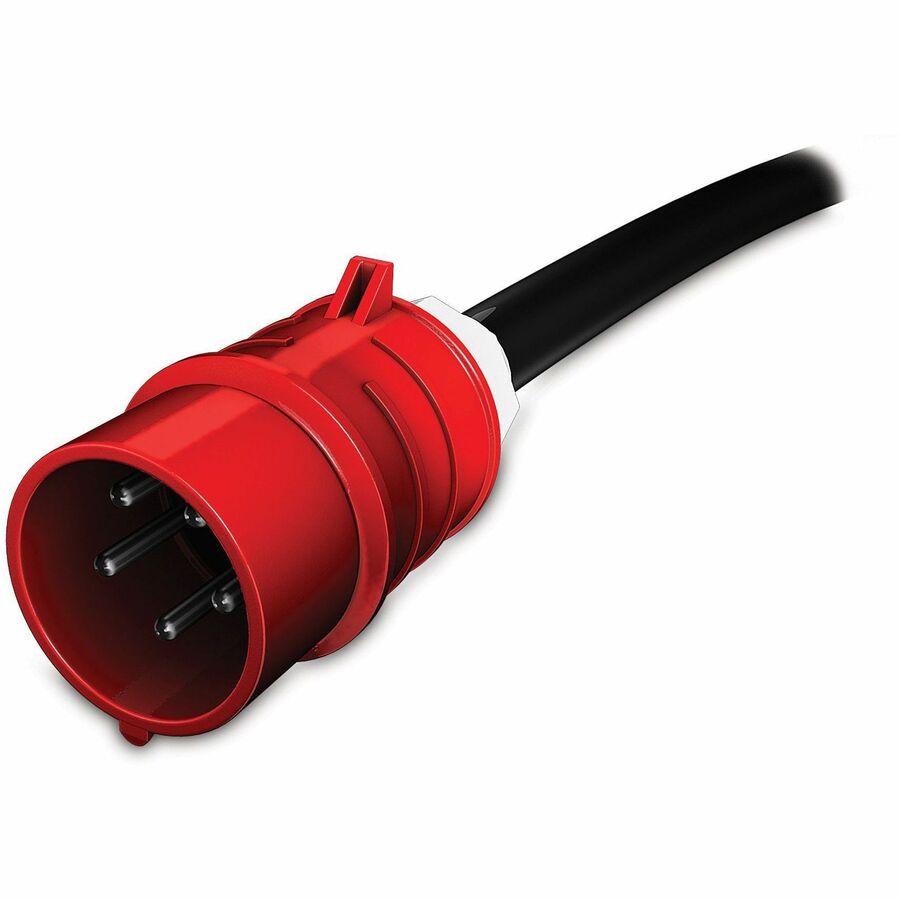

IEC 60309 16A 3P+N+PE, IEC 60309 20A 3P+N+PE
400 V
5.91 ft Cord Length
0U
Vertical
Tower

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 24 lbs.

APC NetShelter Metered-by-Outlet with Switching Rack PDU, 2G, 0U, 11.0kW, 230V, 21 C13 and 3 C19 outlet

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AP8681
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Name	Metered-by-Outlet Rack 24-Outlets 11kW PDU
Marketing Information	APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
Product Type	PDU

Technical Information

PDU Type	Metered-by-Outlet
Plug/Connector Type	IEC 60309 16A 3P+N+PE IEC 60309 20A 3P+N+PE

Power Description

Input Voltage	400 V
Output Voltage	230 V AC

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Vertical
Mounting Preference	No Preference
Placement	Side
Form Factor	Tower
Rack Height	0U
Cord Length	5.91 ft
Height	72"
Width	2.2"
Depth	2"
Weight (Approximate)	18.14 lb

Miscellaneous

For Country/Region	United States
Package Contents	Metered-by-Outlet Rack 24-Outlets 11kW PDU CAN port terminator Installation guide Rack mounting brackets Safety guide Serial configuration cable
Certifications & Standards	cUL Listed\|UL Listed\|VDE
Product Take Back Program	No
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8681_ROHS_DECLARATION&p_FileName=AP8681KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP8681_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP8681_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1612033EN&p_File_name=ENVPEP1612033_V2.pdf
End of Life Manual Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1612033_EN&p_File_name=ENVEOLI1612033_EN.pdf
SCIP Number	1cdb2fed-a06f-4574-913d-8df8e70936b2
Country of Origin	India
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
Reach Compliance Date	7/18/2025
Halogen Content Performance	Product contains halogen above thresholds
Sustainable Packaging	No
Packaging Contains Recycled Cardboard	Yes

Warranty

Limited Warranty

2 Year
