APC by Schneider Electric Switched Rack AP8000 24-Outlets PDU

Name: APC by Schneider Electric Switched Rack AP8000 24-Outlets PDU
Brand: APC
SKU: KD3287
Price: 2352.41 USD
Availability: InStock

APC

PCN#

KD3287

MFG#

AP8641

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,352.41

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

Switched
NEMA L6
30P
21 x IEC 60320 C13, 3 x IEC 60320 C19
200 V, 208 V, 230 V
Overload Protection
9.51 ft Cord Length
0U
Vertical
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 45 lbs.

APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AP8641
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	Switched Rack
Product Series	AP8000
Product Model	AP8641
Product Name	Switched Rack AP8000 24-Outlets PDU
Marketing Information	APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
Product Type	PDU

Technical Information

PDU Type	Switched

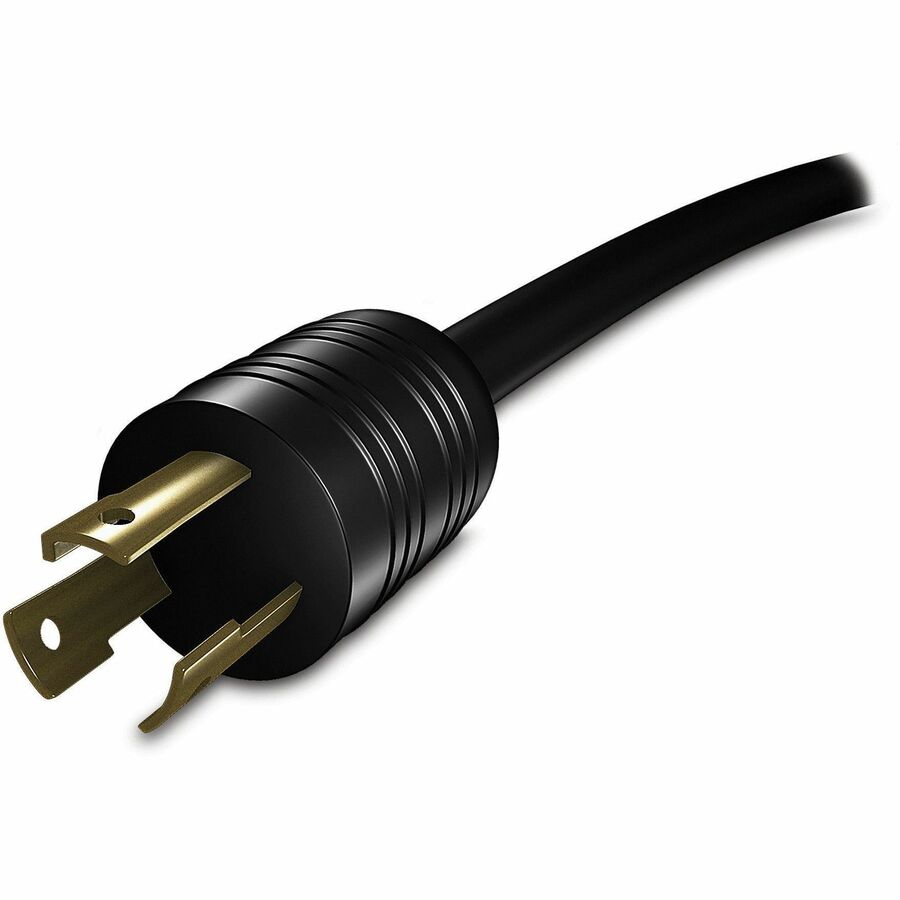

Plug/Connector Type	NEMA L6-30P
Receptacle Type	IEC 60320 C19 IEC 60320 C13
Receptacle Detail	21 x IEC 60320 C13 3 x IEC 60320 C19
Protection Type	Overload Protection

Power Description

Input Voltage	200 V 208 V 230 V
Input Voltage Range	200 V AC - 230 V AC
Output Voltage	200 V AC 208 V AC

Management

Protocols:

Web
SNMP
Telnet

Physical Characteristics

Mounting Orientation	Vertical
Mounting Preference	No Preference
Mount Type	Rack-mountable
Placement	Side
Rack Height	0U
Number of Cord/Cable	1
Cord Length	9.51 ft
Height	72"
Width	2.2"
Depth	2"
Weight (Approximate)	18.14 lb

Miscellaneous

For Country/Region	United States
Package Contents	Switched Rack AP8000 24-Outlets PDU CAN port terminator Installation guide Rack mounting brackets Safety guide Serial configuration cable
Certifications & Standards	cUL Listed\|PSE\|UL Listed\|VCCI Class A
Product Take Back Program	No
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8641_ROHS_DECLARATION&p_FileName=AP8641KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP8641_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP8641_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1612033EN&p_File_name=ENVPEP1612033_V2.pdf
End of Life Manual Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1612033_EN&p_File_name=ENVEOLI1612033_EN.pdf
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin	India
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
