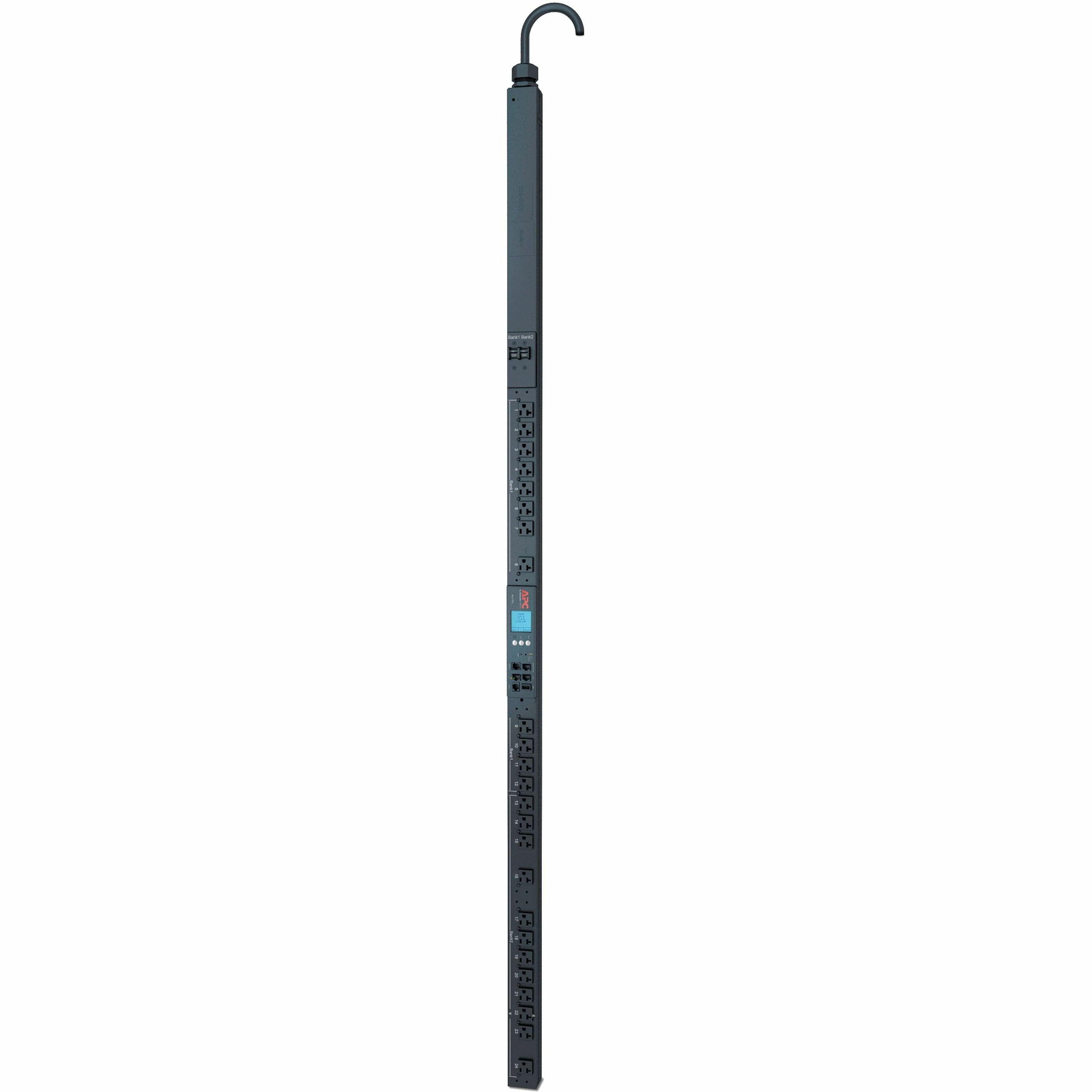

APC by Schneider Electric Metered-by-Outlet with Switching Rack PDU

Name: APC by Schneider Electric Metered-by-Outlet with Switching Rack PDU
Brand: APC
SKU: VZ3326
Price: 2155.98 USD
Availability: InStock

APC

PCN#

VZ3326

MFG#

AP8632

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,155.98

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

Metered
by
Outlet
NEMA L5
30P
24 x NEMA 5
20R
100 V, 120 V
2880 W
Overload Protection
9.51 ft Cord Length
0U
Vertical
Rack
mountable
Tower

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 23 lbs.

APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 100V to 120V, 24 NEMA 5-20R sockets

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AP8632
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Name	Metered-by-Outlet with Switching Rack PDU
Marketing Information	APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by Struxureware for Data Centers using Data Center Expert and Data Center Operations with Capacity and Change modules.
Packaged Quantity	1 Each
Product Type	PDU

Technical Information

PDU Type	Metered-by-Outlet
Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA 5-20R
Receptacle Detail	24 x NEMA 5-20R
Protection Type	Overload Protection

Power Description

Input Voltage	100 V 120 V
Output Voltage	100 V AC 120 V AC
Power Rating (VA)	2880 VA
Input Current	30 A

Management

Web
SNMP
Telnet

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Vertical
Mounting Preference	No Preference
Mount Type	Rack-mountable
Placement	Side
Form Factor	Tower
Rack Height	0U
Number of Cord/Cable	1
Cord Length	9.51 ft
Height	72"
Width	2.2"
Depth	2"
Weight (Approximate)	17.75 lb

Miscellaneous

For Country/Region	United States
Package Contents	Metered-by-Outlet with Switching Rack PDU Installation guide Rack mounting brackets Safety guide Serial configuration cable
Certifications & Standards	cUL Listed\|PSE\|UL Listed
Product Take Back Program	No
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8632_ROHS_DECLARATION&p_FileName=AP8632KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP8632_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP8632_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1512009EN&p_File_name=ENVPEP1512009_V2.pdf
End of Life Manual Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1512009_EN&p_File_name=ENVEOLI1512009_V2.pdf
Country of Origin	India
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Single-use Plastic (SUP) Free Shipping Packaging	No
Reach Compliance Date	12/10/2025
Halogen Content Performance	Product contains halogen above thresholds
Sustainable Packaging	No
Packaging Contains Recycled Cardboard	Yes

Warranty

Limited Warranty

2 Year
