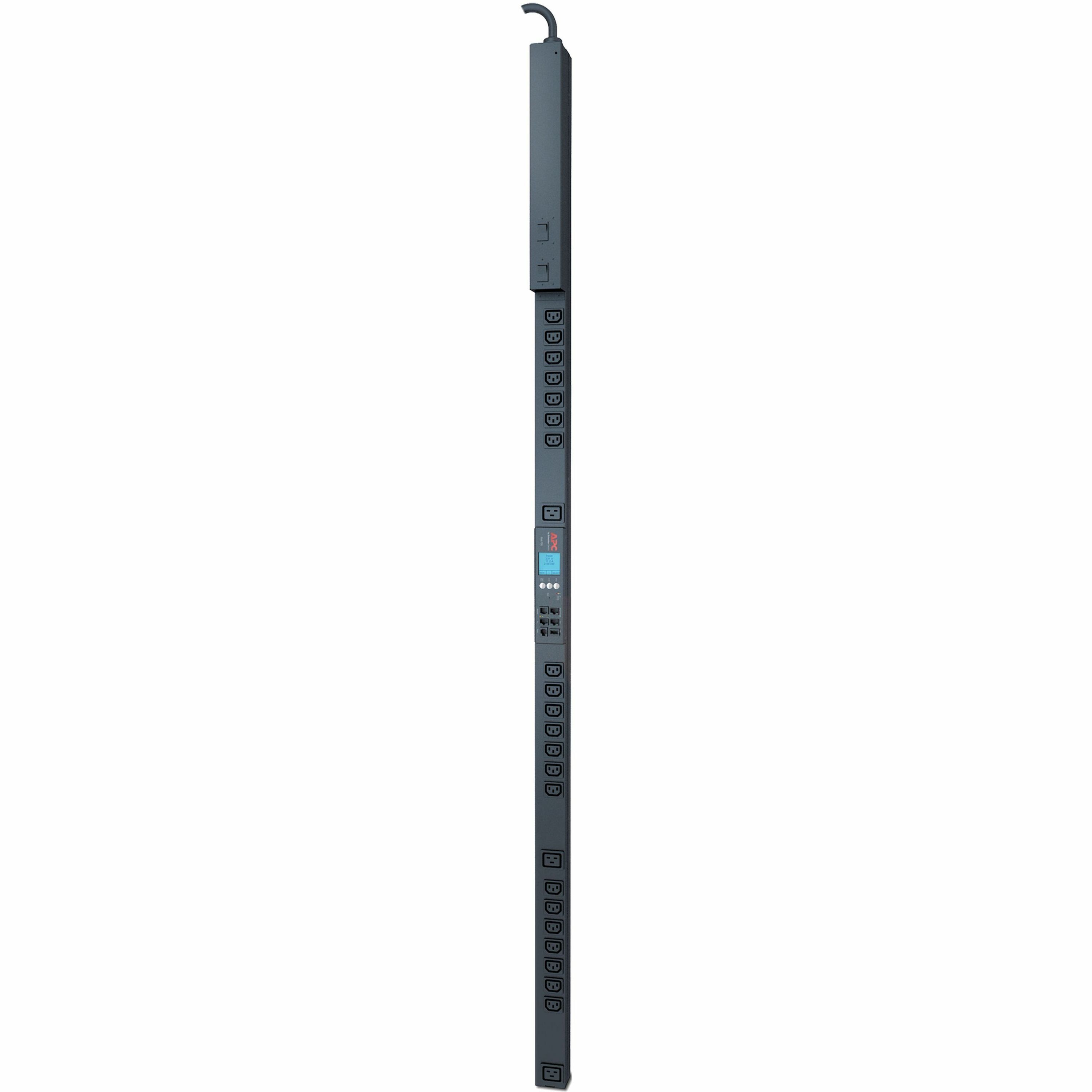

APC by Schneider Electric Metered-by-Outlet Rack PDU

by
APC
PCN#
VZ3320
MFG#
AP8441
main product photo
fotorama-image
fotorama-image
APC Authorized Dealer
$1,893.10
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Metered
  • by
  • Outlet

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 24 lbs.
APC Rack PDU 2G, Metered-by-Outlet, ZeroU, 30A, 200/208V, (21) C13 & (3) C19
Overview
Tech Specs
Specifications

Manufacturer

Schneider Electric SA

Manufacturer Part Number

AP8441

Manufacturer Website Address

http://www.schneider-electric.com

Brand Name

APC

Product Line

Metered

Product Name

Metered-by-Outlet Rack PDU

Marketing Information

APC Metered by Outlet Rack Power Distribution Units (PDUs) provide individual outlet power metering to enable energy optimization and circuit protection. Current metering provides real-time remote monitoring of connected loads. Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Product Type

PDU
Technical Information

PDU Type

Metered-by-Outlet

Plug/Connector Type

NEMA L6-30P

Plug/Connector Detail

1 x NEMA L6-30P

Receptacle Type

  • IEC 60309 C13
  • IEC 60309 C19
Power Description

Input Voltage

  • 200 V
  • 208 V
  • 230 V

Output Voltage

  • 200 V AC
  • 208 V AC

Input Current

30 A
Physical Characteristics

Color Family

Black

Product Color

Black

Mounting Orientation

Vertical

Mounting Preference

No Preference

Mount Type

Rack-mountable

Placement

Side

Rack Height

0U

Cord Length

9.84 ft

Height

72"

Width

2.2"

Depth

2"

Weight (Approximate)

18.10 lb
Miscellaneous

For Country/Region

United States

Package Contents

  • Metered-by-Outlet Rack PDU
  • CAN port terminator
  • Installation guide
  • Rack mounting brackets
  • Safety guide
  • Serial configuration cable

    • Certifications & Standards

    		cUL Listed|PSE|UL Listed|VCCI Class A

    Product Take Back Program

    		No

    RoHS Exemption Information

    		https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8441_ROHS_DECLARATION&p_FileName=AP8441KIT_ROHS_DECLARATION_US.pdf

    REACH Declaration URL

    		https://download.schneider-electric.com/files?p_Doc_Ref=AP8441_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)

    EU RoHS Declaration URL

    		https://download.schneider-electric.com/files?p_Doc_Ref=AP8441_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)

    Environmental Profile Availability

    		https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1712014EN&p_File_name=ENVPEP1712014_V2.pdf

    End of Life Manual Availability

    		https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1712014_EN&p_File_name=ENVEOLI1712014_EN.pdf

    Environmentally Friendly

    		Yes

    Environmental Compliance

    		Restriction of Hazardous Substances (RoHS)

    Single-use Plastic (SUP) Free Shipping Packaging

    		No

    Reach Compliance Date

    		12/10/2025

    Halogen Content Performance

    		Product contains halogen above thresholds

    Sustainable Packaging

    		No

    Packaging Contains Recycled Cardboard

    		Yes
    Warranty

    Limited Warranty

    		2 Year
