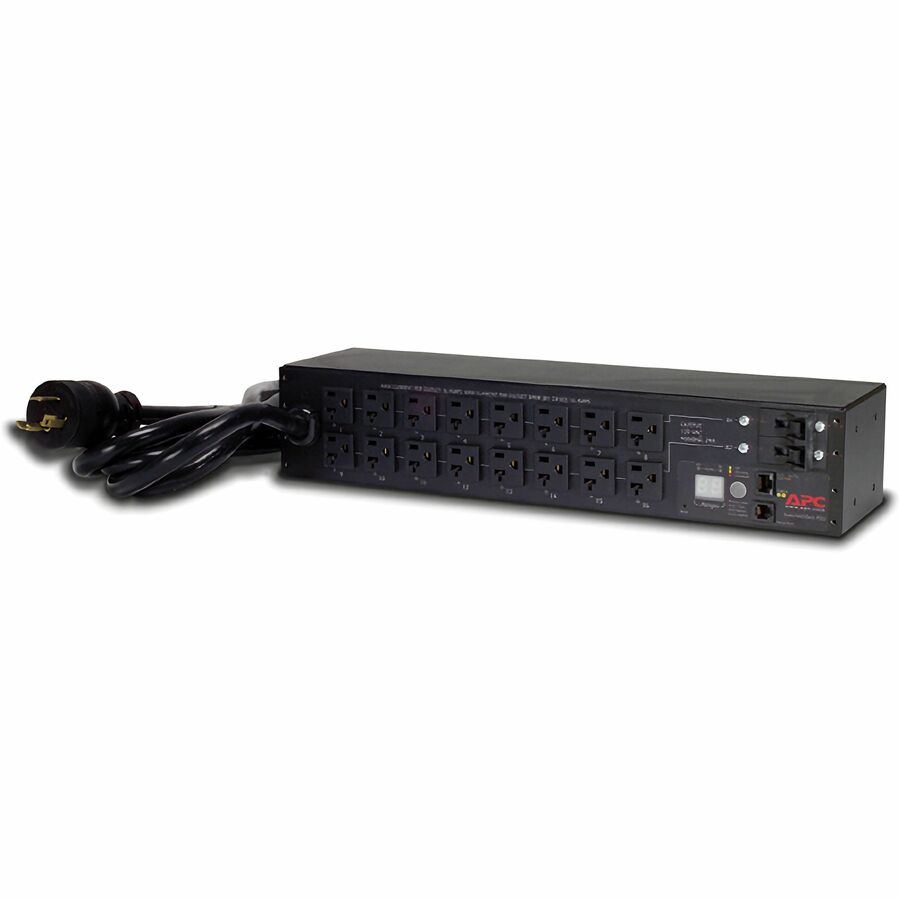

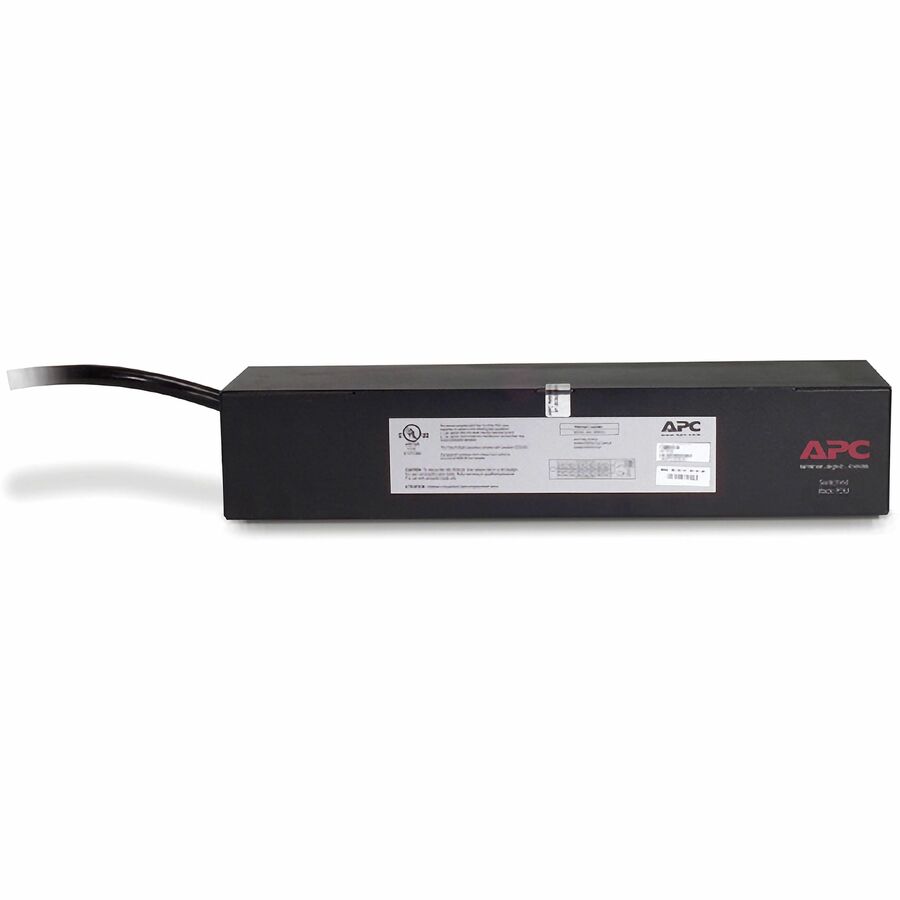

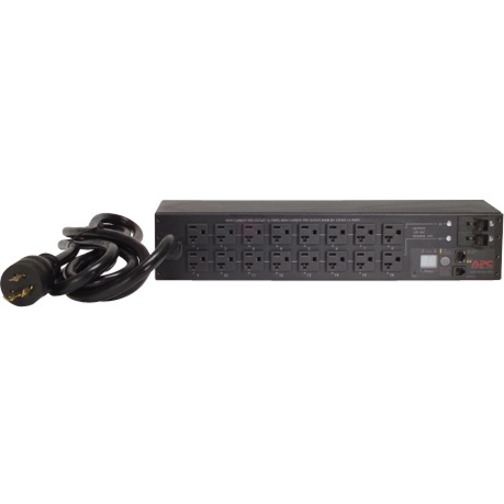

APC by Schneider Electric Rack PDU, Switched, 2U, 30A, 120V, (16)5-20

Name: APC by Schneider Electric Rack PDU, Switched, 2U, 30A, 120V, (16)5-20
Brand: APC
SKU: 7V1736
Price: 1427.84 USD
Availability: InStock

APC

PCN#

7V1736

MFG#

AP7902B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,427.84

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Switched
NEMA L5
30P
16 x NEMA 5
20R
100 V, 120 V
9.84 ft Cord Length
2U
Horizontal
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 16 lbs.

APC NetShelter Switched Rack PDU, 2U, 30A, 120V, 16 NEMA 5-20 outlet

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AP7902B
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	Switched Rack
Product Name	Rack PDU, Switched, 2U, 30A, 120V, (16)5-20
Marketing Information	It is a switched rack PDU with a maximum current capacity of 30A and an input voltage of 120V. It includes 16 NEMA 5-20R outlets and a NEMA L5-30P input connection. The PDU has a 2U form factor and a cord length of 10 feet. It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities. The unit is UL Listed, ensuring high safety and performance standards.
Product Type	PDU

Technical Information

PDU Type	Switched
Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA 5-20R
Receptacle Detail	16 x NEMA 5-20R

Power Description

Input Voltage	100 V 120 V
Output Voltage	120 V AC
Input Current	30 A

Physical Characteristics

Mounting Orientation	Horizontal
Mounting Preference	No Preference
Mount Type	Rack-mountable
Placement	Front Rear
Rack Height	2U
Cord Length	9.84 ft
Height	3.5"
Width	17.5"
Depth	4.5"
Weight (Approximate)	9.92 lb

Miscellaneous

For Country/Region	United States
Package Contents	Rack PDU, Switched, 2U, 30A, 120V, (16)5-20 Cord retention bracket(s) Horizontal mounting brackets Installation guide User manual
Certifications & Standards	cUL Listed\|CSA\|Industry Canada\|UL Listed
Product Take Back Program	No
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7902B_ROHS_DECLARATION&p_FileName=AP7902BKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP7902B_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP7902B_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1612033EN&p_File_name=ENVPEP1612033_V2.pdf
End of Life Manual Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1612033_EN&p_File_name=ENVEOLI1612033_EN.pdf
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
