APC by Schneider Electric Rack PDU, Switched, 1U, 20A, 120V, (8)5-20

Name: APC by Schneider Electric Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
Brand: APC
SKU: 8V6421
Price: 995.15 USD
Availability: InStock

APC

PCN#

8V6421

MFG#

AP7901B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$995.15

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

Switched
NEMA L5
20P
8 x NEMA 5
20R
100 V, 120 V
2400 W
Network (RJ
45)
11.98 ft Cord Length
1U
Horizontal
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 9 lbs.

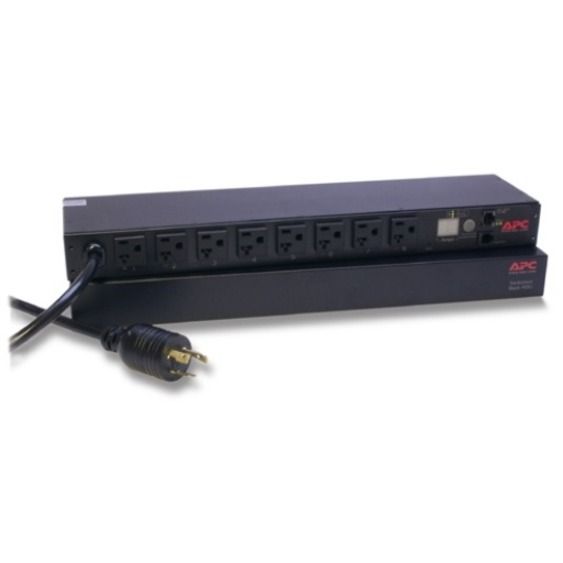

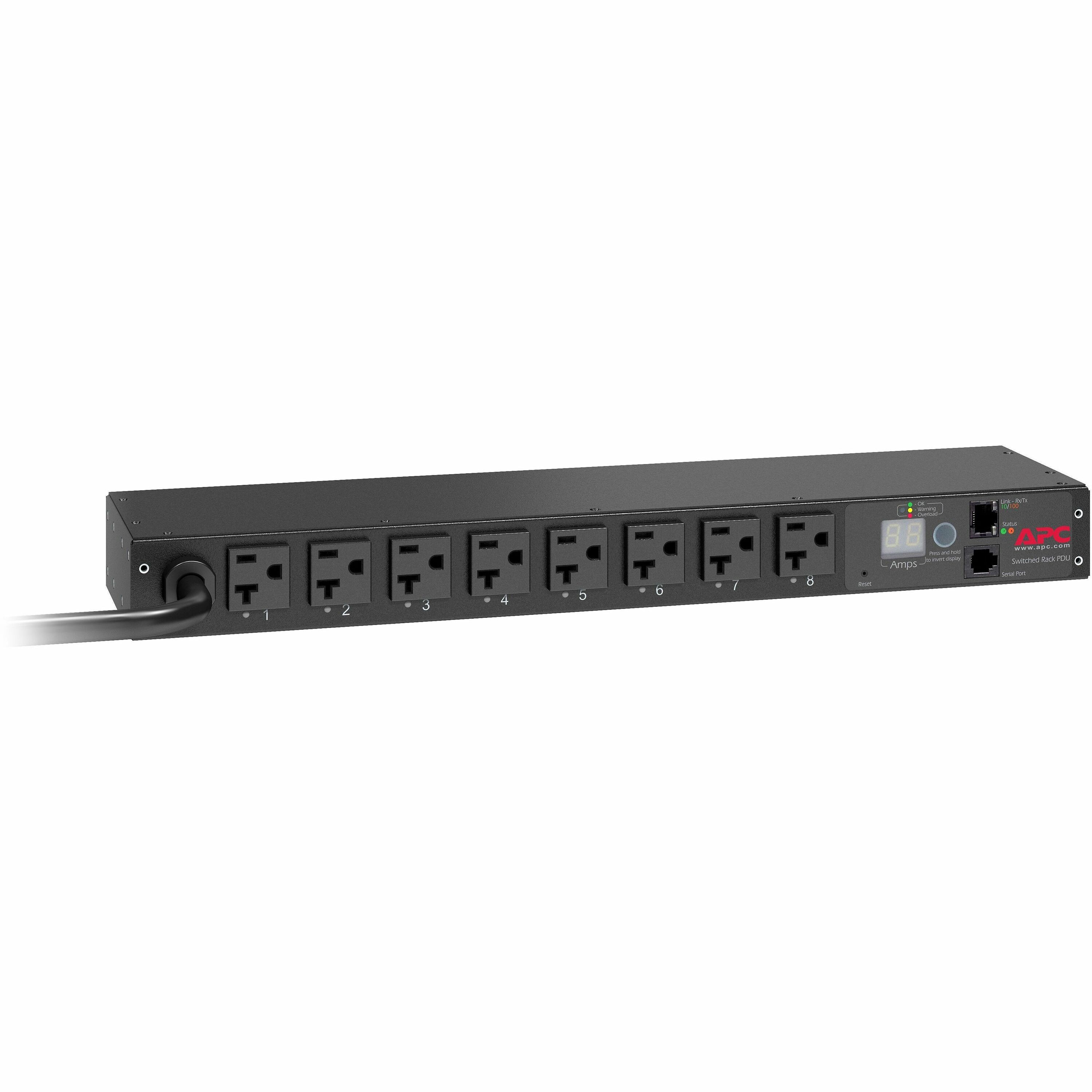

APC NetShelter Switched Rack PDU, 1U, 20A, 120V, 8 NEMA 5-20 outlet

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AP7901B
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Name	Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
Marketing Information	It is a switched rack PDU with a maximum current capacity of 20A and an input voltage of 120V. It features 8 NEMA 5-20R outlets and a NEMA L5-20P input connection. The PDU has a 1U form factor and a cord length of 12 feet. It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities. The unit is UL Listed and CSA certified, ensuring high safety and performance standards.
Product Type	PDU

Technical Information

PDU Type	Switched
Plug/Connector Type	NEMA L5-20P
Plug/Connector Detail	1 x NEMA L5-20P
Receptacle Type	NEMA 5-20R
Receptacle Detail	8 x NEMA 5-20R

Power Description

Input Voltage	100 V 120 V
Output Voltage	120 V AC
Power Rating (VA)	2400 VA
Input Current	20 A

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Mounting Orientation	Horizontal
Mounting Preference	No Preference
Mount Type	Rack-mountable
Placement	Front Rear
Rack Height	1U
Cord Length	11.98 ft
Height	1.7"
Width	17.5"
Depth	4.3"
Weight (Approximate)	5 lb

Miscellaneous

For Country/Region	United States
Package Contents	Rack PDU, Switched, 1U, 20A, 120V, (8)5-20 Cord retention bracket(s) Horizontal mounting brackets Installation guide User manual
Certifications & Standards	cUL Listed\|CSA\|Industry Canada\|UL Listed
Product Take Back Program	No
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7901B_ROHS_DECLARATION&p_FileName=AP7901BKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP7901B_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP7901B_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1612033EN&p_File_name=ENVPEP1612033_V2.pdf
End of Life Manual Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1612033_EN&p_File_name=ENVEOLI1612033_EN.pdf
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin	India
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
Reach Compliance Date	12/10/2025
Halogen Content Performance	Product contains halogen above thresholds
Sustainable Packaging	No
Packaging Contains Recycled Cardboard	Yes

Warranty

Limited Warranty

2 Year
