APC by Schneider Electric 30-Outlets PDU

Name: APC by Schneider Electric 30-Outlets PDU
Brand: APC
SKU: 8V8952
Price: 2341.94 USD
Availability: InStock

APC

PCN#

8V8952

MFG#

AP7899B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,341.94

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

Metered
CS8365
4 x IEC 60320 C19, 2 x NEMA L6
30R, 24 x IEC 60320 C13
208 V
14.40 kW
Overload Protection
9.84 ft Cord Length
0U
Vertical
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 1 lbs.

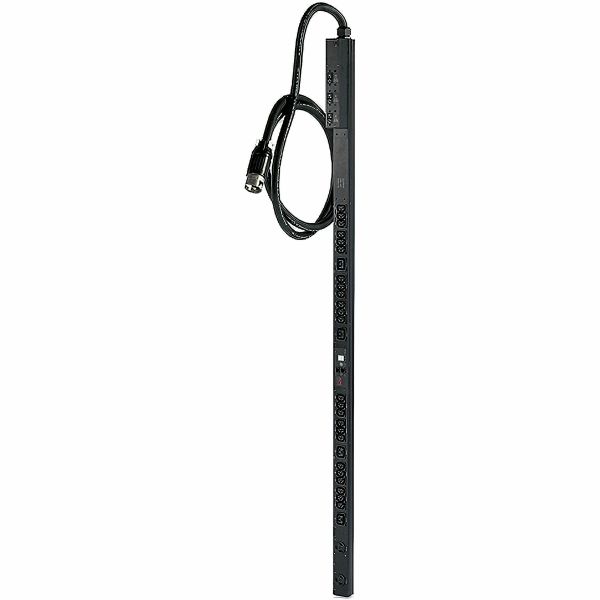

APC NetShelter Metered Rack PDU, 0U, 14.4kW, 208V, 24 C13, 4 C19, 2 NEMA L6-30R outlet, 10 ft cord

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AP7899B
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Name	30-Outlets PDU
Marketing Information	It is a metered rack PDU designed for Zero U vertical mounting. It supports a maximum current of 40A and operates at 208V. The PDU features 24 IEC 60320 C13, 4 IEC 60320 C19, and 2 NEMA L6-30R outlets. It has a load capacity of 14400 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.
Product Type	PDU

Technical Information

PDU Type	Metered
Phase	Three Phase
Plug/Connector Type	CS8365
Plug/Connector Detail	1 x CS8365
Receptacle Type	IEC 60320 C19 NEMA L6-30R IEC 60320 C13
Receptacle Detail	4 x IEC 60320 C19 2 x NEMA L6-30R 24 x IEC 60320 C13
Protection Type	Overload Protection

Power Description

Input Voltage	208 V
Output Voltage	208 V AC
Power Rating (Watt)	14.40 kW
Input Current	50 A

Physical Characteristics

Mounting Orientation	Vertical
Mounting Preference	No Preference
Mount Type	Rack-mountable
Placement	Side
Rack Height	0U
Cord Length	9.84 ft
Height	70"
Width	2.2"
Depth	3.7"
Weight (Approximate)	22.84 lb

Miscellaneous

For Country/Region	United States
Package Contents	30-Outlets PDU Cord retention bracket(s) Documentation CD Installation guide Rack mounting brackets RS-232 configuration cable Toolless mounting kit
Certifications & Standards	cUL Listed\|CSA\|Industry Canada\|METI Denan\|UL Listed
Product Take Back Program	No
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7899B_ROHS_DECLARATION&p_FileName=AP7899BKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP7899B_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP7899B_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1512009EN&p_File_name=ENVPEP1512009_V2.pdf
End of Life Manual Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1512009_EN&p_File_name=ENVEOLI1512009_V2.pdf
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
SCIP Number	1cdb2fed-a06f-4574-913d-8df8e70936b2
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
Reach Compliance Date	12/10/2025
Halogen Content Performance	Product contains halogen above thresholds
Sustainable Packaging	No
Packaging Contains Recycled Cardboard	Yes

Warranty

Limited Warranty

2 Year
