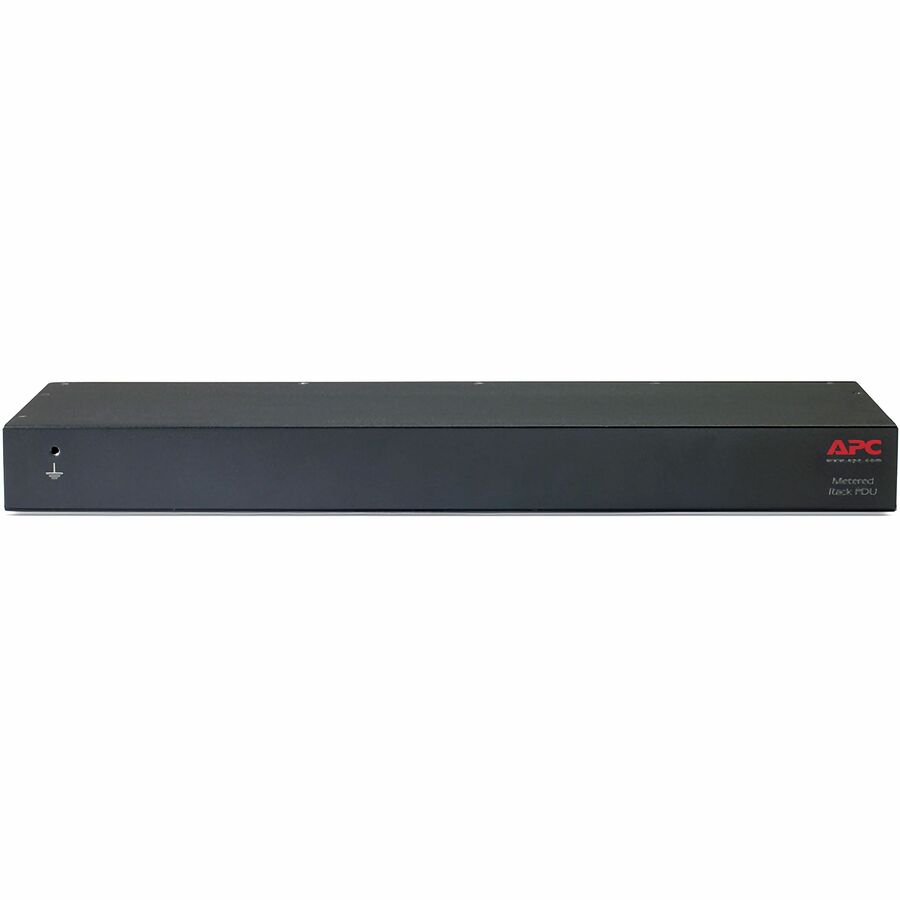

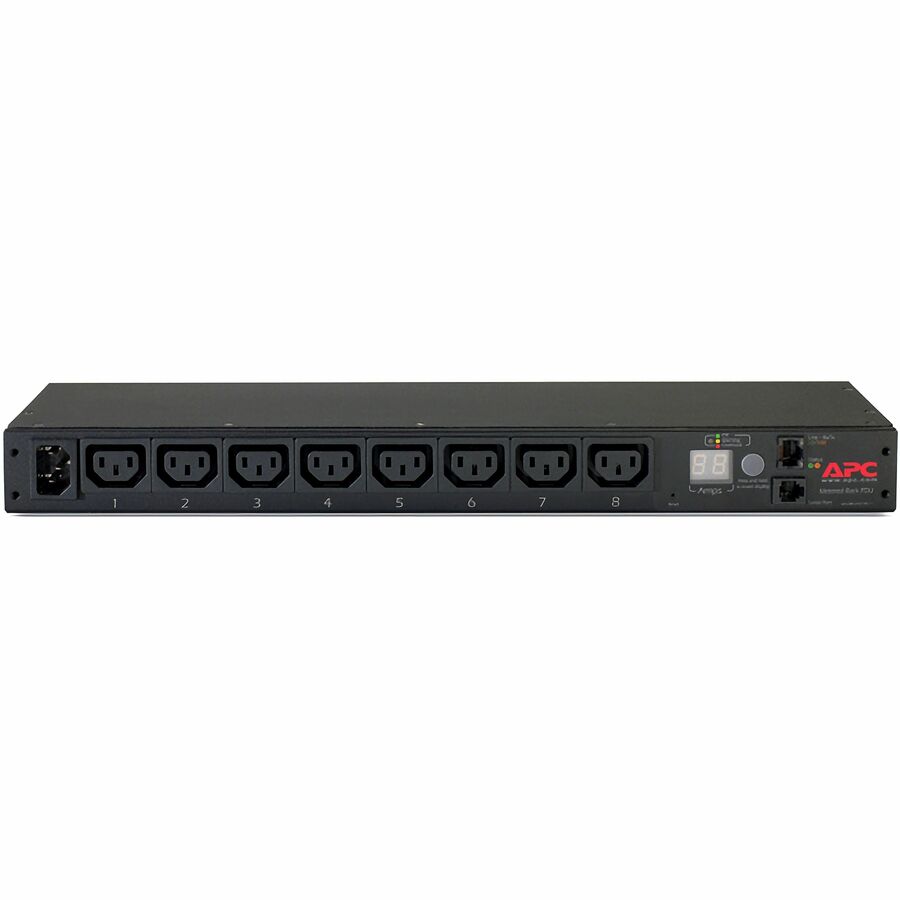

APC by Schneider Electric Rack PDU, Metered, 1U, 12A/208V, 10A/230V, (8) C13

Name: APC by Schneider Electric Rack PDU, Metered, 1U, 12A/208V, 10A/230V, (8) C13
Brand: APC
SKU: 1AR011
Price: 643.47 USD
Availability: InStock

APC

PCN#

1AR011

MFG#

AP7820B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$643.47

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

Metered
IEC 60320 C14
200 V, 208 V, 230 V
6.50 ft Cord Length
1U
Horizontal
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 7 lbs.

APC NetShelter Metered Rack PDU, 1U, 12A/208V, 10A/230V, 8 C13 outlet

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AP7820B
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	NetShelter
Product Series	Metered
Product Name	Rack PDU, Metered, 1U, 12A/208V, 10A/230V, (8) C13
Marketing Information	It is a metered rack PDU designed for 1U horizontal mounting. It supports a maximum current of 12A at 208V and 10A at 230V. The PDU features 8 IEC 60320 C13 outlets and a 6.5-foot power cord with an IEC 60320 C14 plug. It has a load capacity of 2300 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.
Product Type	PDU

Technical Information

PDU Type	Metered
Plug/Connector Type	IEC 60320 C14

Power Description

Input Voltage	200 V 208 V 230 V
Output Voltage	208 V AC 230 V AC
Input Current	15 A

Physical Characteristics

Mounting Orientation	Horizontal
Mounting Preference	No Preference
Mount Type	Rack-mountable
Placement	Front Rear
Rack Height	1U
Cord Length	6.50 ft
Height	1.7"
Width	17.5"
Depth	4"
Weight (Approximate)	3.81 lb

Miscellaneous

For Country/Region	United States
Package Contents	Rack PDU, Metered, 1U, 12A/208V, 10A/230V, (8) C13 Cord retention bracket(s) Installation guide Rack mounting brackets User manual
Certifications & Standards	cUL Listed\|C-tick\|CE\|CSA\|GOST\|UL Listed\|VDE\|VCCI
Product Take Back Program	No
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7820B_ROHS_DECLARATION&p_FileName=AP7820BKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP7820B_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP7820B_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1512009EN&p_File_name=ENVPEP1512009_V2.pdf
End of Life Manual Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1512009_EN&p_File_name=ENVEOLI1512009_V2.pdf
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
SCIP Number	1cdb2fed-a06f-4574-913d-8df8e70936b2
Country of Origin	India
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
Reach Compliance Date	12/10/2025
Halogen Content Performance	Product contains halogen above thresholds
Sustainable Packaging	No
Packaging Contains Recycled Cardboard	Yes

Warranty

Limited Warranty

2 Year
