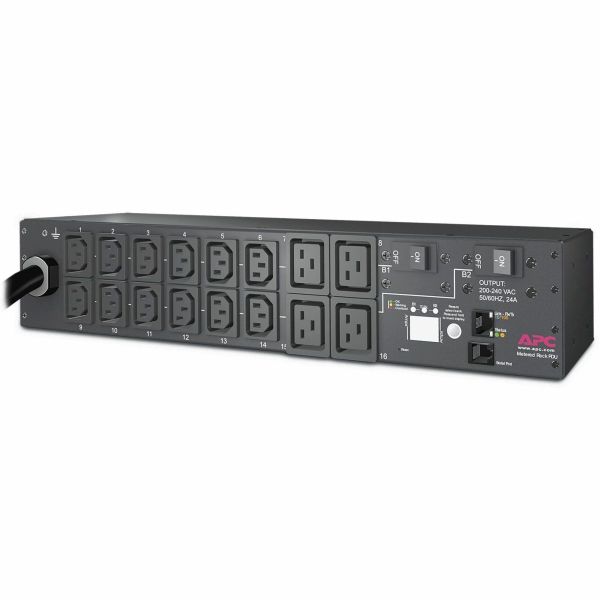

APC by Schneider Electric Rack PDU, Metered, 2U, 30A, 208V, (12) C13s & (4) C19

Name: APC by Schneider Electric Rack PDU, Metered, 2U, 30A, 208V, (12) C13s & (4) C19
Brand: APC
SKU: 7V0113
Price: 1102.17 USD
Availability: InStock

APC

PCN#

7V0113

MFG#

AP7811B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,102.17

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Metered
NEMA L6
30P
12 x IEC 60320 C13, 4 x IEC 60320 C19
200 V, 208 V, 230 V
11.98 ft Cord Length
2U
Horizontal
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 18 lbs.

APC NetShelter Metered Rack PDU, 2U, 5.0kW, 208V, 30A, 12 C13 and 4 C19 outlet

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AP7811B
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	Metered Rack
Product Name	Rack PDU, Metered, 2U, 30A, 208V, (12) C13s & (4) C19
Marketing Information	APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles AP7811B offers real-time remote monitoring and user-defined alarms which helps prevent potential circuit overloads that can cause accidental power loss to critical equipment Easily access, configure, and monitor this metered PDU from remote locations A network management interface provides standards-based management via Web, SNMP, and Command Line Interface This Metered PDU from APC provides (12) IEC C13 and (4) IEC C19 outlets to supply power to rack equipment Active current measurements (amps), User-customizable alarms and warnings and Embedded log memory to record/review/report historic data to local user An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH) Easy to mount this Horizontal PDU in racks or enclosures and occupies 2U of rack Space Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable
Product Type	PDU

Technical Information

PDU Type	Metered
Plug/Connector Type	NEMA L6-30P
Plug/Connector Detail	1
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	12 x IEC 60320 C13 4 x IEC 60320 C19

Power Description

Input Voltage	200 V 208 V 230 V
Output Voltage	208 V AC
Input Current	30 A

Physical Characteristics

Mounting Orientation	Horizontal
Mounting Preference	No Preference
Mount Type	Rack-mountable
Placement	Front Rear
Rack Height	2U
Cord Length	11.98 ft
Height	3.5"
Width	17.5"
Depth	4.4"
Weight (Approximate)	7.41 lb

Miscellaneous

For Country/Region	United States
Package Contents	Rack PDU, Metered, 2U, 30A, 208V, (12) C13s & (4) C19 Cord retention bracket(s) Installation guide Rack mounting brackets User manual
Certifications & Standards	cUL Listed\|CSA\|PSE\|UL Listed
Product Take Back Program	No
Lead Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7811B_ROHS_DECLARATION&p_FileName=AP7811BKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP7811B_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP7811B_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1712014EN&p_File_name=ENVPEP1712014_V2.pdf
End of Life Manual Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1712014_EN&p_File_name=ENVEOLI1712014_EN.pdf
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
SCIP Number	1cdb2fed-a06f-4574-913d-8df8e70936b2
Country of Origin	India
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
Reach Compliance Date	12/10/2025
Sustainable Packaging	No
Packaging Contains Recycled Cardboard	Yes

Warranty

Limited Warranty

2 Year
