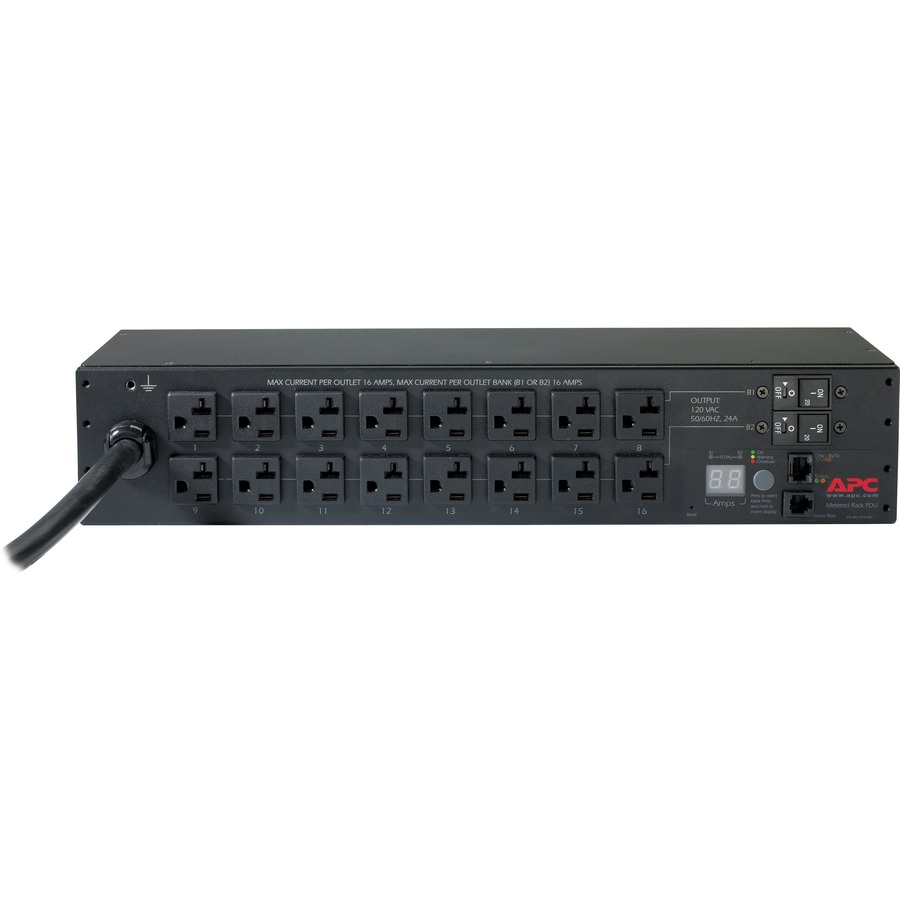

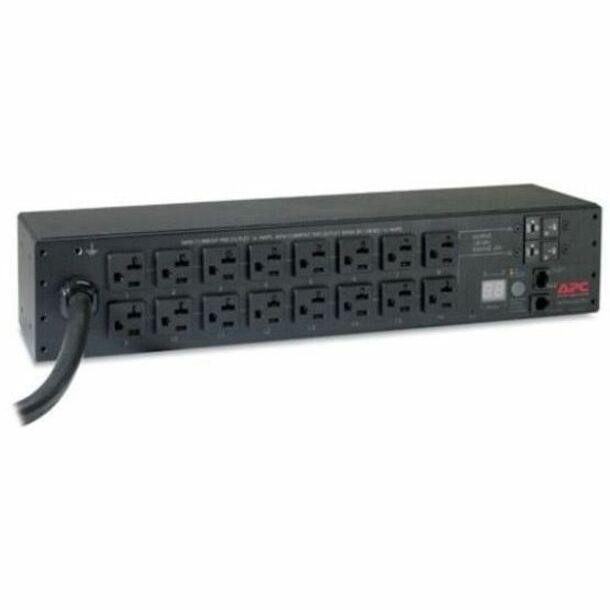

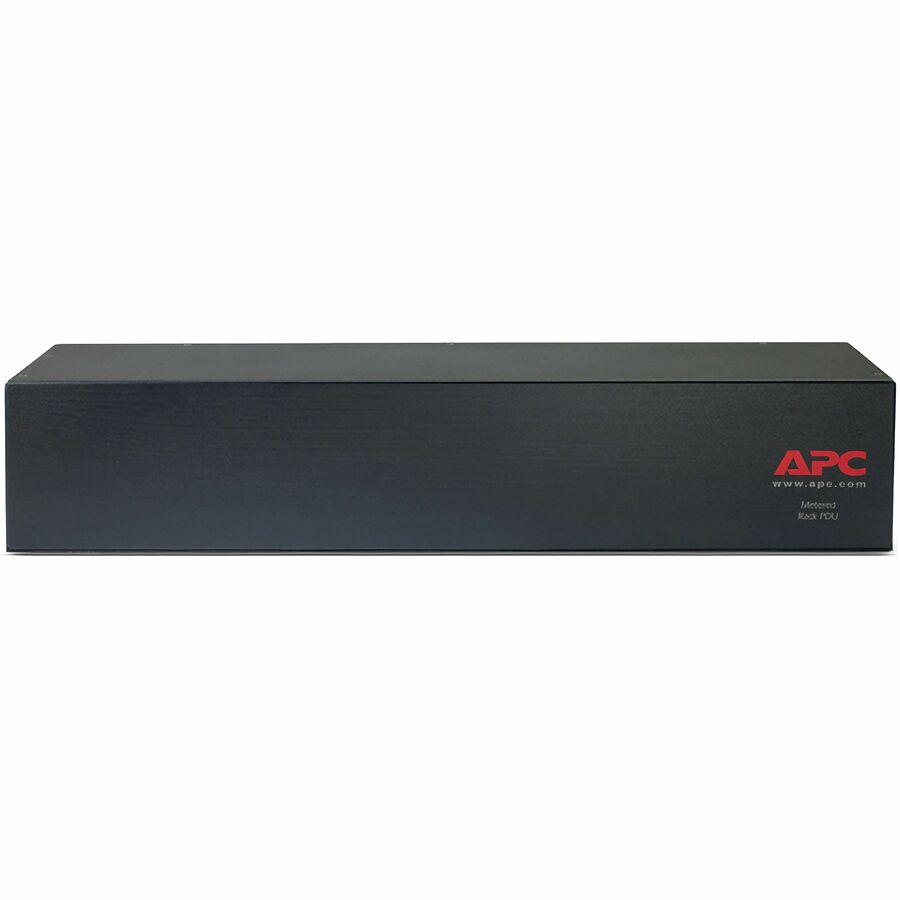

APC by Schneider Electric Rack PDU, Metered, 2U, 30A, 120V, (16) 5-20

Name: APC by Schneider Electric Rack PDU, Metered, 2U, 30A, 120V, (16) 5-20
Brand: APC
SKU: 7V1770
Price: 1122.94 USD
Availability: InStock

APC

PCN#

7V1770

MFG#

AP7802B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,122.94

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Metered
NEMA L5
30P
16 x NEMA 5
20R
100 V, 120 V
Overload Protection
11.98 ft Cord Length
2U
Horizontal
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 12 lbs.

APC NetShelter Metered Rack PDU, 2U, 30A, 120V, 16 NEMA 5-20 outlet

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AP7802B
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	Metered Rack
Product Name	Rack PDU, Metered, 2U, 30A, 120V, (16) 5-20
Marketing Information	It is a metered rack PDU designed for 2U horizontal mounting. It supports a maximum current of 30A and operates at 120V. The PDU features 16 NEMA 5-20R outlets and a 12-foot power cord with a NEMA L5-30P input plug. It has a load capacity of 2880 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.
Product Type	PDU

Technical Information

PDU Type	Metered
Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA 5-20R
Receptacle Detail	16 x NEMA 5-20R
Protection Type	Overload Protection

Power Description

Input Voltage	100 V 120 V
Output Voltage	120 V AC
Input Current	30 A

Physical Characteristics

Mounting Orientation	Horizontal
Mounting Preference	No Preference
Mount Type	Rack-mountable
Placement	Front Rear
Rack Height	2U
Cord Length	11.98 ft
Height	3.5"
Width	17.5"
Depth	4.4"
Weight (Approximate)	7.41 lb

Miscellaneous

For Country/Region	United States
Package Contents	Rack PDU, Metered, 2U, 30A, 120V, (16) 5-20 Cord retention bracket(s) Installation guide Rack mounting brackets User manual
Certifications & Standards	cUL Listed\|CSA\|UL Listed
Product Take Back Program	No
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7802B_ROHS_DECLARATION&p_FileName=AP7802BKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP7802B_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP7802B_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1512009EN&p_File_name=ENVPEP1512009_V2.pdf
End of Life Manual Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1512009_EN&p_File_name=ENVEOLI1512009_V2.pdf
Country of Origin	India
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
Reach Compliance Date	12/10/2025
Halogen Content Performance	Product contains halogen above thresholds
Sustainable Packaging	No
Packaging Contains Recycled Cardboard	Yes

Warranty

Limited Warranty

2 Year
