APC by Schneider Electric Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15

Name: APC by Schneider Electric Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15
Brand: APC
SKU: 7V0114
Price: 645.31 USD
Availability: InStock

APC

PCN#

7V0114

MFG#

AP7800B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$645.31

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

Metered
NEMA 5
15P
8 x NEMA 5
15R
100 V, 120 V
11.98 ft Cord Length
1U
Horizontal
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 8 lbs.

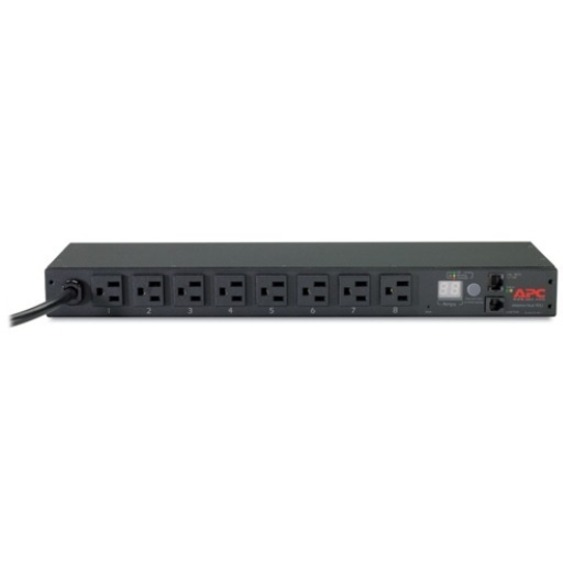

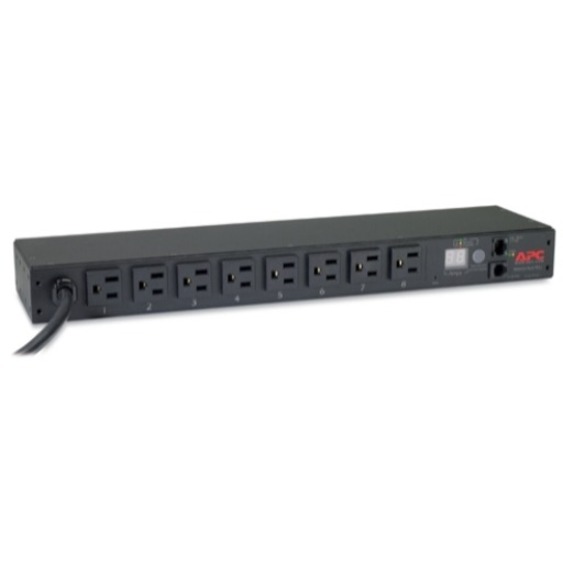

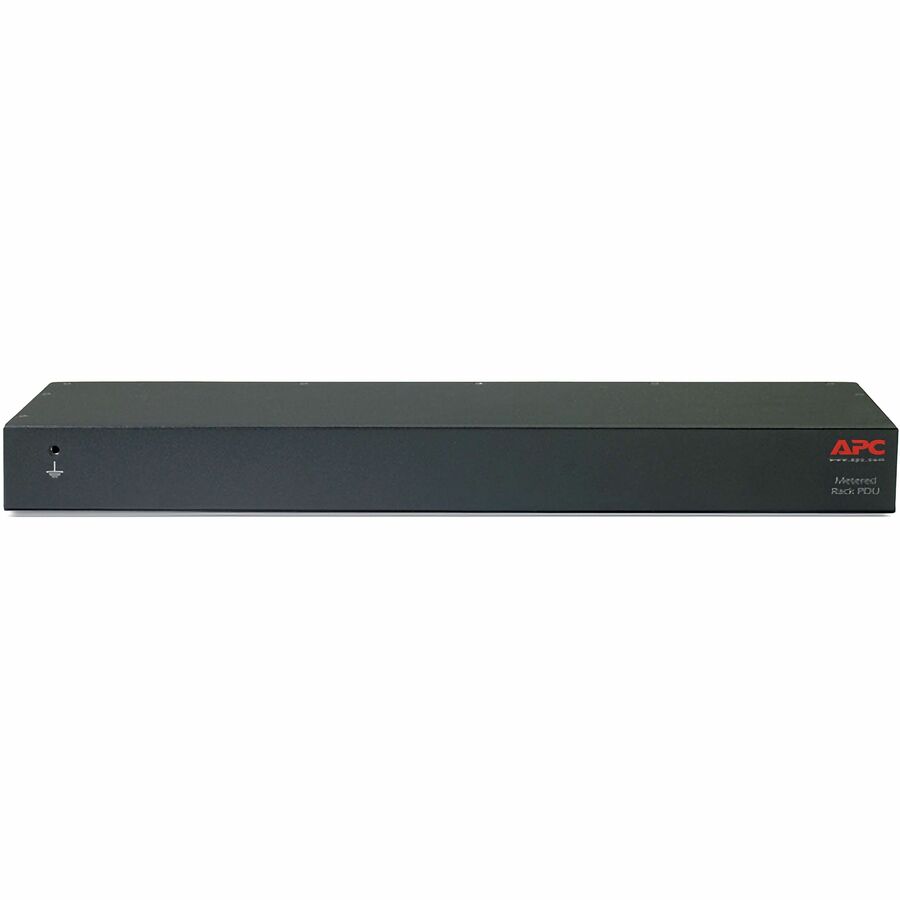

APC NetShelter Metered Rack PDU, 1U, 15A, 100/120V, 8 NEMA 5-15 outlet

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AP7800B
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Name	Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15
Marketing Information	It is a metered rack PDU designed for 1U horizontal mounting. It supports a maximum current of 15A and operates at 120V. The PDU features 8 NEMA 5-15R outlets and a 12-foot power cord with a NEMA 5-15P plug. It has a load capacity of 1440 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.
Product Type	PDU

Technical Information

PDU Type	Metered
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	8 x NEMA 5-15R

Power Description

Input Voltage	100 V 120 V
Output Voltage	120 V AC
Input Current	15 A

Physical Characteristics

Mounting Orientation	Horizontal
Mounting Preference	No Preference
Mount Type	Rack-mountable
Placement	Front Rear
Rack Height	1U
Cord Length	11.98 ft
Height	1.7"
Width	17.5"
Depth	4"
Weight (Approximate)	3.81 lb

Miscellaneous

For Country/Region	United States
Package Contents	Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15 Cord retention bracket(s) Installation guide Rack mounting brackets User manual
Certifications & Standards	cUL Listed\|CSA\|METI Denan\|UL Listed\|VCCI
Product Take Back Program	No
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7800B_ROHS_DECLARATION&p_FileName=AP7800BKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP7800B_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP7800B_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1712014EN&p_File_name=ENVPEP1712014_V2.pdf
End of Life Manual Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1712014_EN&p_File_name=ENVEOLI1712014_EN.pdf
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
Reach Compliance Date	12/10/2025
Sustainable Packaging	No
Packaging Contains Recycled Cardboard	Yes

Warranty

Limited Warranty

2 Year
