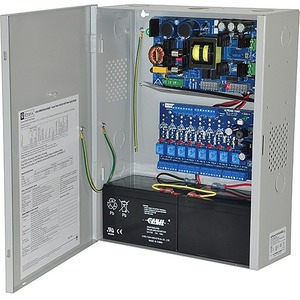

Altronix Power Supply/Charger with Multi-Output Access Power Controllers

by
ALTRONIX
PCN#
3U7450
MFG#
EFLOW104NA8
$386.97
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • External
  • 120 V AC Input
  • 24 V DC Output
Product Condition: New and Factory Fresh
Shipping Weight: 11 lbs.
Altronix Power Supply/Charger with Multi-Output Access Power Controllers
Tech Specs
Specifications

Manufacturer

Altronix Corporation

Manufacturer Part Number

EFLOW104NA8

Manufacturer Website Address

http://www.altronix.com

Brand Name

Altronix

Product Line

eFlow

Product Model

EFLOW104NA8

Product Name

Power Supply/Charger with Multi-Output Access Power Controllers

Marketing Information

eFlow104NA8 distributes and switches power to access control systems and accessories. It converts a 120VAC 60Hz input into eight (8) independently controlled 24VDC fuse protected outputs with a total of 10 amp continuos supply current. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.

Product Type

Power Supply
Power Description

Input Voltage

120 V AC

Output Voltage

24 V DC

Output Voltage Detail

24 V DC @ 5 A

Output Current

5 A
Physical Characteristics

Form Factor

External

Height

15.5"

Width

12"

Depth

4.5"

Weight (Approximate)

8.90 lb
Miscellaneous

Compatibility

Access Control System

Country of Origin

United States
