JITC 1GB 24 COMBO SFP SLOT X 24 SFP/SFP SLOTS X 4 CONSOLE PORT X 1

Name: JITC 1GB 24 COMBO SFP SLOT X 24 SFP/SFP SLOTS X 4 CONSOLE PORT X 1
Brand: ALLIED TELESIS
SKU: 11PL72
Price: 7782.73 USD
Availability: InStock

ALLIED TELESIS

PCN#

11PL72

MFG#

AT-X930-28GSTX-J90

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$7,782.73

Extended & Accidental Damage Protection Plans Available Details

2-Year $418.99

3-Year $535.99

Free Shipping

Estimated Shipment:

Product Highlights:

48 Ports
Manageable
Gigabit Ethernet, 10 Gigabit Ethernet
10/100/1000Base
T, 100/1000Base
X, 10GBase
X
3 Layer Supported
Modular
24 SFP Slots
97 W Power Consumption
Optical Fiber, Twisted Pair
Rack
mountable

Product Condition: New and Factory Fresh

Shipping Weight: 16 lbs.

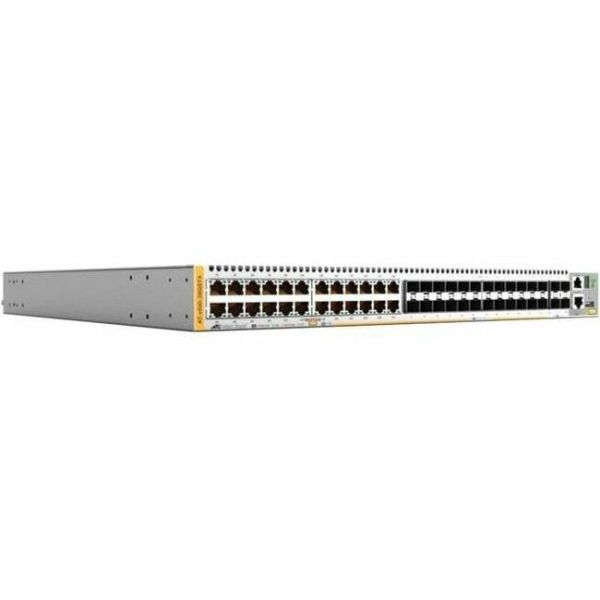

Allied Telesis X930-28GSTX Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	Allied Telesis, Inc
Manufacturer Part Number	AT-X930-28GSTX-J90
Manufacturer Website Address	http://www.alliedtelesis.com
Brand Name	Allied Telesis
Product Series	x930
Product Model	X930-28GSTX
Product Name	X930-28GSTX Ethernet Switch
Marketing Information	x930 Series Advanced Gigabit Layer 3 Stackable Switches with 10G and 40G Uplinks The Allied Telesis x930 Series of stackable Gigabit Layer 3 switches provide resiliency, reliability and high performance, making them ideal for distribution and network core solutions. Allied Telesis x930 Series switches are a high-performing and feature-rich choice for today's networks. With a choice of 24- and 48-port models with 10 Gigabit and 40 Gigabit uplink ports, plus the power of Allied Telesis Virtual Chassis Stacking (VCStackTM) with up to 160Gbps of stacking bandwidth per switch, the x930 Series have the flexibility and performance for key network connectivity. Powerful network management The Allied Telesis Management Framework (AMF) meets the increased management requirements of modern converged networks, automating many everyday tasks including configuration management. AMF has powerful centralized management features that manage a complete network as a single virtual device. The network can be expanded with plug-and-play simplicity, and network node recovery is fully zero-touch. AMF secure mode increases network security with management traffic encryption, authorization, and monitoring. AMF Guestnode allows third party devices, such as IP phones and security cameras, to be part of an AMF network. Network resiliency The convergence of network services in the enterprise has led to increasing demand for highly available networks with minimal downtime. VCStack, in conjunction with link aggregation, provides a network with no single point of failure and an easy, resilient solution for high availability applications. The x930 Series can form a VCStack of up to eight units for enhanced resiliency and simplified device management. Stacks can be created over long distance fiber links with VCStack LD (Long Distance), making the x930 Series the perfect choice for distributed environments. Allied Telesis Ethernet Protection Switched Ring (EPSRingTM), and the standards-based G.8032 Ethernet Ring Protection, ensure that distributed network segments have high-speed, resilient access to online resources and applications. Reliable The x930 Series was designed with reliability in mind, and guarantees continual delivery of essential services. With dual hot-swappable load-sharing power supplies and near-hitless online stack reconfiguration, maintenance may be performed without affecting network uptime. Secure Advanced security features protect the network from the edge to the core. The x930 Series offers powerful control over network traffic types, protection against network attacks, secure management options, loop guard to detect cabling mistakes, and tri-authentication for comprehensive end-point access control. Future-proof The x930 Series ensures a futureproof network, with superior flexibility coupled with the ability to stack multiple units. All x930 Series models feature 10 Gigabit and the option of 40 Gigabit uplinks ports and a comprehensive IPv6 feature set, so are fully ready for future network traffic demands. All x930 Series switches are Software Defined Networking (SDN) ready and are able to support OpenFlow v1.3. Environmentally friendly The x930 Series supports Energy Efficient Ethernet (EEE), automatically reducing the power consumed by the switch whenever there is no traffic on a port. This sophisticated feature can significantly reduce operating costs by reducing the power requirements of the switch and any associated cooling equipment.
Product Type	Ethernet Switch

Technical Information

Features	Hot-swappable Energy Efficient
High Availability Supported	Yes

Interfaces/Ports

Total Number of Network Ports	48
Uplink Port	Yes
Modular	Yes
Stack Port	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	24 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port 24 x 100/1000BASE-X Gigabit Ethernet SFP Expansion Slot 4 x 1/10 Gigabit Ethernet SFP+ Expansion Slot 1 x Module Slot

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Ethernet Technology	Gigabit Ethernet 10 Gigabit Ethernet
Network Technology	10/100/1000Base-T 100/1000Base-X 10GBase-X
Maximum Data Transfer Rate	1.25 GB/s

I/O Expansions

Total Number of Expansion Slots	28
Expansion Slot Type	SFP+ SFP
Number of SFP Slots	24
Number of SFP+ Slots	4

Network & Communication

Layer Supported	3
Networking Standards	IEEE 802.1ae IEEE 802.1x IEEE 802.2 IEEE 802.3 IEEE 802.3ab IEEE 802.3ae IEEE 802.3an IEEE 802.3az IEEE 802.3ba IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.1ab IEEE 802.1p IEEE 802.1ag IEEE 802.1AX IEEE 802.1D IEEE 802.1s IEEE 802.1w IEEE 802.3ad IEEE 802.1ad IEEE 802.1Q IEEE 802.1v IEEE 802.3ac

Management & Protocols

Manageable

Yes

Power Description

Input Voltage	120 V AC 230 V AC
Frequency	50 Hz 60 Hz
Power Source	Power Supply AC
Number of Power Supplies Installed	2
Power Consumption	97 W

Physical Characteristics

Form Factor	Rack-mountable
Height	1.7"
Width	17.3"
Depth	16.5"
Weight (Approximate)	11.24 lb

Miscellaneous

Application/Usage	Network Enterprise
Certifications & Standards	Safety Standards UL60950-1 CAN/CSA-C22.2 No. 60950-1-03 EN60950-1 EN60825-1 AS/NZS 60950.1 Certification UL cUL TUV
Environmental Compliance	China Restriction of Hazardous Substances (China RoHS)
