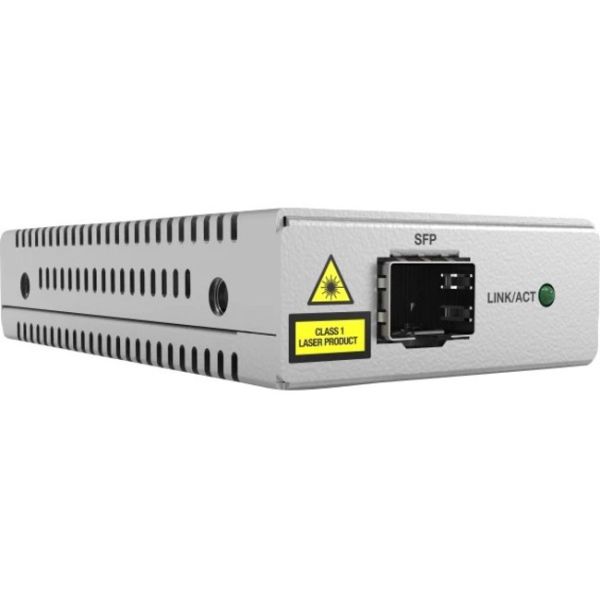

Allied Telesis UMC2000/SP-901 Transceiver/Media Converter

Name: Allied Telesis UMC2000/SP-901 Transceiver/Media Converter
Brand: ALLIED TELESIS
SKU: 6JQ893
Price: 279.42 USD
Availability: InStock

ALLIED TELESIS

PCN#

6JQ893

MFG#

AT-UMC2000/SP-901

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$279.42

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

USB
Multi
mode
Gigabit Ethernet
1000Base
X
0.50 km
1.0 x Expansion Slots
SFP (mini
GBIC)
1 x SFP Slots
USB
TAA Compliant

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

Allied Telesis UMC2000/SP-901 Transceiver/Media Converter

Overview

Tech Specs

Specifications

Manufacturer	Allied Telesis, Inc
Manufacturer Part Number	AT-UMC2000/SP-901
Manufacturer Website Address	http://www.alliedtelesis.com
Brand Name	Allied Telesis
Product Series	UMC
Product Model	UMC2000/SP-901
Product Name	UMC2000/SP-901 Transceiver/Media Converter
Marketing Information	Allied Telesis UMC200 and UMC2000 USB media converters are the perfect fit for today's USB-A technology, as well as for next-generation USB-C specifications. This allows the UMC200/2000 Series to take advantage of technology in both older and newer notebooks, desktop PCs and digital devices. Overview The current standard USB connector is USB Type-A. Even as the world has moved from USB 1 to USB 2 and on to modern USB 3 devices, that connector has stayed the same. Since it only plugs in one way, it has always been necessary to make sure it is correctly oriented before plugging in. However, with USB-C, both ends of the cable are the same, allowing for reversible plug orientation. It can also be plugged in upside down as it will function both ways. The time of differently-shaped connectors for differently-sized devices is coming to a close. USB Type-C is a new connector standard, and it is very small-about one third the size of the old USB Type-A plug. The UMC Series comes with two types of USB cables, allowing for use with older USB-A and the new USB-C products. Extended network UMC Series converters are ideal for extending a fast Ethernet or Gigabit network. The series is designed to be a mobile system to extend the distance of a network by utilizing a USB-A or USB-C port with connectivity to fiberoptic cabling. The UMC Series features a USB port (Type A or C) and either a fixed fiber port (SC, ST or LC) or an SFP port which is capable of accepting a 100MB or 1000MB SFP. VLAN support Many new backbone switch products now support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs), which send extra-long data packets on the network. Some media converters don't support this feature and discard extralong packets-but UMC200/2000 converters are fully compatible with these long packets, making them the perfect solution for today's modern networks. Small and flexible The small size and external power of the UMC Series allows them to be used almost anywhere.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	1
USB	Yes

Media & Performance

Media Type Supported	Optical Fiber
Fiber Mode Supported	Multi-mode
Fiber Optic Wavelength	850 nm
Maximum Distance Supported	0.50 km
Fiber Optic Cable Core/Cladding Specification	50/125 µm 62.5/125 µm

I/O Expansions

Total Number of Expansion Slots	1.0
Expansion Slot Type	SFP (mini-GBIC)
Number of SFP Slots	1

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-X

Power Description

Power Source

USB

Physical Characteristics

Height	0.9"
Width	2.2"
Depth	4"
Weight (Approximate)	6 oz

Miscellaneous

TAA Compliant

Yes
