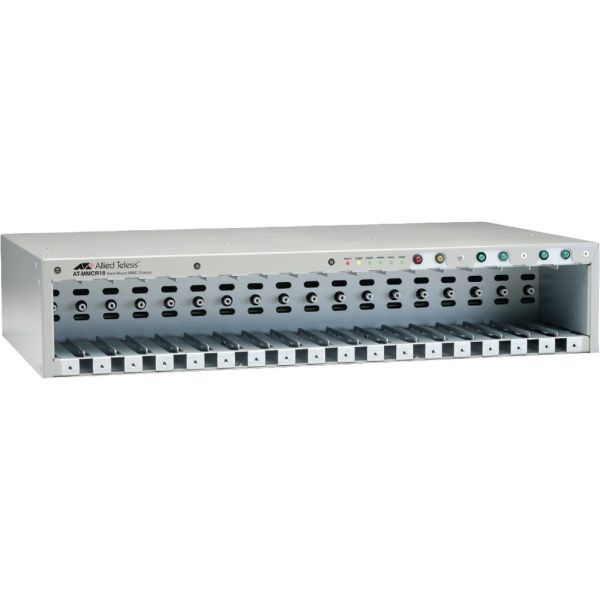

Allied Telesis MMCR18 Media Conversion Rack-Mount Chassis

Name: Allied Telesis MMCR18 Media Conversion Rack-Mount Chassis
Brand: ALLIED TELESIS
SKU: 8X8949
Price: 728.86 USD
Availability: InStock

ALLIED TELESIS

PCN#

8X8949

MFG#

AT-MMCR18-60

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$728.86

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

18 Slot
2U
Rack
mountable
TAA Compliant

Product Condition: New and Factory Fresh

Shipping Weight: 24 lbs.

Allied Telesis MMCR18 Media Conversion Rack-Mount Chassis

Overview

Tech Specs

Specifications

Manufacturer	Allied Telesis, Inc
Manufacturer Part Number	AT-MMCR18-60
Manufacturer Website Address	http://www.alliedtelesis.com
Brand Name	Allied Telesis
Product Model	MMCR18
Product Name	MMCR18 Media Conversion Rack-Mount Chassis
Marketing Information	Media converter flexibility The Allied Telesis MMCR18 is a two rack unit high chassis, which enables network managers to use up to 18 MMC series media converters in a standard 19 inch rack. For redundancy, it can be powered with either one or two Power Supply Units (PSUs). Power options The MMCR18 Chassis can be powered with either an AC or DC power supply, eliminating the need for multiple power connections. Allied Telesis also offers an optional hot swappable PSU to eliminate network downtime. The unit saves space in the wiring closet, and minimizes the number of power connections required. Single-unit media converters can be removed from the MMCR18 and deployed individually to accommodate network modifications. By incorporating a backplane with 18 different power entry modules integrated with the printed circuit board, power is equally distributed among all media converters-whether using one or two PSUs. Rack-mount design Designed with a simple mounting system, each individual media converter is plugged into the back plane and secured with the included mounting rail. The rack-mount chassis includes six status LEDs on the front panel indicating power, temperature, fan and fault status.
Product Type	Media Converter Chassis

I/O Expansions

Total Number of Expansion Slots

Physical Characteristics

Compatible Rack Unit	2U
Form Factor	Rack-mountable
Height	3.4"
Width	17.3"
Depth	10"
Weight (Approximate)	9.48 lb

Miscellaneous

Package Contents	MMCR18 Media Conversion Rack-Mount Chassis 1 x AC universal power supply
Certifications & Standards	TÜV
Environmentally Friendly	Yes
Environmental Certification	REACH RoHS WEEE
Country of Origin	China
TAA Compliant	Yes
