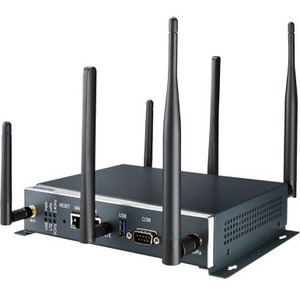

Advantech WISE-3610 Wi-Fi 5 IEEE 802.11ac 2 SIM Ethernet, Cellular Modem/Wireless Router

Name: Advantech WISE-3610 Wi-Fi 5 IEEE 802.11ac 2 SIM Ethernet, Cellular Modem/Wireless Router
Brand: ADVANTECH
SKU: 8905AZ
Price: 1164.5 USD
Availability: InStock

ADVANTECH

PCN#

8905AZ

MFG#

WISE-3610ILS-51A1E

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,164.50

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

3G
LTE
2.40 GHz ISM Band
5 GHz UNII Band(8 x External)
1 x Network Port
1 x Broadband Port
USB
Gigabit Ethernet
VPN Supported
Wall Mountable

Product Condition: New and Factory Fresh

Shipping Weight: 3 lbs.

Advantech WISE-3610 Wi-Fi 5 IEEE 802.11ac 2 SIM Ethernet, Cellular Modem/Wireless Router

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	WISE-3610ILS-51A1E
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Model	WISE-3610
Product Name	WISE-3610 Private LoRa Network IoT Gateway EU868
Marketing Information	WISE-3610 is Qualcomm ARM Cortex A based hardware platform, which is operating at OpenWRT, described as a Linux distribution for embedded devices. The Advantech WISE3610 Industrial Router is Advantech IoT gateway design for smart city, Industrial 4.0 applications, even those in harsh environment, leveraging wireless sensor technology. This IoT gateway can aggregate both the wireless sensor networks (WSN), including Low Power WAN (LPWAN) technology by Advantech private LoRa technology, wired sensors and ties them into an IP network. With modular slot design, it can agilely adapt to a variety of wireless technologies at regional RF bands, wireless communication protocol by various uplink requirement and quickly go to market.
Packaged Quantity	1
Product Type	Modem/Wireless Router

Technical Information

Wi-Fi Generation

Wi-Fi 5

Wireless Specifications

Broadband Transmission Technology	Ethernet Cellular
Wireless LAN Standard	IEEE 802.11ac
ISM Band	Yes
UNII Band	Yes
ISM Maximum Frequency	2.40 GHz
UNII Maximum Frequency	5 GHz
Cellular Generation	3G
Cellular Data Connectivity Technology	LTE
Number of External Antennas	8

Interfaces/Ports

Number of Network (RJ-45) Ports	1
USB	Yes
Number of Broadband (RJ-45) Ports	1

Network & Communication

Ethernet Technology	Gigabit Ethernet
VPN Supported	Yes
Multi-SIM Supported	Yes
Number of SIM Card Supported	2
SIM Size Supported	Micro

Physical Characteristics

Form Factor	Wall Mountable
Height	1.5"
Width	7.4"
Depth	5.9"

Miscellaneous

Package Contents	WISE-3610 Private LoRa Network IoT Gateway EU868 1 x 36W 12V 3A AC/DC Power Adaptor 2 x Antenna 2.4Ghz / 5Ghz SMA Male Reverse 2 x LoRa Dipole Antenna, 1dBi 863~870 MHz (EU868 SKU) 2 x LoRa Dipole Antenna, 1dBi 902~928 MHz (NA915, JP923 SKUs) 2 x LoRa Dipole Antenna, 1.5dBi 470-510 MHz (CN470 SKU) 1 x Wall Mounting Bracket Kit with Screws
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	Taiwan
