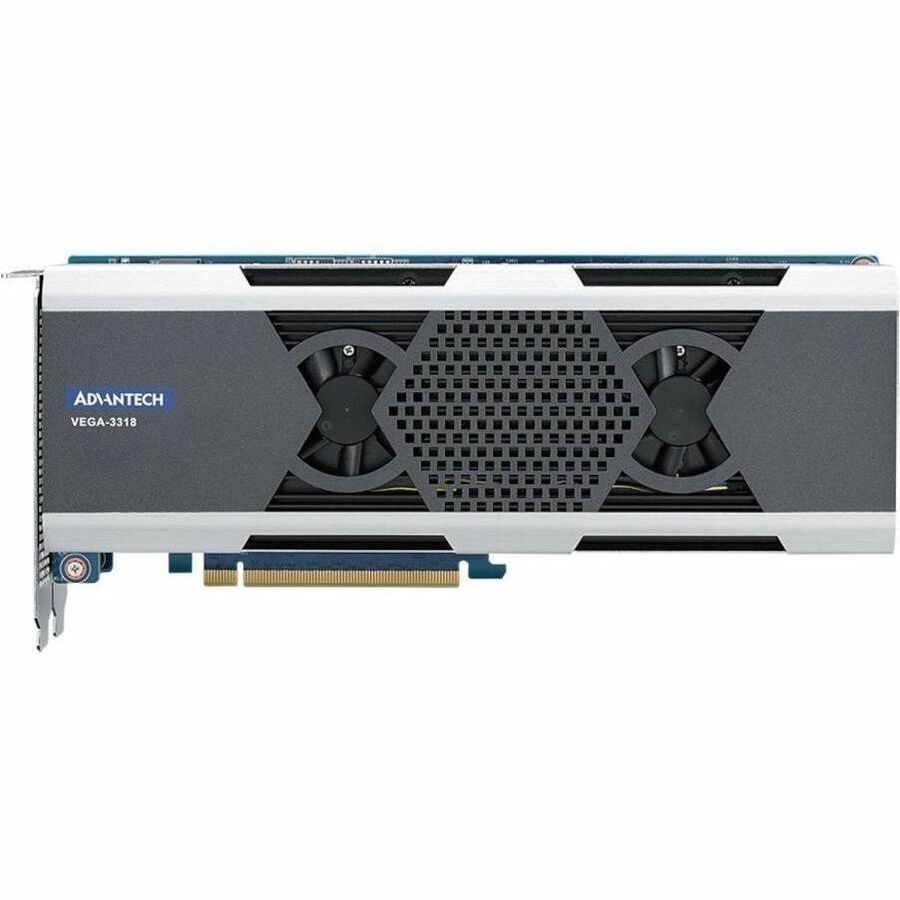

8-CH 4K HEVC/AVC/MPEG-2 ENCODING DECODING TRANSCODING ACC

Name: 8-CH 4K HEVC/AVC/MPEG-2 ENCODING DECODING TRANSCODING ACC
Brand: ADVANTECH
SKU: 7CG515
Price: 11362.58 USD
Availability: InStock

ADVANTECH

PCN#

7CG515

MFG#

VEGA-3318-A0T0

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$11,362.58

Extended & Accidental Damage Protection Plans Available Details

2-Year $892.99

3-Year $1,226.99

Free Shipping

Estimated Shipment:

Product Highlights:

Functions: Video Transcoder, Video Encoding, Video Decoding
2160p, 1080p, 720p
3840 x 2160
60 fps
4K, Full HD, HD
MPEG
2, HEVC, AVC, H.265 (HEVC), YUV
PC, Linux
Windows Server 2012, Windows Server 2012 R2 x64, Windows Server 2008 R2 x64 Supported Operating System
Plug
in Card

Product Condition: New and Factory Fresh

Shipping Weight: 4 lbs.

Advantech 8-ch 4K HEVC/AVC/MPEG-2 Encoding, Decoding & Transcoding Accelerator

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	VEGA-3318-A0T0
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Series	VEGA-3318
Product Name	8-ch 4K HEVC/AVC/MPEG-2 Encoding, Decoding & Transcoding Accelerator
Marketing Information	The VEGA-3318 is the world's first commercial-off-the-shelf video accelerator able to perform low-latency, professional-grade 8-ch 4Kp60 HEVC transcoding in an ultra-low power PCI Express format that can be integrated into standard servers via Linux API. Up to four VEGA-3318 accelerators can be integrated into a 1U server supporting up to 32 live UHD HEVC ABR streams per rack unit - the highest density available in the market. This enables agile, scalable, energy and cost efficient data center deployments to address the growing demand of live UHD OTT video streaming in the cloud. The CAPEX and OPEX savings are significant. VEGA-3318 accelerated solutions benefit from an up to 30x performance boost and up to a 20X reduction in power consumption and rack space when compared to non-accelerated solutions The VEGA-3318 supports UHD, HD and SD formats and HEVC, AVC and MPEG-2 codecs including 10-bit profiles, 4:2:2 chroma subsampling and ABR streaming. Developers can leverage Advantech's SDK which supports Linux and Windows operating systems, FFmpeg and GStreamer. In addition, Advantech has created software drivers that are virtualization friendly and support OpenStack. Advantech also offers hardware and software design and customization services for maximum deployment flexibility
Product Type	Video Encoder/Decoder

Technical Information

Functions	Video Transcoder Video Encoding Video Decoding
Maximum Resolution	3840 x 2160
Screen Mode Supported	4K Full HD HD
Maximum Frame Rate	60 fps
Video Formats	MPEG-2 HEVC AVC H.265 (HEVC) YUV
Platform Supported	PC Linux
Supported Video Modes	2160p 1080p 720p

Software

Operating System Supported

Windows Server 2012
Windows Server 2012 R2 x64
Windows Server 2008 R2 x64

Physical Characteristics

Form Factor

Plug-in Card
