4K HEVC/AVC ENCODE DECODE AND TRANSCODE PCIE CARD FILE BASE

Name: 4K HEVC/AVC ENCODE DECODE AND TRANSCODE PCIE CARD FILE BASE
Brand: ADVANTECH
SKU: 7CG511
Price: 2744.09 USD
Availability: InStock

ADVANTECH

PCN#

7CG511

MFG#

VEGA-3311-A0M0

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,744.09

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

Functions: Video Encoding, Video Decoding
2160p, 1080p, 720p
3840 x 2160
60 fps
4K, Full HD, HD
NV12, HEVC, AVC
SDI
Network (RJ
45)
PC
Windows Server 2012, Windows Server 2012 R2 x64, Windows Server 2008 R2 x64 Supported Operating System

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

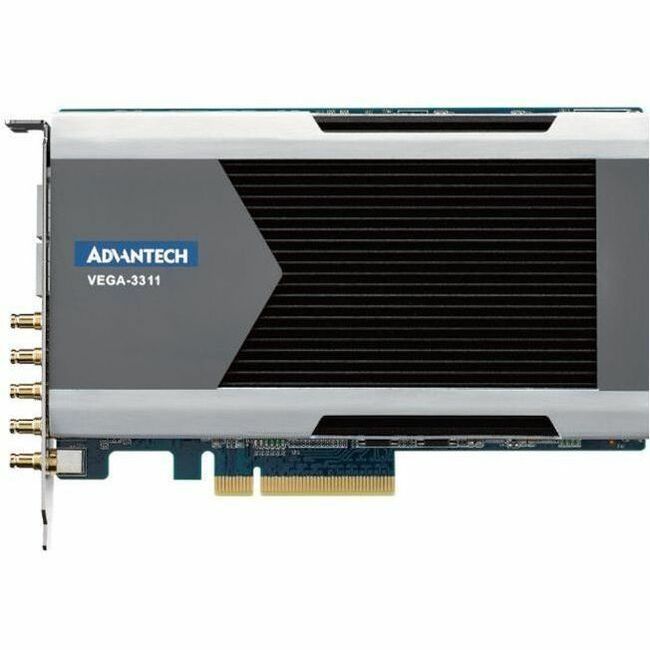

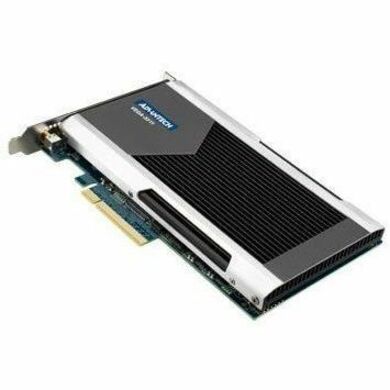

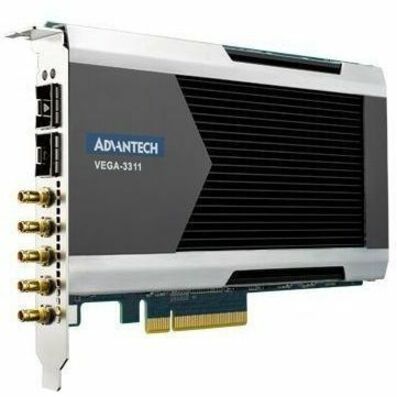

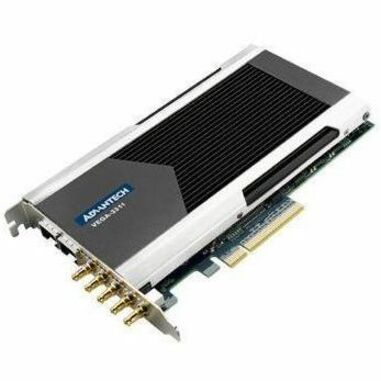

Advantech 4K HEVC/AVC Broadcast Video Encoding Card

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	VEGA-3311-A0M0
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Model	VEGA-3311
Product Name	4K HEVC/AVC Broadcast Video Encoding Card
Marketing Information	VEGA-3311 enables HEVC, AVC, real-time 1-ch 4K UltraHD (2160p60) and 4-ch FHD (1080p60) encode. It is particularly relevant for 4K UltraHD transmission which requires a much higher stream capacity VEGA-3311 is tailored for professional media processing and are capable of performing professional grade 4Kp60 Main10 profile HEVC encoding at less than 35W power consumption. The VEGA-3311 adapter additionally features 4K video capture over built-in 4-ch SDI-3G or 1-ch SDI-12G video inputs for acquisition-based encoding and 4-ch SDI-3G video outputs for acquisition-based decoding in contribution workflows. VEGA-3311 can also support low latency transmission of uncompressed or lightly compressed video over standard IP networks according to industry agreed standards. This card feature a simple-to-use API and example code for FFmpeg and GStreamer multimedia frameworks to streamline product development and their integration into existing applications.
Product Type	Video Encoder/Decoder

Technical Information

Functions	Video Encoding Video Decoding
Maximum Resolution	3840 x 2160
Screen Mode Supported	4K Full HD HD
Maximum Frame Rate	60 fps
Video Formats	NV12 HEVC AVC
Platform Supported	PC
Supported Video Modes	2160p 1080p 720p

Interfaces/Ports

SDI	Yes
Network (RJ-45)	Yes

Software

Operating System Supported

Windows Server 2012
Windows Server 2012 R2 x64
Windows Server 2008 R2 x64
