2-CH 4K HEVC/AVC/MPEG-2 ENCODING DECODING TRANSCODING ACC

Name: 2-CH 4K HEVC/AVC/MPEG-2 ENCODING DECODING TRANSCODING ACC
Brand: ADVANTECH
SKU: 7CG510
Price: 2744.09 USD
Availability: InStock

ADVANTECH

PCN#

7CG510

MFG#

VEGA-3310-A0

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,744.09

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

Functions: Video Encoding, Video Decoding, Video Transcoder
2160p, 1080p, 720p
3840 x 2160
60 fps
4K, Full HD
H.265 (HEVC), H.264 AVC, MPEG
2
PC, Linux
Windows Server 2012, Windows Server 2012 R2 x64, Windows Server 2008 R2 x64, Ubuntu 14.04 Supported Operating System

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

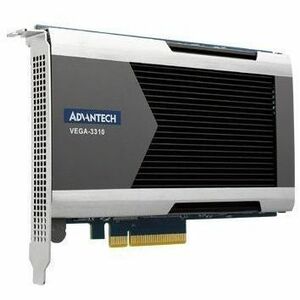

Advantech 4K HRVC & AVC Broadcast Video Encoding/Decoding/Transcoding Card

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	VEGA-3310-A0
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Series	VEGA-3300
Product Name	4K HRVC & AVC Broadcast Video Encoding/Decoding/Transcoding Card
Marketing Information	VEGA-3310 is a high performance video processing accelerator card supporting professional grade 4K/UHD encoding, decoding and transcoding at a very low power consumption. It allows these features to be added to systems that support a standard PCI Express architecture such as PC/IT server based video applications. The technology underlying VEGA-3310 is the latest encoding/decoding SoC. Each device supports HEVC, AVC, and MPEG2 real-time encoding, decoding, and transcoding at up to 4Kp60 with 10 bit colour depth and 4:2:2 chroma sampling. HEVC compression is particularly relevant for 4K UltraHD transmission which requires a much higher stream capacity. These bandwidth reduction improvements are achieved at the penalty of much higher computation complexity, with two general purpose server class processors required to perform a 4K 60fps software-based broadcast quality HEVC encoding in real time. The technology behind VEGA-3310 can do the same task in under 35W, and VEGA-3310 can also support up to 4Kp120 high frame rate for next generation sports broadcasts and 360 degree VR applications This card feature a simple-to-use API and example code for FFmpeg and GStreamer multimedia frameworks to streamline product development and integration into existing applications.
Product Type	Video Encoder

Technical Information

Functions	Video Encoding Video Decoding Video Transcoder
Maximum Resolution	3840 x 2160
Screen Mode Supported	4K Full HD
Maximum Frame Rate	60 fps
Video Formats	H.265 (HEVC) H.264 AVC MPEG-2
Platform Supported	PC Linux
Supported Video Modes	2160p 1080p 720p

Software

Operating System Supported

Windows Server 2012
Windows Server 2012 R2 x64
Windows Server 2008 R2 x64
Ubuntu 14.04
