4KP60 HEVC ENCODER CARD

Name: 4KP60 HEVC ENCODER CARD
Brand: ADVANTECH
SKU: 7CG508
Price: 3467.97 USD
Availability: InStock

ADVANTECH

PCN#

7CG508

MFG#

VEGA-3301E

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$3,467.97

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

Functions: Video Encoding
2160p
4096 x 2160
60 fps
4K UHD, 4K, Full HD
H.265 (HEVC), H.264, H.265
DisplayPort
SDI
PC, Linux
Windows 8, Windows 8.1, Windows 7 x64, Windows Server 2012, Windows Server 2012 R2 x64, Windows Server 2008 R2 x64, Ubuntu 14.04 Supported Operating System

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

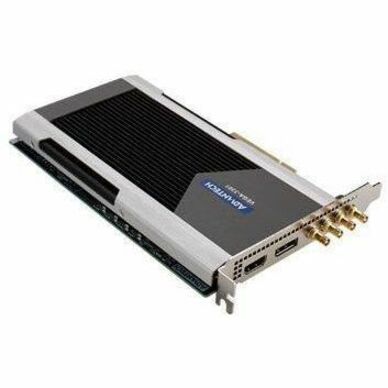

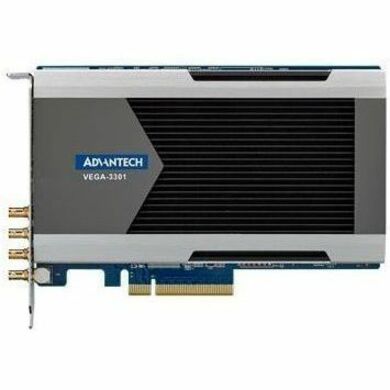

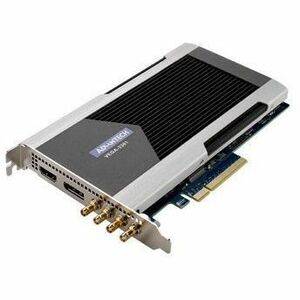

Advantech 4K/60fps HEVC Broadcast Video Encoder Card

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	VEGA-3301E
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Series	VEGA-3300
Product Name	4K/60fps HEVC Broadcast Video Encoder Card
Marketing Information	VEGA-3301 enables real-time 4K UltraHD (2160p60) HEVC encoding at up to 20x less power consumption than a software-only solution. The HEVC/H.265 codec is gaining momentum because it reduces bit rates by approximately 50% when compared to an equivalent quality video stream encoded using H.264, enabling more channels or higher resolution video delivery over the same infrastructure. It is particularly relevant for 4K UltraHD transmission which requires a much higher stream capacity. These improvements are achieved at the penalty of much higher computation complexity, with up to four general purpose server class processors required to perform a 4K 60fps software-based broadcast quality HEVC encoding in real time. VEGA-3301 is tailored for professional media processing and are capable of performing professional grade 4Kp60 Main10 profile HEVC encoding at less than 35W power consumption. The VEGA-3301 adapter additionally features 4K video capture over built-in HDMI 2.0, Display Port or 4-ch SDI-3G video inputs for acquisition-based encoding in contribution workflows. This card feature a simple-to-use API and example code for FFmpeg and GStreamer multimedia frameworks to streamline product development and their integration into existing applications.
Product Type	Video Encoder

Technical Information

Functions	Video Encoding
Maximum Resolution	4096 x 2160
Screen Mode Supported	4K UHD 4K Full HD
Maximum Frame Rate	60 fps
Video Formats	H.265 (HEVC) H.264 H.265
Platform Supported	PC Linux
Supported Video Modes	2160p

Interfaces/Ports

DisplayPort	Yes
HDMI	Yes
SDI	Yes

Software

Operating System Supported

Windows 8
Windows 8.1
Windows 7 x64
Windows Server 2012
Windows Server 2012 R2 x64
Windows Server 2008 R2 x64
Ubuntu 14.04
