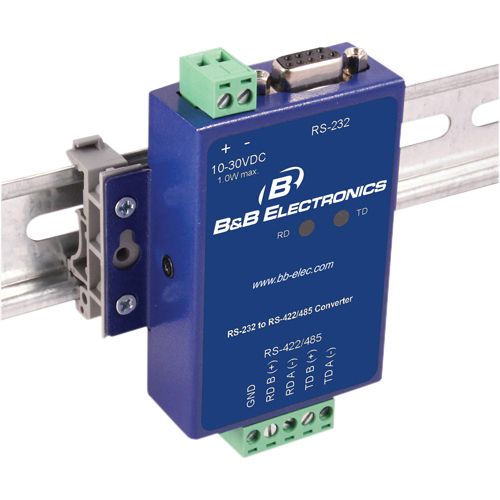

B+B SmartWorx Isolated RS-232 To RS-422/485 Panel Mount Converter

Name: B+B SmartWorx Isolated RS-232 To RS-422/485 Panel Mount Converter
Brand: ADVANTECH
SKU: 6C3121
Price: 157 USD
Availability: InStock

ADVANTECH

PCN#

6C3121

MFG#

SCP311T-DFTB3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$157.00

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x 9
pin DB
9 RS
232 Serial Female
Terminal Block RS
422/485 Serial

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

B+B SmartWorx Isolated RS-232 To RS-422/485 Panel Mount Converter

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	SCP311T-DFTB3
Manufacturer Website Address	http://www.advantech.com
Brand Name	B+B SmartWorx
Product Model	SCP311T-DFTB3
Product Name	Isolated RS-232 To RS-422/485 Panel Mount Converter
Marketing Information	Our SCP series RS-232 to RS-422/485 serial converters are compact and tough. Each model is designed and tested to meet heavy industrial EMC standards. The RS-232 signal is connected through a female DB9 connector. The RS-422/485 (2-Wire and 4- Wire) signal is connected through a removable terminal block, making wiring easy. Power is connected through a two position removable terminal block. Our bit-wise enabled circuitry automatically detects the character time-out eliminating the need to set DIP Switches for the baud rate.
Product Type	Data Transfer Adapter

Technical Information

Adapter Type	Serial
Connector Type on First End	DB-9 RS-232 Serial - Female
Connector on First End Details	1 x 9-pin DB-9 RS-232 Serial Female
Connector Type on Second End	Terminal Block RS-422/485 Serial
Connector on Second End Details	Terminal Block RS-422/485 Serial
Features	Surge Protection LED Indicator

Physical Characteristics

Product Material	Metal
Weight (Approximate)	5.28 oz

Miscellaneous

Certifications & Standards	FCC Class B CE UL UL 508 UL File Number: E222870 EN61000-6-2:2005 EN61000-4-2:2008 EN61000-4-3:2006 EN61000-4-4:2004 EN61000-4-5:2005 EN61000-4-6:2005 CISPR Class B (EN55022)
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
