32CH ISOLATED DIGITAL I/O CARD W/COUNTER PCI CARD

Name: 32CH ISOLATED DIGITAL I/O CARD W/COUNTER PCI CARD
Brand: ADVANTECH
SKU: HE2657
Price: 176.77 USD
Availability: InStock

ADVANTECH

PCN#

HE2657

MFG#

PCI-1750-BE

$176.77

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

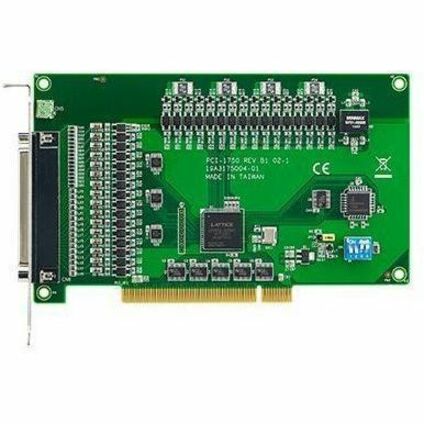

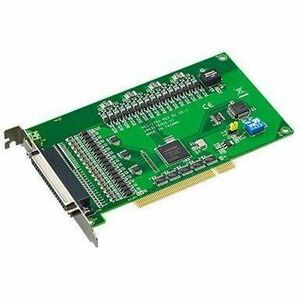

B+B SmartWorx 32-ch Isolated Digital I/O (NPN DO) and Counter PCI Card

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	PCI1750BE
Manufacturer Website Address	http://www.advantech.com
Brand Name	B+B SmartWorx
Product Model	PCI-1750
Product Name	32-ch Isolated Digital I/O (NPN DO) and Counter PCI Card
Marketing Information	PCI-1750/1750SO offers 16 isolated digital input channels, 16 isolated digital output channels, and one isolated counter/timer for the PCI bus. With isolation protection of 2,500 VDC, and dry contact support, PCI-1750/1750SO is ideal for industrial applications where high-voltage protection is required. Each I/O channel of the PCI-1750/1750SO corresponds to a bit in a PC I/O port. This makes PCI-1750/1750SO very easy to program. This card also offers a counter or timer interrupt and two digital input interrupt lines to a PC, so you can then easily configure the card with software.
Product Type	I/O Module

Technical Information

Connector Type	DB-37 - Female
Features	Timer/Counter High Voltage Protection

Power Description

Input Voltage	2 V DC 5 V DC 50 V DC 2500 V DC
Power Source	DC

Physical Characteristics

Height	3.9"
Length	6.9"

Environmental Conditions

Humidity (Non-condensing)	5% to 95%
Storage Temperature	-4°F (-20°C) to 176°F (80°C)

Miscellaneous

Application/Usage	Industrial
Country of Origin	Taiwan
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
