4 USB3.0 PORTS EXPANSION CARD (PCIEX4) PCIE CARD USB

Name: 4 USB3.0 PORTS EXPANSION CARD (PCIEX4) PCIE CARD USB
Brand: ADVANTECH
SKU: HG2428
Price: 192.45 USD
Availability: InStock

ADVANTECH

PCN#

HG2428

MFG#

PCE-USB4-00A1E

$192.45

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty24 Month

Shipping Weight: 1 lbs.

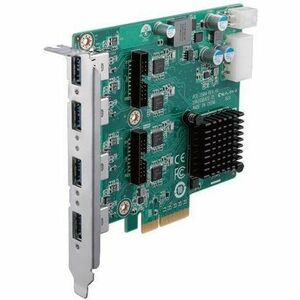

Advantech PCIe x4, 4-port USB 3.0 Expansion Card

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	PCE-USB4-00A1E
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Model	PCE-USB4
Product Name	PCIe x4, 4-port USB 3.0 Expansion Card
Marketing Information	PCE-USB4 is a 4-port PCIe x4 expansion card aimed at industrial imaging applications. Featuring four independent Renesas µPD720202 USB 3.0 host controllers, a Gen 2 PCI Express® x4 interface, and a per-port bandwidth of 5 Gbps when operating four ports simultaneously, PCE-USB4 delivers maximal per-port performance. PCE-USB4 features four USB 3.0 ports (for expansion, PCE-USB8 features eight USB 3.0 ports) with 1500 mA current to ensure stable power for external USB devices. PCE-USB4 is a high-bandwidth industrial-power expansion card designed for machine vision, factory automation, and medical applications, as well as any other applications that require high data transfer speeds.
Product Type	USB Adapter

Technical Information

Host Interface

PCI Express x4

Media & Performance

Data Transfer Rate

Interfaces/Ports

Software

Operating System Supported

Physical Characteristics

Height	4.4"
Length	4.6"

Miscellaneous

Platform Supported	PC
Environmental Compliance	China Restriction of Hazardous Substances (China RoHS)

Warranty

Limited Warranty

24 Month
