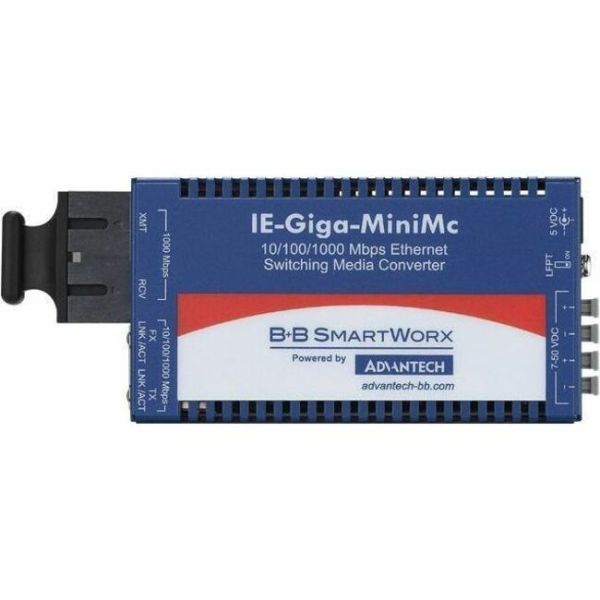

Advantech 10/100/1000Mbps Miniature Media Converter

Name: Advantech 10/100/1000Mbps Miniature Media Converter
Brand: ADVANTECH
SKU: 13CK40
Price: 202.74 USD
Availability: InStock

ADVANTECH

PCN#

13CK40

MFG#

IMC-370I-SM-B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$202.74

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x Network (RJ
45)
1 x SC Ports
DuplexSC Port
USB
Single
mode
1310 nm Fiber
Gigabit Ethernet
10/100/1000Base
TX
1000 Mbit/s
10 km
AC/DC
Wall Mountable, Compact

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

Advantech 10/100/1000Mbps Miniature Media Converter

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	IMC370ISMB
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Line	IE-Giga-MiniMc
Product Series	IMC-370I
Product Model	IMC-370I-SM-B
Product Name	10/100/1000Mbps Miniature Media Converter
Marketing Information	The IMC-370I series offers the most compact media converters. They can extend the 10/100/1000Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100/1000 auto negotiation on the copper port and 1000Mbps full-duplex on the fiber port, the IMC-370I series serves as a media and data rate converter that has NEMA TS2 rating, making it ideal for use in traffic applications. The IMC-370I series supports Link Fault Pass Through (LFPT) functionality which can be enabled/disabled by a DIP switch on the unit. LFPT is a troubleshooting feature that combines TX LinkLoss (Twisted Pair, copper interface) and FX LinkLoss (Fiber, fiber interface) from both local and remote IMC Networks media converters, when used in pairs. This feature, when enabled, will pass a link fault through the device at each segment. If a link fails on one interface of the media converter, the media converter will force the link down on its link partner and then forward it to the next interface. The IMC-370I supports plug-n-play functionality, auto negotiation, and AutoCross operation. It can be powered by AC/DC power, dual USB cable, or via installation in the centrally-powered media converter chassis.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
USB	Yes
Number of Network (RJ-45) Ports	1
Number of SC Ports	1
SC Port Type	Duplex

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Single-mode
Fiber Optic Wavelength	1310 nm
Maximum Data Transfer Rate	1000 Mbit/s
Maximum Distance Supported	10 km

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-TX

Power Description

Power Source	AC/DC
Plug/Connector Type	Barrel
Frequency	50 Hz 60 Hz

Physical Characteristics

Form Factor	Wall Mountable Compact
Height	0.8"
Width	1.8"
Depth	3.4"
Weight (Approximate)	11.20 oz

Miscellaneous

Application/Usage	Network
Certifications & Standards	FCC Class A UL/cUL NEMA TS2 for traffic control
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
