Advantech IDS-3219 19" Class LED Touchscreen Monitor - 5 ms

Name: Advantech IDS-3219 19" Class LED Touchscreen Monitor - 5 ms
Brand: ADVANTECH
SKU: 7CG309
Price: 769.09 USD
Availability: InStock

ADVANTECH

PCN#

7CG309

MFG#

IDS-3219R-35SXA1E

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$769.09

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

19" Viewable
5
wire Resistive
1280 x 1024
SXGA
16.7 Million Colors
350 Nit
LED Backlight
USB
VGA
2 Year

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 17 lbs.

Advantech IDS-3219 19" Class LED Touchscreen Monitor - 5 ms

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	IDS3219R35SXA1E
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Model	IDS-3219
Product Name	19" SXGA Industrial Panel Mount Monitor
Marketing Information	Introduction The Advantech IDS-3219 Embedded Industrial Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports front and VESA mounting which brings the benefits of easy installation and provides flexibility for different applications.
Product Type	LED Touchscreen Monitor

Technical Information

Screen Size Class	19"
Viewable Screen Size	19"
Screen Mode	SXGA
Response Time	5 ms
Horizontal Viewing Angle	170°
Vertical Viewing Angle	160°
Mount Type	Panel Mount Front Mount
Backlight Technology	LED
Features	Anti-reflective On-screen Display (OSD) Power Switch AutoTune
Glass Hardness	3H

Video

Maximum Resolution	1280 x 1024
Color Supported	16.7 Million Colors
Native Contrast Ratio	1,000:1
Brightness	350 Nit

Touchscreen Information

Touchscreen Type

5-wire Resistive

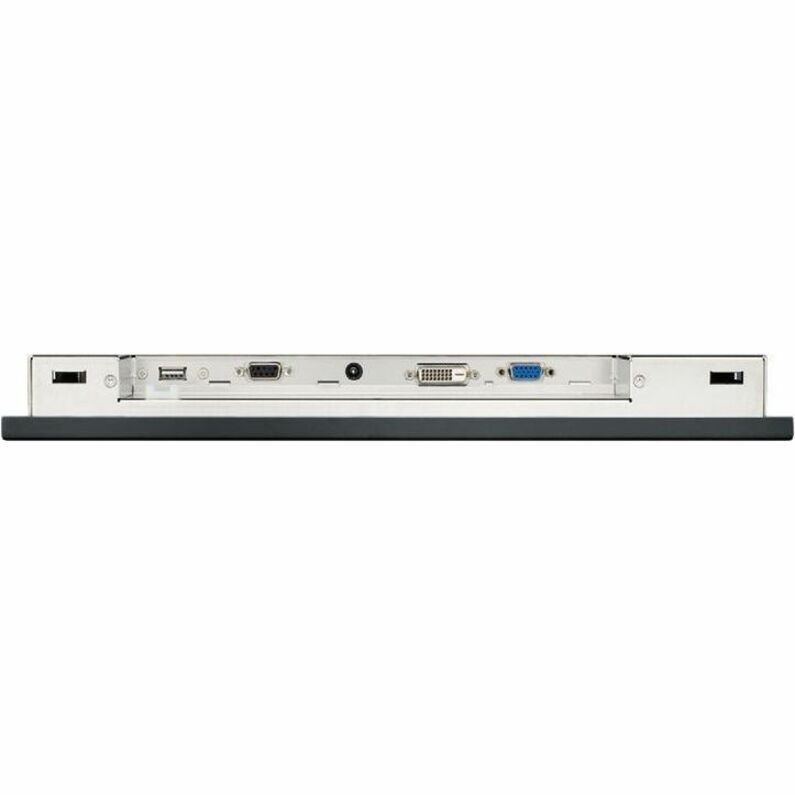

Interfaces/Ports

USB	Yes
VGA	Yes
Number of USB Ports	1
Number of DVI Ports	1
Number of VGA Ports	1
DVI-D	Yes

Environmental Conditions

Operating Temperature Range	32°F (0°C) to 113°F (45°C)
Non-operating Temperature Range	-4°F (-20°C) to 140°F (60°C)
Operating Humidity Range	5% to 95% (Non-condensing)

Physical Characteristics

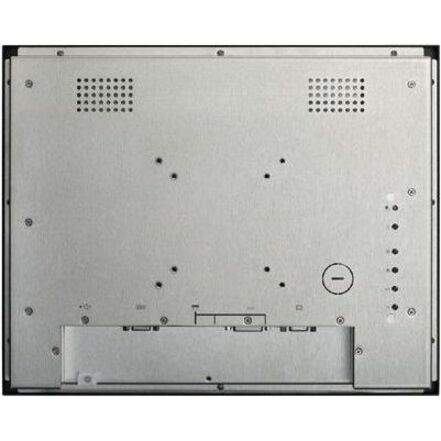

VESA Mount Compatible	Yes
VESA Mount Standard	100 x 100
Height	14.7"
Width	17.7"
Depth	1.6"

Miscellaneous

Package Contents	19" SXGA Industrial Panel Mount Monitor 1 x M cable USB-A(M)/USB-A(M) 180 cm 1 x VGA cable 15P(M) 180 cm 8 x clamper 8 x clamper screw M4_25L 1 x cable clamp 1 x cable clamp screw 1 x cable tie
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
