Advantech IDS-3117N-35SXA1E 17" Class SXGA Open-frame LCD Monitor

Name: Advantech IDS-3117N-35SXA1E 17" Class SXGA Open-frame LCD Monitor
Brand: ADVANTECH
SKU: 7CG286
Price: 396.17 USD
Availability: InStock

ADVANTECH

PCN#

7CG286

MFG#

IDS-3117N-35SXA1E

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$396.17

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

17" Class
Thin Film Transistor (TFT)
LED Backlight
1280 x 1024
16.7 Million Colors
350 Nit
30 ms
DVI
VGA

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 12 lbs.

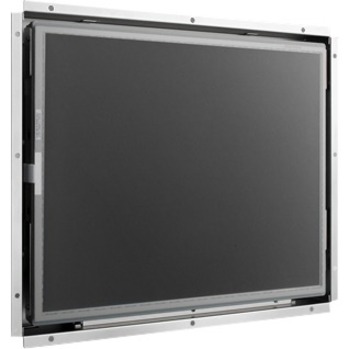

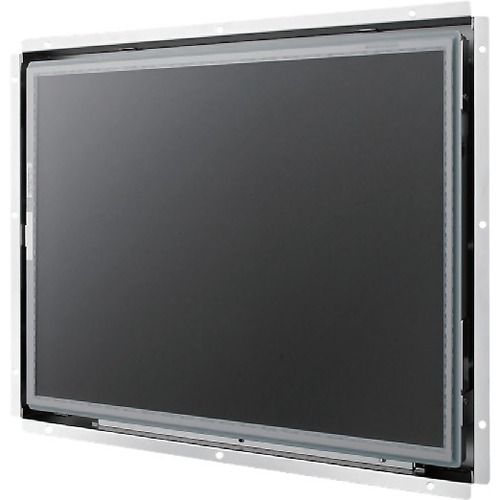

Advantech IDS-3117N-35SXA1E 17" SXGA Open-frame LCD Monitor

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	IDS-3117N-35SXA1E
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Series	IDS-3117
Product Model	IDS-3117N-35SXA1E
Product Name	17" SXGA Industrial Open Frame Monitor
Marketing Information	The Advantech IDS-3117 Open Frame Monitor Series offer ultra slim design supporting a 17" 1280 x 1024 pixels TFT LCD screen, with -20 ~ +60° C wide operating temperature, and optional resistive touchscreen. The series supports rear and VESA mounting and is ideal for different embedded applications.
Packaged Quantity	1
Product Type	Open-frame LCD Monitor

Technical Information

Number of Screens	1
Screen Size Class	17"
Viewable Screen Size	17"
Screen Mode	SXGA
Panel Technology	Thin Film Transistor (TFT)
Response Time	30 ms
Mount Type	Rear Mount
Backlight Technology	LED

Video

Maximum Resolution	1280 x 1024
Color Supported	16.7 Million Colors
Native Contrast Ratio	800:1
Brightness	350 Nit

Interfaces/Ports

DVI	Yes
VGA	Yes

Physical Characteristics

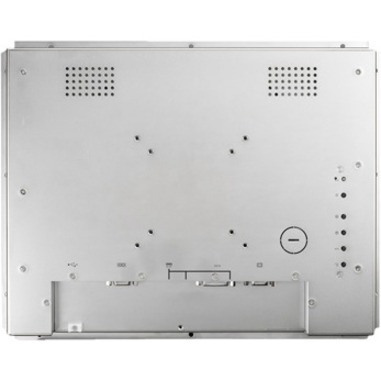

VESA Mount Compatible	Yes
VESA Mount Standard	100 x 100
Height	13.6"
Width	15.7"
Depth	1.3"
Weight (Approximate)	7.61 lb

Miscellaneous

Package Contents	17" SXGA Industrial Open Frame Monitor 1 x M Cable USB-A(M)/USB-A(M) 180CM 1 x VGA cable 15P(M) 1.8 meter 8 x Clamper 8 x Screw of clamper M4_25L 1 x Cable clamp 1 x Screw of cable clamp 1 x Cable tie
Environmentally Friendly	Yes
Environmental Certification	RoHS
Country of Origin	Taiwan

Warranty

Limited Warranty

2 Year
