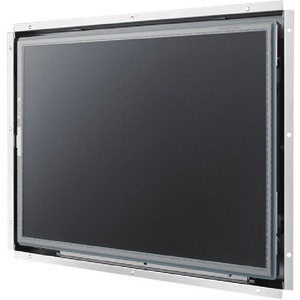

Advantech IDS-3112N-60XGA1E 12" Class Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms

Name: Advantech IDS-3112N-60XGA1E 12" Class Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms
Brand: ADVANTECH
SKU: 7CG282
Price: 350.76 USD
Availability: InStock

ADVANTECH

PCN#

7CG282

MFG#

IDS-3112N-60XGA1E

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$350.76

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

12.1" Viewable
5
wire Resistive
1024 x 768
XGA
16.2 Million Colors
600 Nit
LED Backlight
DVI
USB
VGA
2 Year

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 7 lbs.

Advantech IDS-3112N-60XGA1E 12" Class Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	IDS-3112N-60XGA1E
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Series	IDS-3112
Product Model	IDS-3112N-60XGA1E
Product Name	IDS-3112N-60XGA1E Open Frame LCD Touchscreen Monitor
Marketing Information	The Advantech IDS-3112 Open Frame Monitor Series offer ultra slim design supporting a 12.1" 1024 x 768 and 800 x 600 pixels TFT LCD screen, with -20 ~ 60° C wide operating temperature, and optional resistive touchscreen. The series supports rear and VESA mounting and is ideal for different embedded applications.
Product Type	Open-frame LCD Touchscreen Monitor

Technical Information

Screen Size Class	12"
Viewable Screen Size	12.1"
Screen Mode	XGA
Response Time	16 ms
Aspect Ratio	4:3
Mount Type	Rear Mount
Backlight Technology	LED

Video

Maximum Resolution	1024 x 768
Color Supported	16.2 Million Colors
Native Contrast Ratio	700:1
Brightness	600 Nit

Touchscreen Information

Touchscreen Type

5-wire Resistive

Interfaces/Ports

DVI	Yes
USB	Yes
VGA	Yes
Number of USB Ports	1

Power Description

Operating Power Consumption

36 W

Physical Characteristics

VESA Mount Compatible	Yes
VESA Mount Standard	100 x 100
Height	9.9"
Width	12.6"
Depth	1.2"
Weight (Approximate)	3.48 lb

Miscellaneous

Package Contents	IDS-3112 Open Frame LCD Touchscreen Monitor 1 x M Cable USB-A(M)/USB-A(M) 180CM 1 x VGA cable 15P(M) 180 cm 4 x Clamper 4 x Screw of clamper M4_25L 1 x Cable clamp 1 x Screw of cable clamp 1 x Cable tie
Environmentally Friendly	Yes
Country of Origin	Taiwan

Warranty

Limited Warranty

2 Year
