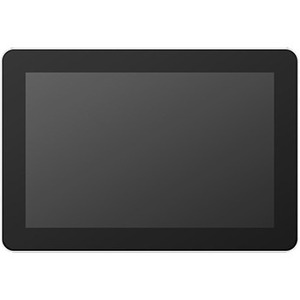

Advantech Silver Line IDP-31101W 10" Class LCD Touchscreen Monitor - 25 ms

Name: Advantech Silver Line IDP-31101W 10" Class LCD Touchscreen Monitor - 25 ms
Brand: ADVANTECH
SKU: 9303AZ
Price: 394.5 USD
Availability: InStock

ADVANTECH

PCN#

9303AZ

MFG#

IDP-31101WP50DVB1G

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$394.50

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

10.1" Viewable
Projected Capacitive
Multi
touch Screen
1280 x 800
WXGA
16.2 Million Colors
500 Nit
LED Backlight
DVI
VGA
Black
2 Year

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 8 lbs.

Advantech Silver Line IDP-31101W 10" Class LCD Touchscreen Monitor - 25 ms

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	IDP-31101WP50DVB1G
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Line	Silver Line
Product Series	IDP-31
Product Model	IDP-31101W
Product Name	Silver Line IDP-31101W Touchscreen LCD Monitor
Marketing Information	IDP-31101W 10.1" industrial ProFlat touch monitor. 100% flat projected capacitive touch with ultra-thin profile, smooth rounded corners and rugged glass fronted for a totally contemporary outlook. 10.1" wide LCD panel with LED backlight for long service life Operating temperature 0 to +40° C; Storage temperature -20 to +60° C Regular brightness 500 CD/m2 Resolution 1280 x 800 Contrast ratio 800 : 1 85°/85°/85°/85° wide view-angle for portrait and landscape mode 10 points projected capacitive touch overlay VGA & DVI I/O interface IP51 rating from the front and side The IDP-31101W is a 10.1" industrial grade ProFlat touch monitor with stylish silver line bezel, that responds to requirements of being durable, robust and reliable. This range of displays marks a significant departure from the traditional industrial unit. With the most obvious change being its contemporary look and feel, the unit also features intuitive 10 point multi-touch P-CAP technology and a fully flat surface that can be easily cleaned with a wet cloth or any suitable cleaning agent. Designed to tackle a wide range of applications, this industrial grade display uses long life durable parts that make it robust enough for the more demanding requirements.
Product Type	LCD Touchscreen Monitor

Technical Information

Screen Size Class	10"
Viewable Screen Size	10.1"
Screen Mode	WXGA
Response Time	25 ms
Backlight Technology	LED

Video

Maximum Resolution	1280 x 800
Color Supported	16.2 Million Colors
Native Contrast Ratio	800:1
Brightness	500 Nit

Touchscreen Information

Touchscreen Type	Projected Capacitive
Multi-touch Screen	Yes

Interfaces/Ports

DVI	Yes
VGA	Yes

Power Description

Operating Power Consumption

15 W

Physical Characteristics

VESA Mount Compatible	Yes
VESA Mount Standard	75 x 75
Product Color	Black
Height	7.1"
Width	10.3"
Depth	1.5"
Weight (Approximate)	3.51 lb

Miscellaneous

Package Contents	Silver Line IDP-31101W Touchscreen LCD Monitor Power Supply (110V-240V) UK/EU/US Power Cord VGA Cable DVI Cable USB Cable for touch functiohnn
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
