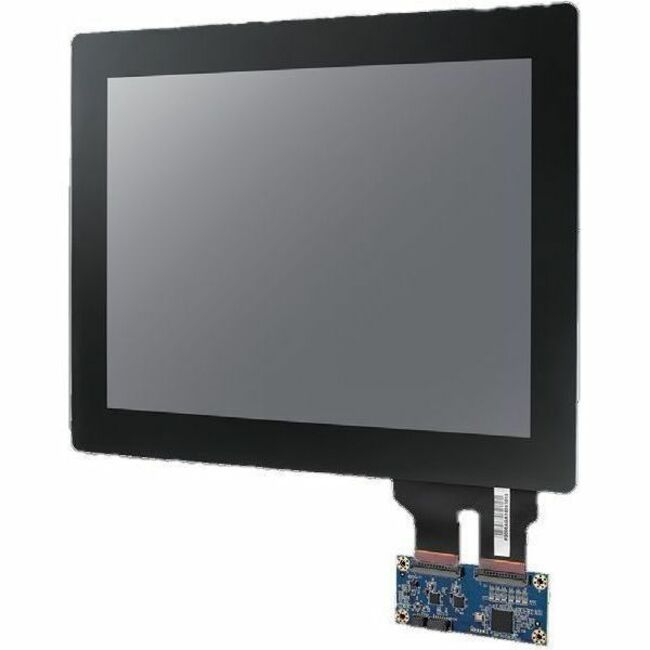

10.4 1024 X 768 LVDS 500 NITS -20 TO 70 C LED 6/8BITS 50K W/ P-CA

Name: 10.4 1024 X 768 LVDS 500 NITS -20 TO 70 C LED 6/8BITS 50K W/ P-CA
Brand: ADVANTECH
SKU: 7CG249
Price: 328.97 USD
Availability: InStock

ADVANTECH

PCN#

7CG249

MFG#

IDK-1110P-50XGA1E

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$328.97

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

10.4" Viewable
Projected Capacitive
5 Point(s) Multi
touch Screen
1024 x 768
XGA
16.2 Million Colors
500 Nit
LED Backlight
USB

Product Condition: New and Factory Fresh

Shipping Weight: 3 lbs.

Advantech IDK-1110P-50XGA1E 10" Class LED Touchscreen Monitor - 25 ms

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	IDK-1110P-50XGA1E
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Series	IDK-1110P
Product Model	IDK-1110P-50XGA1E
Product Name	10.4" XGA Industrial Display Kit With Touch Solution
Marketing Information	Introduction The Advantech IDK-1110P series comes with a 10.4" industrial grade LCD display with P-cap touch. The series is with touch with edge to edge design. IDK-1110P series supports P-cap touch with low power consumption at the maximum of 10 W. IDK-1110P series is ideal for embedded applications which customers have maximum flexibility for mechanical design.
Product Type	LED Touchscreen Monitor

Technical Information

Screen Size Class	10"
Viewable Screen Size	10.4"
Screen Mode	XGA
Response Time	25 ms
Horizontal Viewing Angle	176°
Vertical Viewing Angle	176°
Backlight Technology	LED
Features	Edge-to-Edge Glass Design

Video

Maximum Resolution	1024 x 768
Color Supported	16.2 Million Colors
Native Contrast Ratio	1,000:1
Brightness	500 Nit

Touchscreen Information

Touchscreen Type	Projected Capacitive
Multi-touch Screen	Yes
Number of Simultaneous Touchpoints	5

Interfaces/Ports

USB

Yes

Environmental Conditions

Operating Temperature Range

-4°F (-20°C) to 158°F (70°C)

Power Description

Maximum Power Consumption

10 W

Physical Characteristics

Height	8"
Width	9.9"
Depth	0.4"
Weight (Approximate)	1.10 lb

Miscellaneous

Package Contents	10.4" XGA Industrial Display Kit With Touch Solution 1 x Touch controller A cable USB 4P/1*4P-1.0 180cm
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
