CELLULAR ROUTER CAT4 NAM 1X ETH

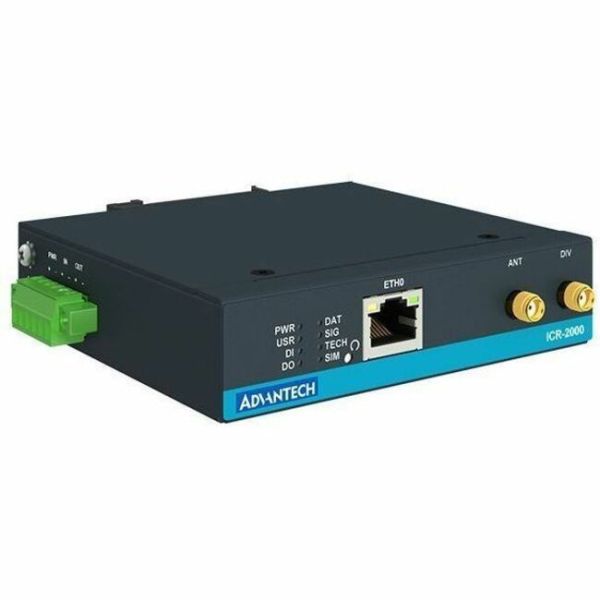

Industrial cellular router ICR-2041 is designed for wireless communication to enable connection of IP devices to a cellular network. Industrial M2M and IoT applications include kiosks, industrial PCs, HMIs, traffic controllers, meters, UPS systems, and much more. The peak downlink data rate for LTE Cat.4 is approximately 150 Mbps. Also in the uplink, LTE Cat.4 provides a peak data rate of 50 Mbps.

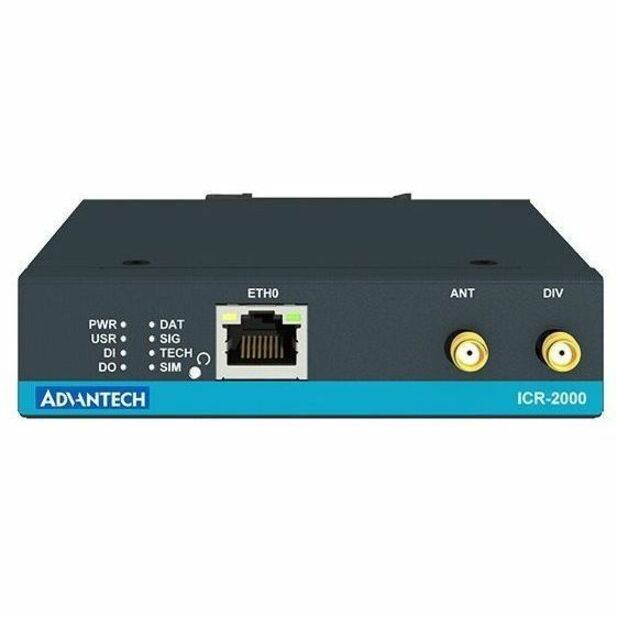

The router is equipped with one Ethernet port (LAN) and with digital I/O connectivity (1x DI, 1x DO). The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status.

Router is based on ICR-OS operation system. Open Linux platform enable wide possibilities of programming customer SW applications in Python, C/C++. Router supports uploading of RouterApps that would extend standard firmware functionalities. Existing app library ready for free download by customer contains already developed software apps to enhance specific router functionality including industrial protocol conversions, support of IoT platforms such as MS Azure, Cumulocity, and a lot more.

The router is easy to manage using WebAccess/DMP a full-featured, cloud-based platform for device management, provisioning, and monitoring. It is ideal for mass deployment and VPN management, enabling secure remote access.

• Cellular
• Ethernet

• LTE 1700
• LTE 1900
• LTE 850
• LTE 700
• LTE 600
• UMTS 1700
• UMTS 1900
• UMTS 850

• LTE Cat 4
• HSPA+
• UMTS
• LTE

• DES
• 3DES
• AES
• RSA
• MD5
• SHA

• NAT
• PAT

• Wall Mountable
• DIN Rail Mountable

• ICR-2041 Entry-Level 4G Router

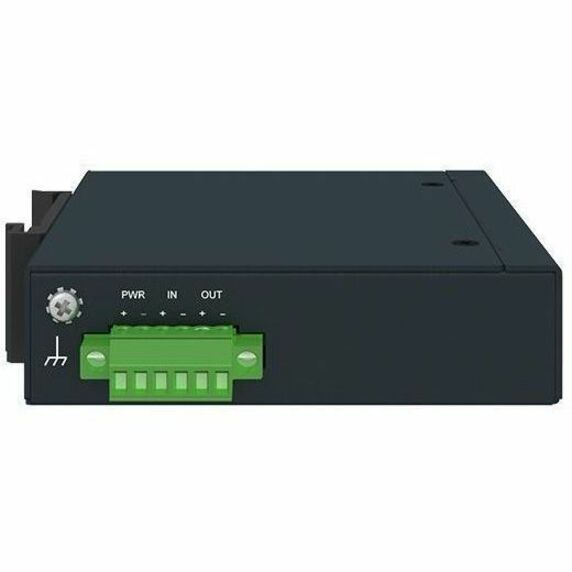

• 6-pin PWR / IO Connector
• Wall Mount Kit
• Quick Start Guide

• FCC part 22H
• FCC part 24E
• FCC part 27
• PTCRB
• EMC EN 61000-6-2
• FCC part 15.B
• ICES-003 Issue 6
• IEC 62368-1
• FCC
• IC
• Verizon
• AT&T
• T-Mobile
• EN 60068-2-27
• EN 60068-2-64
• EN 60068-2-64
• MIL-STD-810G,
• SAE J1455
• EN 60068-2-2
• EN 60068-2-1
• EN 60068-2-14
• EN 60068-2-78
• MIL-STD-810G
• SAE J1455
• GCF
• FCC
• IC
• PTCRB
• Telus
• U.S. Cellular, Rogers

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS) 3
• Waste Electrical and Electronic Equipment Directive (WEEE)
