23.8IN DISP MOD FHD PCT W/O ANTE

Name: 23.8IN DISP MOD FHD PCT W/O ANTE
Brand: ADVANTECH
SKU: 09WZ54
Price: 967.36 USD
Availability: InStock

ADVANTECH

PCN#

09WZ54

MFG#

FPM-D24W-BE

$967.36

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Shipping Weight: 10 lbs.

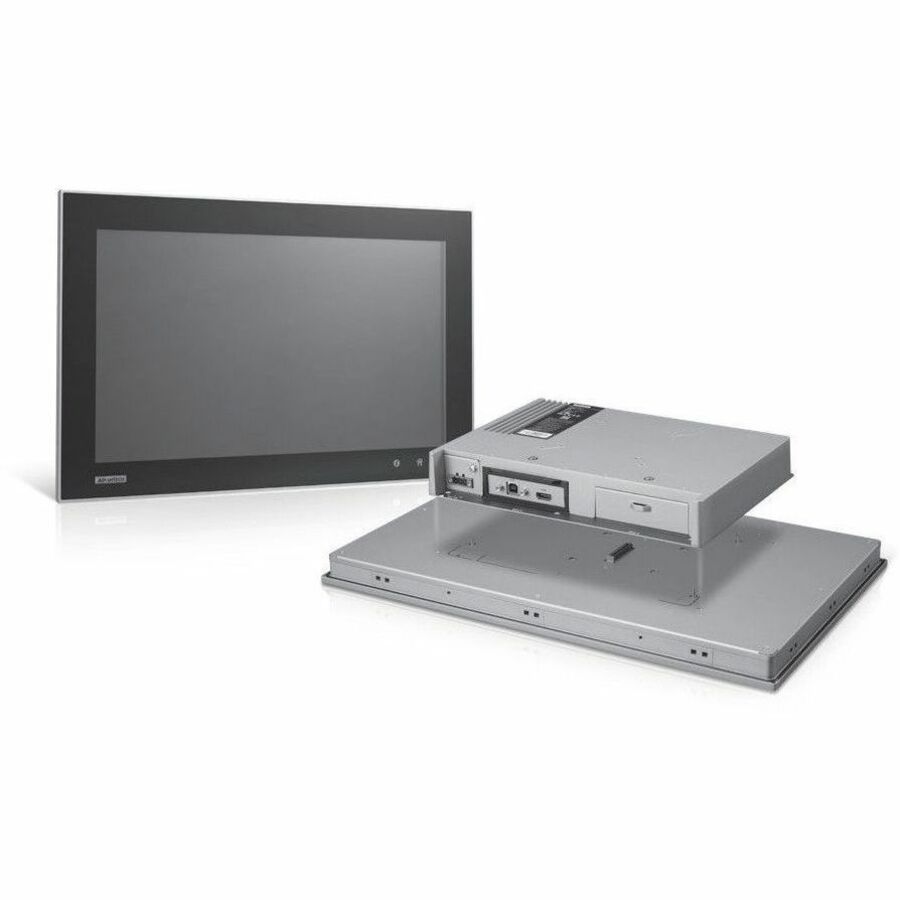

Advantech FPM-D24W-BE 24" Class LED Touchscreen Monitor

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	FPM-D24W-BE
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Series	FPM-7002
Product Model	FPM-D24W-BE
Product Name	FPM-D24W-BE Touchscreen LED Monitor
Marketing Information	The modular industrial monitors, constructed by the powerful combination of Display Modules, Monitor Boxes and I/O Modules, extend the functionality of classical industrial monitors. The flexible modularized design, equipped with the powerful FPM-M700 I/O modules, allows users to change the video interface according to their usage demands. Additionally, unlike traditional industrial touch monitors that can only support controllers in a one-to-one capacity, the FPM series monitors can support two controllers simultaneously. Moreover, with the inclusion of Picture-in-Picture (PiP) technology, users can easily change the display layout and switch between units that need operating. The FPM-7002 model also supports Advantech's iLINK technology, a long-distance data transmission solution. This technology is designed to resolve issues of touch signal degradation. The optional Wi-Fi and NFC features also allow users to flexibly configure the monitor systems.
Product Type	LED Touchscreen Monitor

Technical Information

Screen Size Class	24"
Viewable Screen Size	23.8"
Screen Mode	Full HD
Panel Technology	Thin Film Transistor (TFT)
Horizontal Viewing Angle	178°
Vertical Viewing Angle	178°
Mount Type	Panel Mount Wall Mountable Desk Mountable
Backlight Technology	LED
Features	Anti-glare On-screen Display (OSD) Picture in Picture
Ingress Protection (IP) Rating	IP66

Video

Touchscreen Information

Touchscreen Type

Projected Capacitive

Environmental Conditions

Operating Temperature Range	32°F (0°C) to 131°F (55°C)
Operating Humidity Range	10% to 90% (Non-condensing)

Power Description

Operating Power Consumption	25 W
Maximum Power Consumption	70 W

Physical Characteristics

Miscellaneous

Environmental Compliance

China Restriction of Hazardous Substances (China RoHS)
