19IN SXGA IND. MNTR RESISTIVE TS (USB/RS232) (HDMI/DP/VGA)

Name: 19IN SXGA IND. MNTR RESISTIVE TS (USB/RS232) (HDMI/DP/VGA)
Brand: ADVANTECH
SKU: HK9461
Price: 1205.29 USD
Availability: InStock

ADVANTECH

PCN#

HK9461

MFG#

FPM-719-R9AE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,205.29

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

19" Viewable
5
wire Resistive
1280 x 1024
SXGA
Thin Film Transistor (TFT)
16.7 Million Colors
350 Nit
LED Backlight
HDMI
USB
VGA
DisplayPort

Product Condition: New and Factory Fresh

Shipping Weight: 14 lbs.

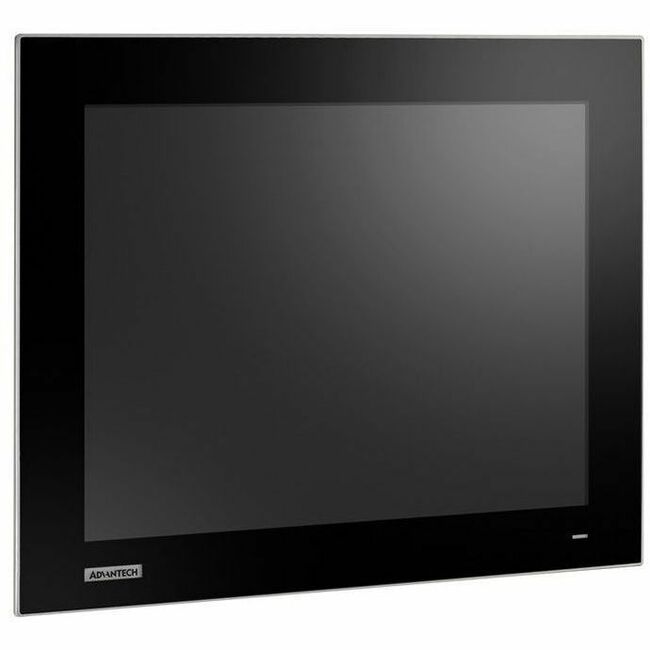

Advantech FPM-719-R9AE 19" Class LED Touchscreen Monitor

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	FPM-719-R9AE
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Series	FPM-700
Product Model	FPM-719-R9AE
Product Name	FPM-719-R9AE Touchscreen LED Monitor
Marketing Information	In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-700 series comprises 15" , 17" and 19" industrial-grade monitors with sleek, simple lines and a true-flat touchscreen. Equipped with durable 5-wire resistive touchscreen and an IP66-rated front bezel, FPM-700 series is specifically designed for industrial applications. Moreover, FPM-700 series support a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and various mount options to make these monitors ideal for factory and machine automation display applications.
Product Type	LED Touchscreen Monitor

Technical Information

Screen Size Class	19"
Viewable Screen Size	19"
Screen Mode	SXGA
Panel Technology	Thin Film Transistor (TFT)
Horizontal Viewing Angle	170°
Vertical Viewing Angle	160°
Mount Type	Stand Mountable Wall Mountable Arm-mountable Panel Mount Desk Mountable Rack-mountable
Backlight Technology	LED
Features	Anti-glare Tempered Glass On-screen Display (OSD)
Glass Hardness	4H
Ingress Protection (IP) Rating	IP66

Video

Maximum Resolution	1280 x 1024
Color Supported	16.7 Million Colors
Native Contrast Ratio	1,000:1
Brightness	350 Nit

Touchscreen Information

Touchscreen Type

5-wire Resistive

Interfaces/Ports

HDMI	Yes
USB	Yes
VGA	Yes
DisplayPort	Yes

Environmental Conditions

Operating Temperature Range

-4°F (-20°C) to 140°F (60°C)

Power Description

Maximum Power Consumption

15.44 W

Physical Characteristics

VESA Mount Compatible	Yes
VESA Mount Standard	75 x 75
Height	15"
Width	17.9"
Depth	1.9"
Weight (Approximate)	13.67 lb

Miscellaneous

Package Contents	FPM-719-R9AE Touchscreen LED Monitor Adapter 1 x Terminal Block 10 x Clamper 8 x Clamper Screw 1 x GND Cable 1 x USB Touch Cable 1 x VGA Cable 7 x HDMI and DP Lockable Kit
Country of Origin	China
Environmental Compliance	Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
