8G + 2SFP + 2VDSL MANAGED REDUNDANT SWITCH

Name: 8G + 2SFP + 2VDSL MANAGED REDUNDANT SWITCH
Brand: ADVANTECH
SKU: 08HP73
Price: 2043.13 USD
Availability: InStock

ADVANTECH

PCN#

08HP73

MFG#

EKI-7712G-2FVI-A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,043.13

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

8 Ports
Manageable
Gigabit Ethernet
10/100/1000Base
TX, 100Base
FX, 1000Base
SX/LX, 1000Base
LHX, 1000Base
XD, 1000Base
ZX, 1000Base
EZX
2 Layer Supported
4 SFP Slots
15 W Power Consumption
Twisted Pair, Optical Fiber
Enclosure, DIN Rail Mountable, Wall Mountable
5 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 1 lbs.

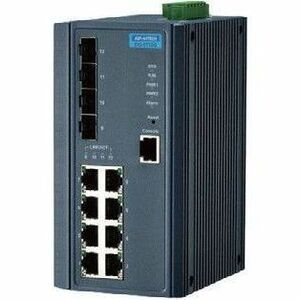

Advantech EKI-7712G-2FVI Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	EKI-7712G-2FVI-A
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Series	EKI-7712G
Product Model	EKI-7712G-2FVI
Product Name	EKI-7712G-2FVI Ethernet Switch
Marketing Information	The EKI-7712G-2FVI and EKI-7708G-2FVI provide 8/4 Gigabit ports and 4 SFP ports with SFP-VDSL transceivers. These switches provide abundant port options, thus providing support for connecting a range of different devices. They also come embedded with Advantech IXM function for fast deployment, thus have a marked impact in saving on engineering time and costs. This series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro redundancy for ultra- high- speed recovery times of 20 seconds with SFP-VDSL modules. These switches also incorporate the latest VDSL2 technology and can be easily adapted to existing applications with existing 2-wire cable (e.g., phone line systems), thus avoiding unnecessary costs associated with rewiring. It can substantially extend Ethernet service on UTP wire with distances up to 3000 m, and even with a rate of 100Mbps for up to 400 m on standard CAT-5e with 2 cables.
Product Type	Ethernet Switch

Technical Information

Features

Broadcast Storm Control
Strict Priority Queuing (SPQ)
Access Control List
DHCP Relay
Remote Monitoring (RMON)
Support Dual Image
IP30

Interfaces/Ports

Total Number of Network Ports	8
Network (RJ-45)	Yes
Port/Expansion Slot Details	8 x Gigabit Ethernet RJ-45 Network Port 4 x Gigabit Ethernet SFP Expansion Slot

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-TX 100Base-FX 1000Base-SX/LX 1000Base-LHX 1000Base-XD 1000Base-ZX 1000Base-EZX
Maximum Data Transfer Rate	128 MB/s

I/O Expansions

Total Number of Expansion Slots	4
Expansion Slot Type	SFP
Number of SFP Slots	4

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ad IEEE 802.3ab IEEE 802.3z IEEE 802.1D IEEE 802.1w IEEE 802.1s IEEE 802.1p IEEE 802.1Q IEEE 802.1x

Management & Protocols

Manageable

Yes

Power Description

Input Voltage	12 V DC 48 V DC
Power Source	DC
Power Consumption	15 W
Plug/Connector Type	Terminal Block

Physical Characteristics

Product Material	Metal
Form Factor	Enclosure DIN Rail Mountable Wall Mountable
Height	6"
Width	3.1"
Depth	4.1"

Miscellaneous

Package Contents	EKI-7712G-2FVI Ethernet Switch 2 x VDSL2 Transceivers
Application/Usage	Network Traffic Industrial Security Server
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
