8G+2G COMBO MANAGED POE+ SWITCH W/ WIDE TEMPERATURE

Name: 8G+2G COMBO MANAGED POE+ SWITCH W/ WIDE TEMPERATURE
Brand: ADVANTECH
SKU: 02HH16
Price: 963.13 USD
Availability: InStock

ADVANTECH

PCN#

02HH16

MFG#

EKI-7710G-2CPI-AU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$963.13

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

8 Ports
Manageable
Gigabit Ethernet
10/100/1000Base
T, 1000Base
X
2 Layer Supported
Modular
2 SFP Slots
12.10 W Power Consumption
Twisted Pair, Optical Fiber
PoE Ports
DIN Rail Mountable, Wall Mountable
5 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 4 lbs.

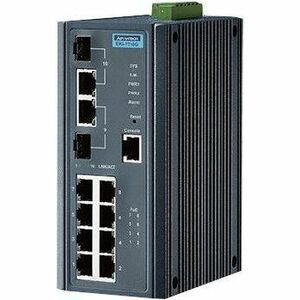

Advantech EKI-7710G-2CPI Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	EKI-7710G-2CPI-AU
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Series	EKI-7710G
Product Model	EKI-7710G-2CPI
Product Name	EKI-7710G-2CPI Ethernet Switch
Product Type	Ethernet Switch

Technical Information

Features

IP30

Interfaces/Ports

Total Number of Network Ports	8
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	8 x 10/100/1000BASE-T Gigabit Ethernet PoE+ Network Port 2 x Gigabit Ethernet TP/SFP Combo Port

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-X
Maximum Data Transfer Rate	125 MB/s

I/O Expansions

Total Number of Expansion Slots	2
Expansion Slot Type	SFP
Number of SFP Slots	2

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.1p IEEE 802.3ad IEEE 802.1x IEEE 802.1D IEEE 802.1s IEEE 802.1w IEEE 802.3at IEEE 802.3af

Management & Protocols

Manageable

Yes

Reliability

MTBF	858835 Hour

Power Description

PoE (RJ-45) Port	Yes
Input Voltage	24 V DC 48 V DC
Power Source	DC PoE+
Power Consumption	12.10 W
Plug/Connector Type	Terminal Block

Physical Characteristics

Product Material	Metal
Form Factor	DIN Rail Mountable Wall Mountable
Height	6"
Width	2.9"
Depth	4.1"
Weight (Approximate)	2.65 lb

Miscellaneous

Certifications & Standards	EMI CE FCC Class A Safety UL 508 EMC EN 61000-4-2 (Level 3) EN 61000-4-3 (Level 3) EN 61000-4-4 (Level 3) EN 61000-4-5 (Level 3) EN 61000-4-6 (Level 3) EN 61000-4-8 (Level 3) Shock IEC 60068-2-27 Freefall IEC 60068-2-32 Vibration IEC 60068-2-6
Country of Origin	Taiwan
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
