Advantech 8GE + 2G Combo Port Managed PoE Ethernet Switch

Name: Advantech 8GE + 2G Combo Port Managed PoE Ethernet Switch
Brand: ADVANTECH
SKU: 09WZ40
Price: 1087.26 USD
Availability: InStock

ADVANTECH

PCN#

09WZ40

MFG#

EKI-7710G-2CP-AE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,087.26

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

10 Ports
Manageable
Gigabit Ethernet
1000Base
X, 10/100/1000Base
TX
2 Layer Supported
12.10 W Power Consumption
120 W PoE Budget
Optical Fiber, Twisted Pair
PoE Ports
Wall Mountable, DIN Rail Mountable, Enclosure
5 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 1 lbs.

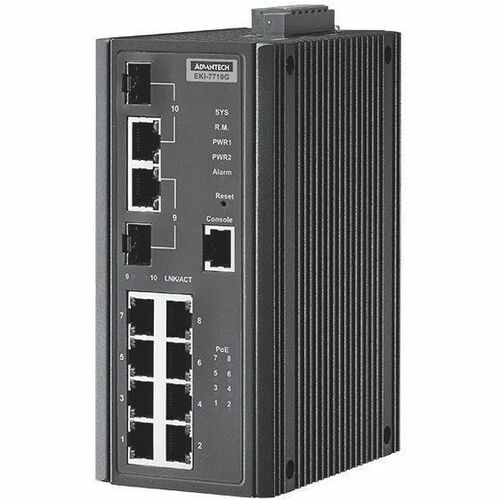

Advantech 8G+2G Port Gigabit Managed Redundant Industrial PoE Switch

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	EKI-7710G-2CP-BE
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Series	EKI-7710G
Product Model	EKI-7710G-2CP
Product Name	8G+2G Port Gigabit Managed Redundant Industrial PoE Switch
Marketing Information	The EKI-7710G-2CP/2CPI support 8 Gigabit PoE ports and 2 Gigabit combo ports. They provide up to 30W per port for high-power-consumption powered devices. They come embedded with Advantech IXM function, which can benefit users with fast deployment and can dramatically save considerably on engineering time and costs. The EKI-7710G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability
Product Type	Ethernet Switch

Technical Information

Features

Broadcast Storm Control
Strict Priority Queuing (SPQ)
Access Control List
Remote Monitoring (RMON)
Support Dual Image
IP30

Interfaces/Ports

Total Number of Network Ports	10
Network (RJ-45)	Yes
Port/Expansion Slot Details	8 x 10/100/1000BASE-T/TX Gigabit Ethernet PoE+ RJ-45 Network Port 2 x 10/100/1000BASE-T/TX Gigabit Ethernet RJ-45/SFP Combo Port

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-X 10/100/1000Base-TX
Maximum Data Transfer Rate	128 MB/s

I/O Expansions

Expansion Slot Type	SFP (mini-GBIC)
Shared SFP Slot	Yes

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3af IEEE 802.3at IEEE 802.1D IEEE 802.1s IEEE 802.1w IEEE 802.1p IEEE 802.3ad IEEE 802.1Q IEEE 802.1ad IEEE 802.1ab IEEE 802.1x

Management & Protocols

Manageable

Yes

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	120 W
Input Voltage	24 V DC 48 V DC
Power Source	DC
Redundant Power Supply Supported	Yes
Power Consumption	12.10 W
Plug/Connector Type	Terminal Block

Physical Characteristics

Product Material	Metal
Form Factor	Wall Mountable DIN Rail Mountable Enclosure
Height	6"
Width	2.9"
Depth	4.1"

Miscellaneous

Application/Usage	Industrial Network Traffic Server
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
