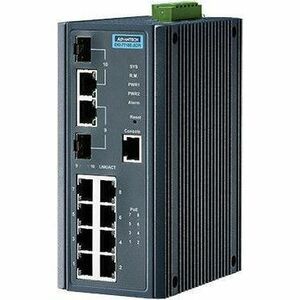

Advantech EKI-7710E-2CPI Ethernet Switch

Name: Advantech EKI-7710E-2CPI Ethernet Switch
Brand: ADVANTECH
SKU: 13BW83
Price: 769.24 USD
Availability: InStock

ADVANTECH

PCN#

13BW83

MFG#

EKI-7710E-2CPI-AU

$769.24

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 4 lbs.

Advantech EKI-7710E-2CPI Ethernet Switch

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	EKI7710E2CPIAU
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Model	EKI-7710E-2CPI
Product Name	EKI-7710E-2CPI Ethernet Switch
Marketing Information	The EKI-7710E-2CP/2CPI support 8 PoE ports and 2 Gigabit combo ports. They can provide up to 30 W per port for high-power-consumption powered devices. They also features Advantech's IXM function, which can benefit users with fast deployment and can save considerably on engineering time and cost. The series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability.
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	10
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	8 x Fast Ethernet PoE+ 2 x Gigabit Ethernet TP/SFP Combo

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Fast Ethernet Gigabit Ethernet
Network Technology	10/100Base-TX 1000Base-X 1000Base-T

I/O Expansions

Total Number of Expansion Slots	2.0
Expansion Slot Type	SFP (mini-GBIC)
Shared SFP Slot	Yes
Number of SFP Slots	2

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.1p IEEE 802.3ad IEEE 802.1x IEEE 802.1D IEEE 802.1s IEEE 802.1w IEEE 802.3af IEEE 802.3at

Management & Protocols

Manageable

Yes

Power Description

Physical Characteristics

Product Material	Metal
Form Factor	DIN Rail Mountable Wall Mountable
Height	6"
Width	2.9"
Depth	4.1"
Weight (Approximate)	2.65 lb

Miscellaneous

Application/Usage	Network
Certifications & Standards	UL60950 UL 508 CE FCC Class A EN 61000-4-2 (Level 3) EN 61000-4-3 (Level 3) EN 61000-4-4 (Level 3) EN 61000-4-5 (Level 3) EN 61000-4-6 (Level 3) EN 61000-4-8 (Level 3) IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Taiwan Restriction of Hazardous Substances (Taiwan RoHS)

Warranty

Limited Warranty

5 Year
