EKI-1521I-SC 1PORT DEVICE SVR WITH SM/SC FIBER AND WT

Name: EKI-1521I-SC 1PORT DEVICE SVR WITH SM/SC FIBER AND WT
Brand: ADVANTECH
SKU: 08HP67
Price: 507.94 USD
Availability: InStock

ADVANTECH

PCN#

08HP67

MFG#

EKI-1521I-SC-A

$507.94

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 2 lbs.

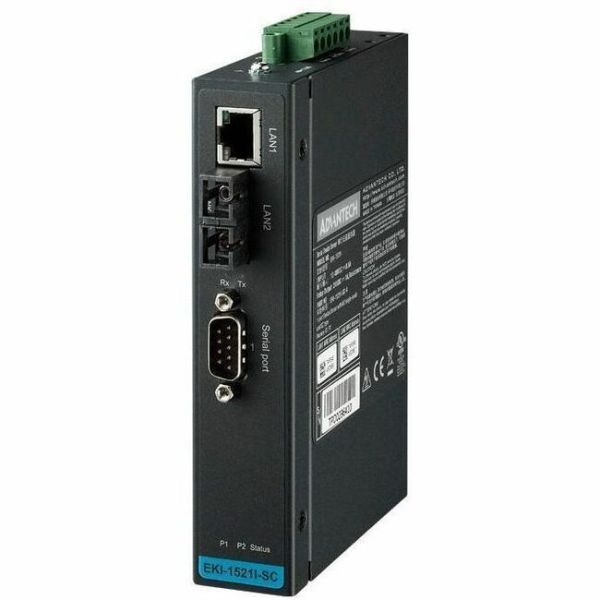

Advantech 1-port Device Server with Fiber and WT

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	EKI-1521I-SC-A
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Model	EKI-1521I-SC
Product Name	1-port Device Server with Fiber and WT
Marketing Information	The EKI-1521I-SC feature one Ethernet port with RJ45 connector and one fiber port with SC connector to provide a redundant network mechanism that guarantees Ethernet network reliability. These serial device servers are designed to connect RS-232/422/485 serial devices such as PLC, meters, sensors, and barcode readers to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network, while also providing various operations such as COM port redirection (Virtual COMport), TCP server, TCP client, and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the servers, guaranteeing compatibility with legacy serial devices and enabling backward-compatibility with existing software. With TCP server, TCP client, and UDP modes, the EKI- 1521 ensure compatibility in network software using a standard network API. Moreover, serial devices can be made communicate with other devices via peer-to-peer, thus eliminating the need for an intermediate host PC and software programming.
Packaged Quantity	1 Pack
Product Type	Device Server

Technical Information

Connectivity Technology	Wired
Data Link Protocols	TCP/IP UDP HTTP ARP

Media & Performance

Media Type Supported

Network & Communication

Ethernet Technology	Fast Ethernet
Network Standard	10/100Base-TX 100Base-FX

Interfaces/Ports

Network (RJ-45)	Yes
Serial Port	Yes
Total Number of Network Ports	2
Number of Network (RJ-45) Ports	1
Number of Serial Ports	1

Environmental Conditions

Minimum Operating Temperature	-40°F (-40°C)
Maximum Operating Temperature	167°F (75°C)

Power Description

Physical Characteristics

Product Material	Metal
Form Factor	DIN Rail Mountable Wall Mountable
Height	5.5"
Width	1.2"
Depth	3.8"
Weight (Approximate)	14.82 oz

Miscellaneous

Certifications & Standards	FCC Part 15 Subpart B (Class A) CE UL cULus Class \| Div.2
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
