1PORT RS 232/422/485 TO 11ABGN WLAN SER DEVICE SVR

Name: 1PORT RS 232/422/485 TO 11ABGN WLAN SER DEVICE SVR
Brand: ADVANTECH
SKU: 06NH93
Price: 333.63 USD
Availability: InStock

ADVANTECH

PCN#

06NH93

MFG#

EKI-1361-CE

$333.63

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 2 lbs.

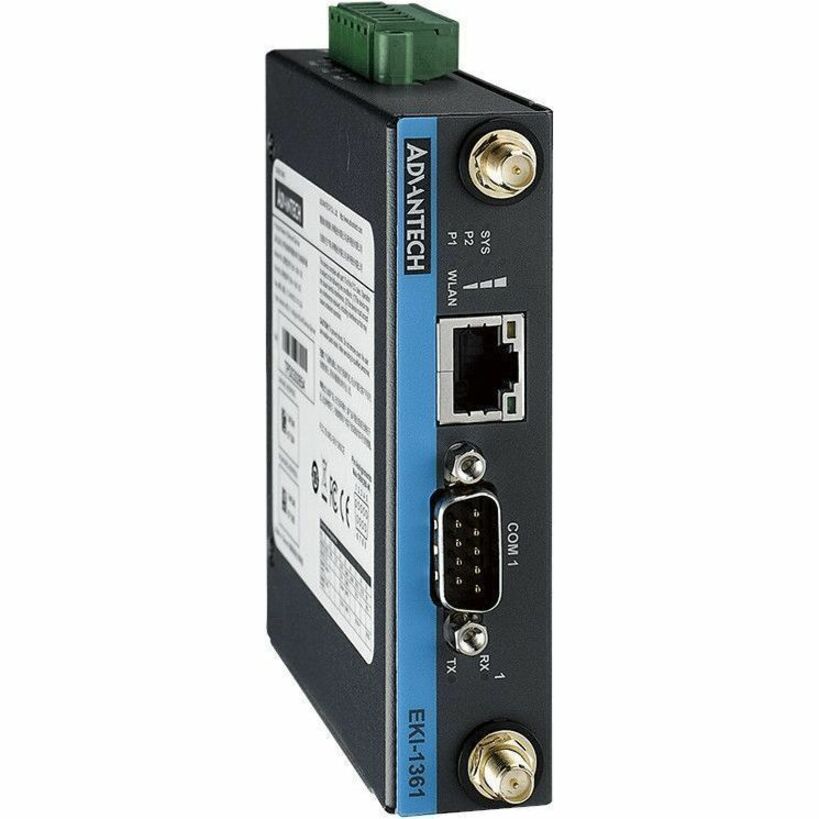

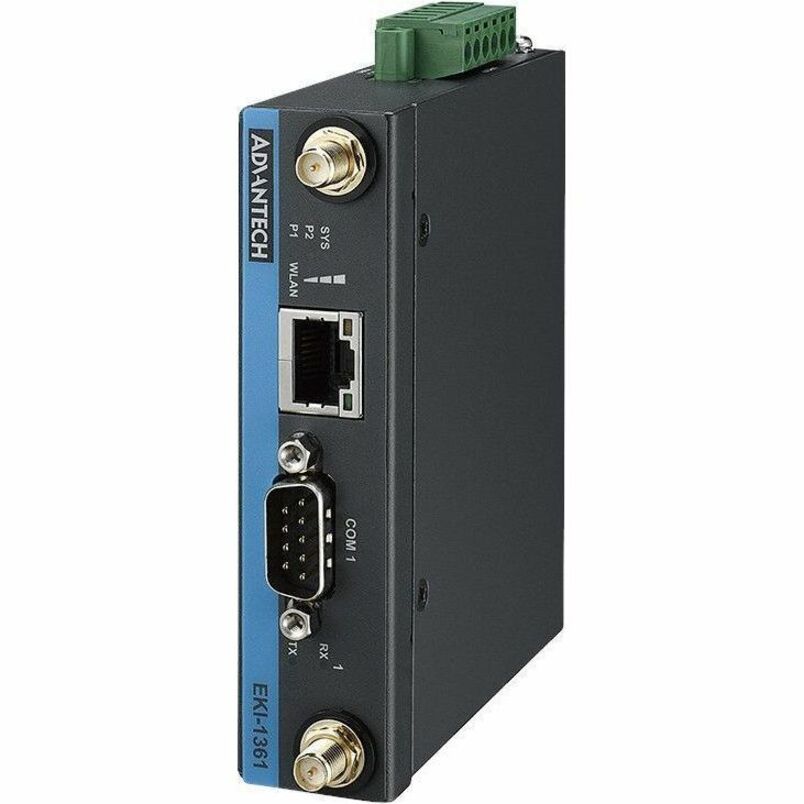

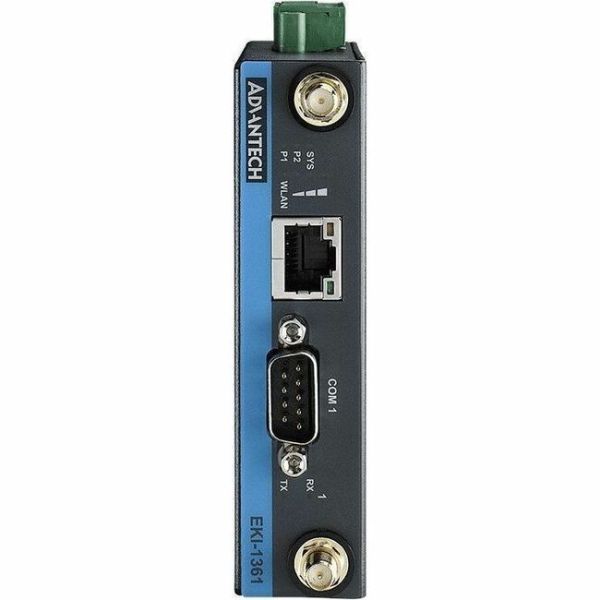

Advantech EKI-1361 Device Server

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	EKI-1361-CE
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Model	EKI-1361
Product Name	EKI-1361 Device Server
Marketing Information	EKI-1361 and EKI-1362 wireless serial device servers bring RS-232/422/485 to wireless LAN or LAN. They allow nearly any device with serial ports to connect and share an WLAN network. EKI-1361 and EKI-1362 provide a quick, simple and cost-effective way to bring the advantages of remote management and data accessibility to thousands of devices that cannot connect to a network. With EKI-1361 and EKI-1362, your existing serial devices can be used with the most popular operating systems on the market. There is no need to write special drivers for specific operating systems. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming. That saves a lot of cost and effort. In addition, you can actively request data or issue commands from the RS-232/422/485 side or wireless LAN side. This data can be sent bilaterally. Thus, the EKI-1361 and EKI-1362 are especially suitable for remote monitoring environments such as security systems, factory automaton, SCADA, transportation and more.
Packaged Quantity	1 Pack
Product Type	Device Server

Technical Information

Media & Performance

Media Type Supported

Twisted Pair

Wireless Specifications

Network & Communication

Ethernet Technology	Fast Ethernet
Network Standard	10/100Base-T

Interfaces/Ports

Network (RJ-45)	Yes
Serial Port	Yes
Total Number of Network Ports	1
Number of Network (RJ-45) Ports	1
Number of Serial Ports	1

Environmental Conditions

Minimum Operating Temperature	-40°F (-40°C)
Maximum Operating Temperature	158°F (70°C)

Power Description

Physical Characteristics

Product Material	Metal
Form Factor	DIN Rail Mountable Wall Mountable
Height	4.1"
Width	1"
Depth	3.7"
Weight (Approximate)	11.11 oz

Miscellaneous

Certifications & Standards	CE FCC Part 15 Subpart B (Class B) RED
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
