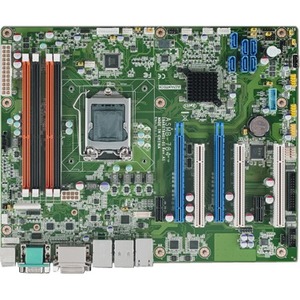

Advantech ASMB-784 Server Motherboard - Intel C226 Chipset - Socket H3 LGA-1150 - ATX

Name: Advantech ASMB-784 Server Motherboard - Intel C226 Chipset - Socket H3 LGA-1150 - ATX
Brand: ADVANTECH
SKU: 3297AG
Price: 556.52 USD
Availability: InStock

ADVANTECH

PCN#

3297AG

MFG#

ASMB-784G2-00A1E

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$556.52

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

32 GB DDR3 SDRAM Maximum RAM
DIMM
4 x Memory Slots
Gigabit Ethernet
6 x SATA Interfaces

Product Condition: New and Factory Fresh

Shipping Weight: 3 lbs.

Advantech ASMB-784 Server Motherboard - Intel C226 Chipset - Socket H3 LGA-1150 - ATX

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	ASMB-784G2-00A1E
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Model	ASMB-784
Product Name	ASMB-784 Server Motherboard
Marketing Information	LGA 1150 Intel® Xeon® E3 V3 ATX Server Board with 2 PCIe x16 slots (x8 link) or 1 PCIe x16 slot (x16 link), 3 PCI, USB 3.0, PCIe Gen III, Quad/Dual LANs Supports LGA 1150 Intel® Xeon® E3-1200 v3 and 4th Generation Core i7/i5/i3 processors One Gen 3.0 PCIe x16 link or two PCIe x16 slots with x8 link, two PCIe x1 and three PCI slots DDR3 1600 MHz ECC/Non-ECC UDIMM up to 32GB Rackmount optimized placement with positive air flow design Support Intel vPro, AMT 9.0, IPMI (optional) and Embedded sofeware APIs and utilities Utilities: Monitoring Software APIs : SMBus / H/W Monitor / Watchdog
Product Type	Server Motherboard

Processor & Chipset

Chipset Manufacturer	Intel
Chipset Model	C226
Total Processor Supported	1
Processor Socket	Socket H3 LGA-1150
Processor Supported	Xeon Core i7 Core i5 Core i3

Memory

Number of Memory Slots	4
Memory Form Factor	DIMM UDIMM
Maximum Memory Supported	32 GB
Memory Technology	DDR3 SDRAM
Memory Speed Supported	1600 MHz 1333 MHz 1066 MHz

I/O Controller

Controller Type	Serial ATA/600
RAID Supported	Yes
RAID Levels	0 1 5 10

Video

Onboard Video	CPU Dependent Video
Graphics Controller Manufacturer	Intel

Network & Communication

Gigabit Ethernet

Yes

I/O Expansions

Total Number of Expansion Slots	10.0
Total Number of PCI Express Slots	4
Number of PCI Express x1 Slots	2
Number of PCI Express x16 Slots	2

Interfaces/Ports

Total Number of USB Ports	4
Number of USB 3.0 Ports	2
VGA	Yes
DVI	Yes

Onboard Interfaces

Number of SATA Interfaces	6
Total Number of Onboard USB Ports	9
Number of Onboard USB 3.0 Ports	2
Onboard S/PDIF Header	Yes

Physical Characteristics

Form Factor	ATX
Width	9.6"
Depth	12"
Weight (Approximate)	1.76 lb

Miscellaneous

Package Contents

ASMB-784 Server Motherboard
1 x Driver CD
1 x Startup Manual
2 x SATA Data Cables
2 x SATA Power Cables
1 x I/O Shield
