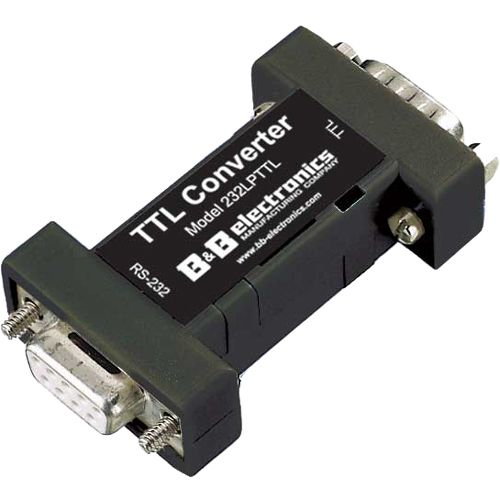

B+B SmartWorx Serial Data Transfer Adapter

Name: B+B SmartWorx Serial Data Transfer Adapter
Brand: ADVANTECH
SKU: 2W5135
Price: 73.04 USD
Availability: InStock

ADVANTECH

PCN#

2W5135

MFG#

232LPTTL33

$73.04

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $23.99

1-Year $17.99

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

B+B SmartWorx Serial Data Transfer Adapter

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	232LPTTL33
Manufacturer Website Address	http://www.advantech.com
Brand Name	B+B SmartWorx
Product Model	232LPTTL33
Product Name	Serial Data Transfer Adapter
Marketing Information	Model 232LPTTL converts RS-232 to 5VDC TTL/CMOS compatible levels. Model 232LPTTL33 converts RS-232 to 3.3VDC TTL/CMOS compatible levels. Two channels are used to convert from RS-232 to TTL/CMOS signals and two channels are used to convert from TTL/CMOS signals to RS-232. These converters support TD, RD, RTS, and CTS. DB9S female connector on the RS-232 side. DB9P male connector on the TTL/CMOS side. This unit is powered from the RS-232 data and handshake lines, whether the lines are high or low.
Product Type	Data Transfer Adapter

Technical Information

Adapter Type	Serial
Connector Type on First End	DB-9 RS-232 Serial - Female
Connector on First End Details	1 x 9-pin DB-9 RS-232 Serial Female
Connector Type on Second End	DB-9 RS-422 Serial - Male
Connector on Second End Details	1 x 9-pin DB-9 RS-422 Serial Male

Miscellaneous

Certifications & Standards	CE EN 55022 EN 61000-6-1 EN 61000 (-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11)
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
